Front Grille Replacement (4-Door)

Front Grille Replacement

4-door - '09 Model

NOTE: Take care not to scratch the bumper and the grille.

1. Remove the front bumper. Service and Repair

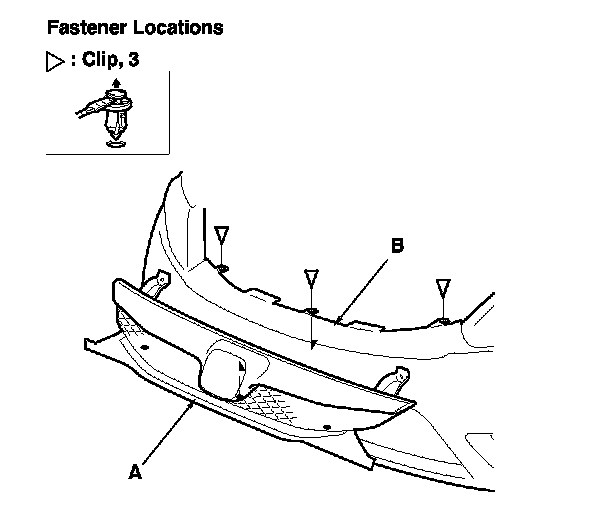

2. Remove the clips, then remove the front grille (A) from the front bumper (B).

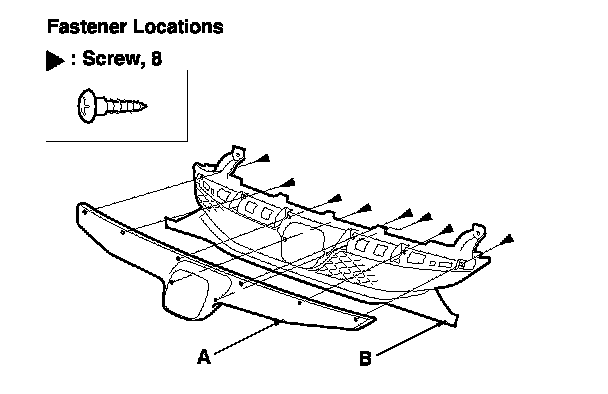

3. Remove the screws, then separate the front grille molding (A) and the front grille base (B).

4. Replace the emblem, if necessary. Emblem/Sticker Replacement (2-Door)

5. Install the grille in the reverse order of removal.
