Trunk / Liftgate Release Lever: Service and Repair

Trunk Lid Opener/Fuel Fill Door Opener Replacement

Special Tools Required

- KTC trim tool set SOJATP2014*

NOTE: Use the appropriate tool from the KTC trim tool set to avoid damage when removing components.

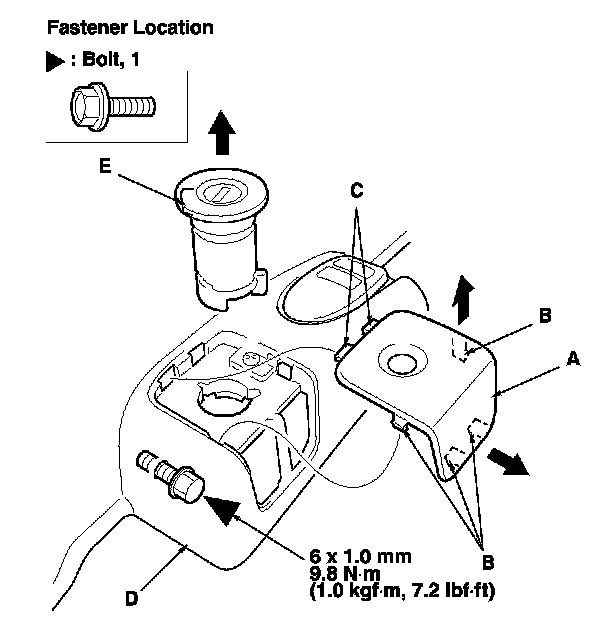

1. Pry out the bottom edge of the front side cap (A) at the notch with the appropriate trim tool to detach the hooks (B), and release the hooks (C), then remove the cap from the front door sill trim (D).

2. Remove the opener lock cylinder (E), and loosen the bolt.

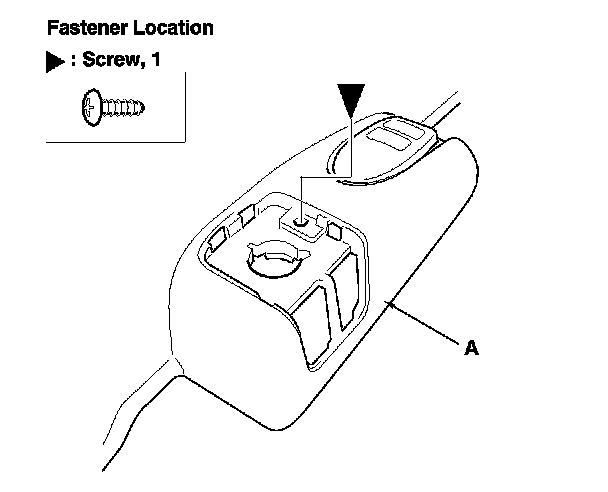

3. Remove the screw securing the front door sill trim (A) and trunk lid open/fuel fill door opener.

4. Remove the front door sill trim, 2-door, Interior Trim Removal/Installation - Door Sill Area (2-Door) 4-door. Interior Trim Removal/Installation - Front Door Sill Area (4-Door)






5. Remove the bolt, then remove the trunk lid opener/fuel fill door opener (A) from the bolt (B).

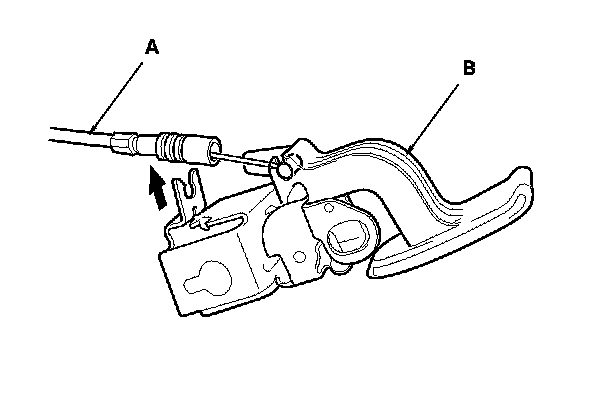

6. Disconnect the trunk lid opener/fuel fill door opener cable (A), then remove the opener (B). Take care not to kink the cable.

7. Install the opener in the reverse order of removal, and note these items:
- Make sure the opener cable is connected properly.

- Make sure the trunk lid and the fuel fill door open properly and lock securely.

- If the trunk lid or the fuel fill door does not open properly, adjust the positions of the cable end on the opener.
