Rear Door: Locations




Doors Component Location Index

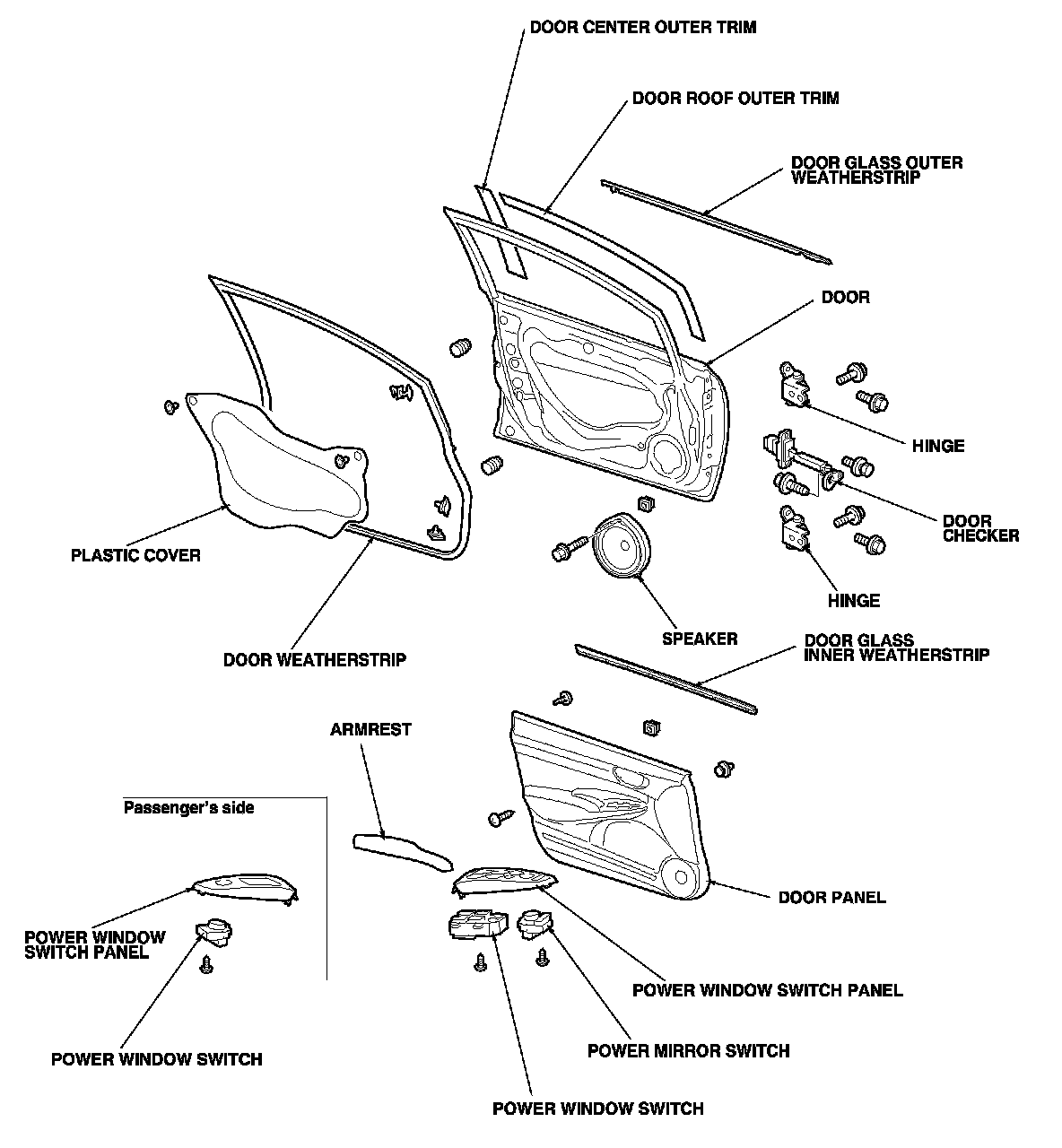

4-door Front Door

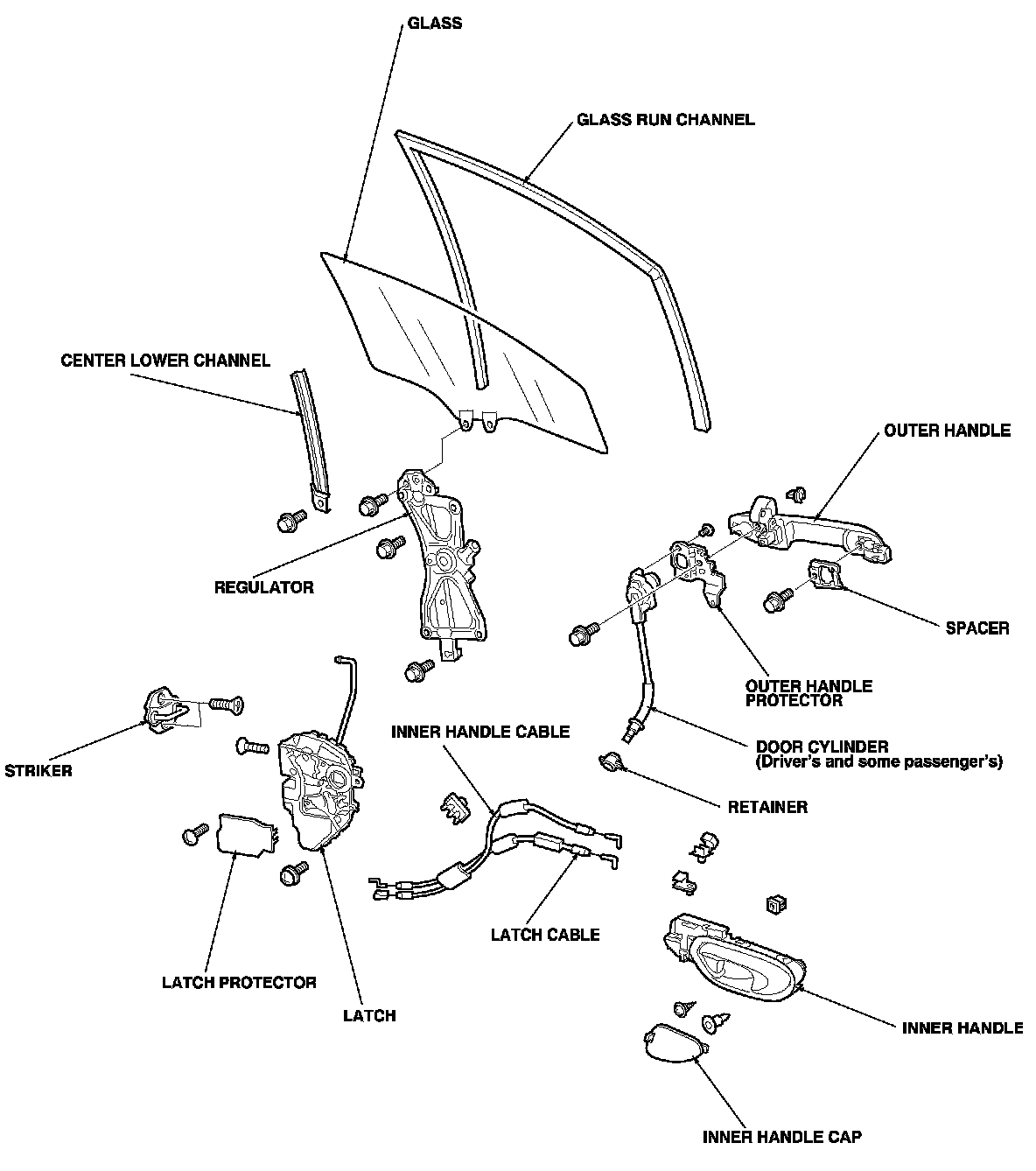

4-door Front Door (cont'd)

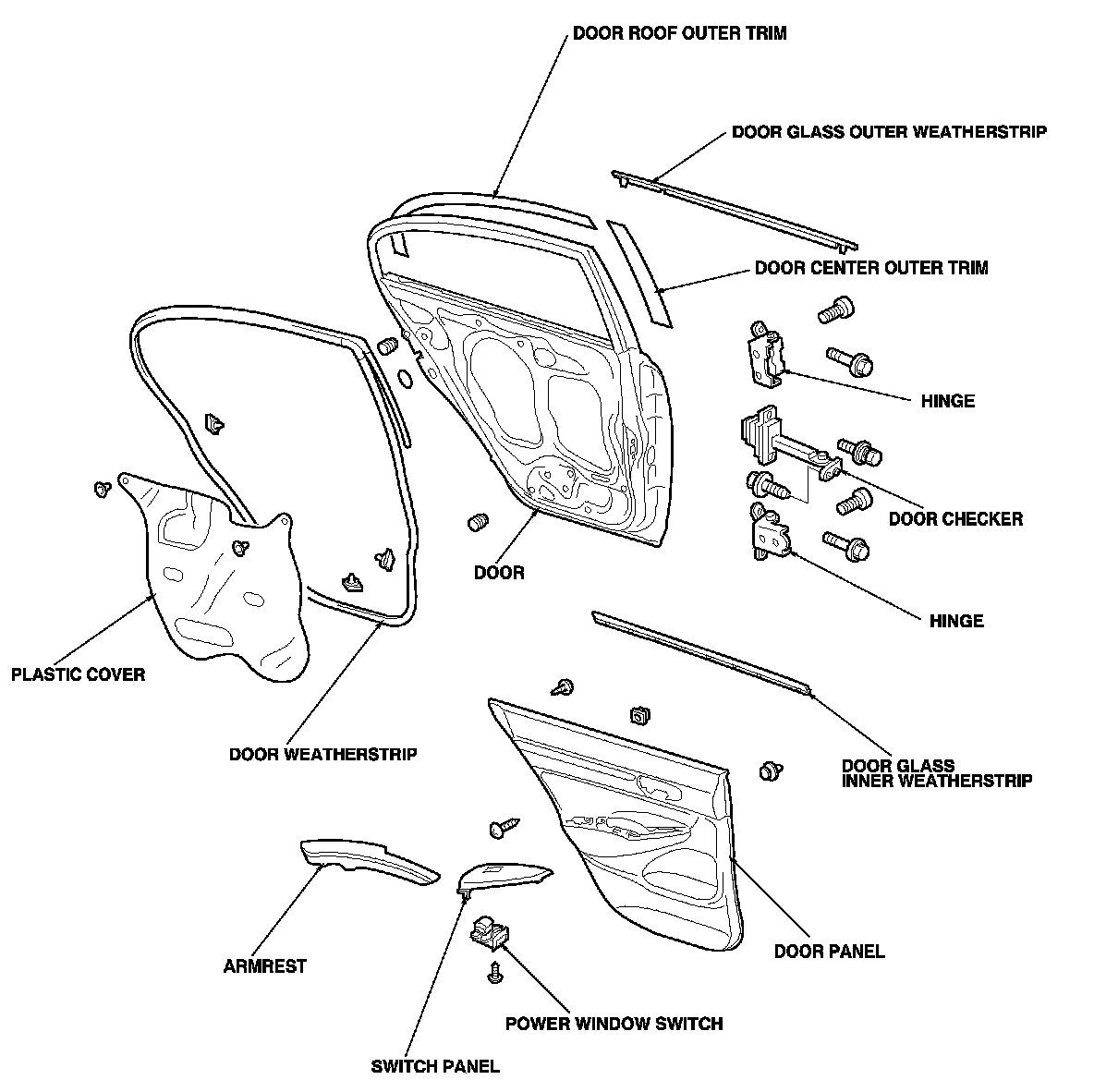

4-door Rear Door





4-door Rear Door (cont'd)
