Home >> Honda >> 2009 >> Civic Si L4-2.0L >> Repair and Diagnosis >> Body and Frame >> Doors, Hood and Trunk >> Doors >> Front Door >> Locations

Front Door: Locations

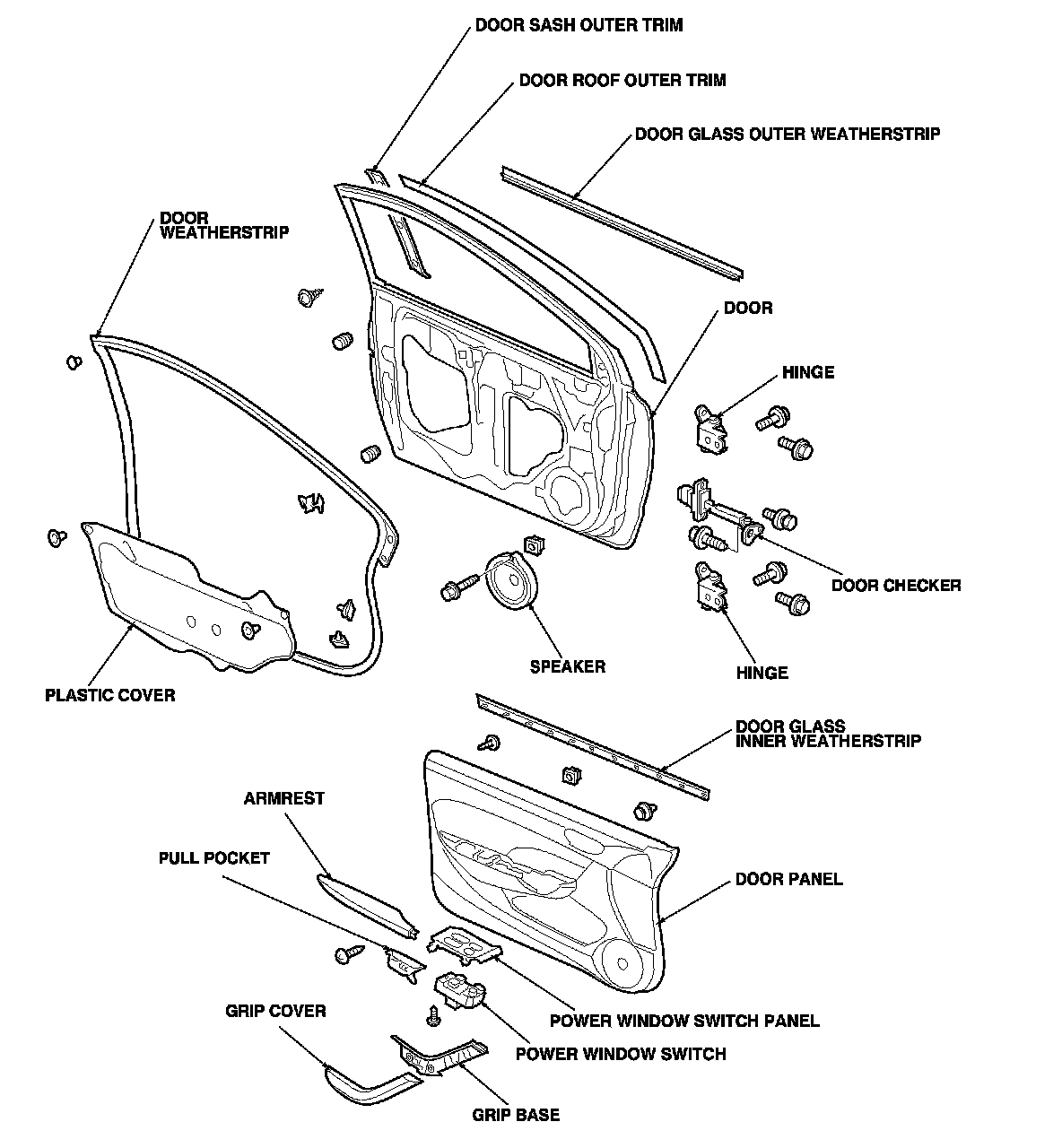

Doors Component Location Index

2-door

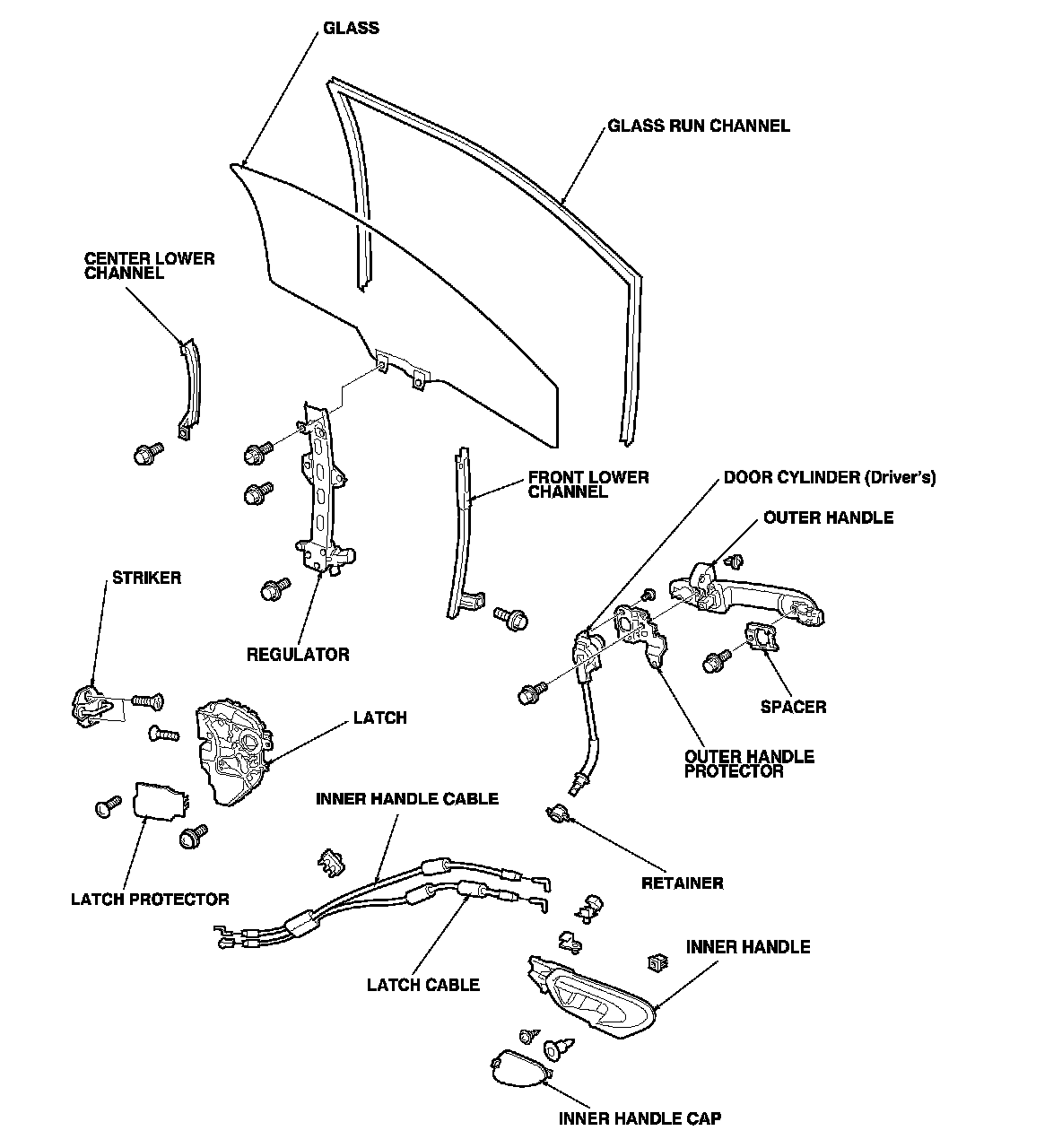

2-door (cont'd)
