Component Tests and General Diagnostics

Navigation System Voice Control Switch Test

1. Remove the voice control switch. Navigation Voice Control Switch Replacement (With Navigation)

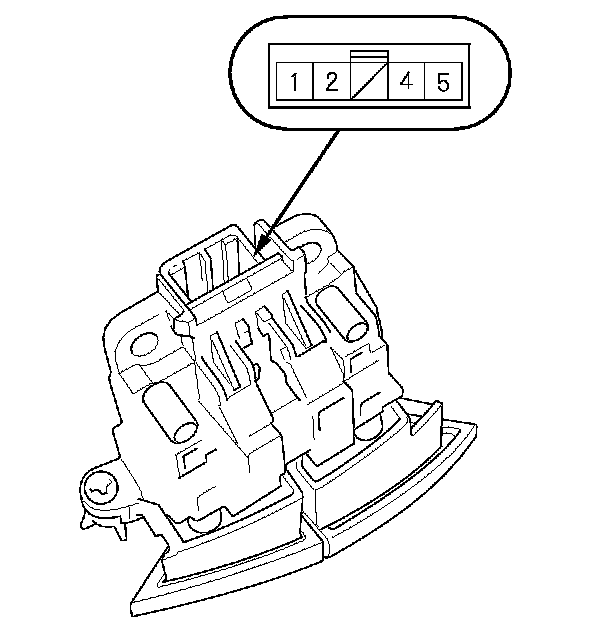

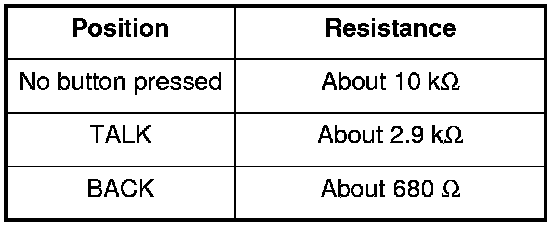

2. Measure the resistance between terminals No. 2 and No. 4 in each switch position according to the table.





3. If the resistance is not as specified, replace the voice control switch. Navigation Voice Control Switch Replacement (With Navigation)
