HFL Switch Test

1. Remove the HFL-voice control switch. Service and Repair

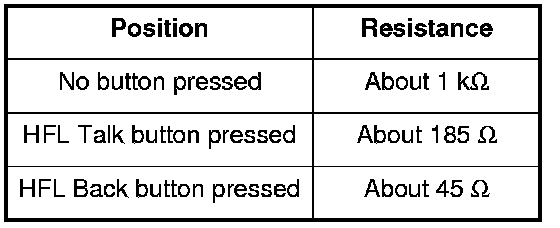

2. Measure resistance between the terminals No. 3 and No. 4 in each switch position according to the table.

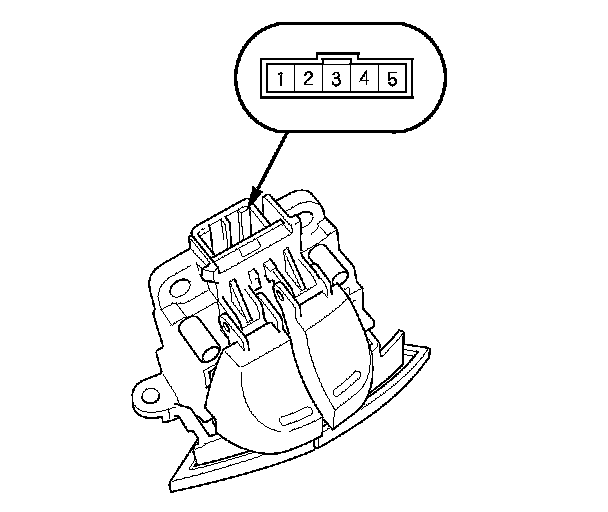

HFL Switch





3. If the resistance is not as specified, replace the HFL-voice control switch.
