Immobilizer System Symptom Troubleshooting




Immobilizer System Symptom Troubleshooting

1. Troubleshoot the immobilizer system by the order of the priority shown:

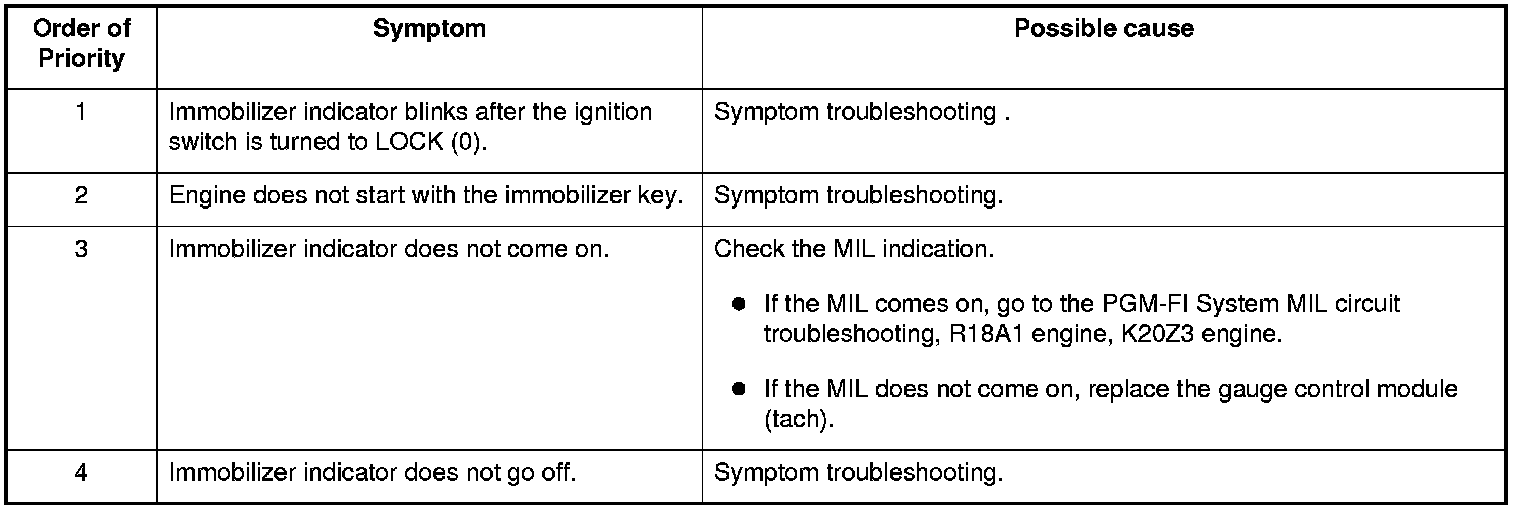

Symptom Chart:
