Immobilizer System Check

Immobilizer System Check

1. Connect the HDS to the data link connector.

2. Turn the ignition switch to ON (II).

3. Monitor the SYSTEM CHECK in the IMMOBILIZER INFO with the HDS.

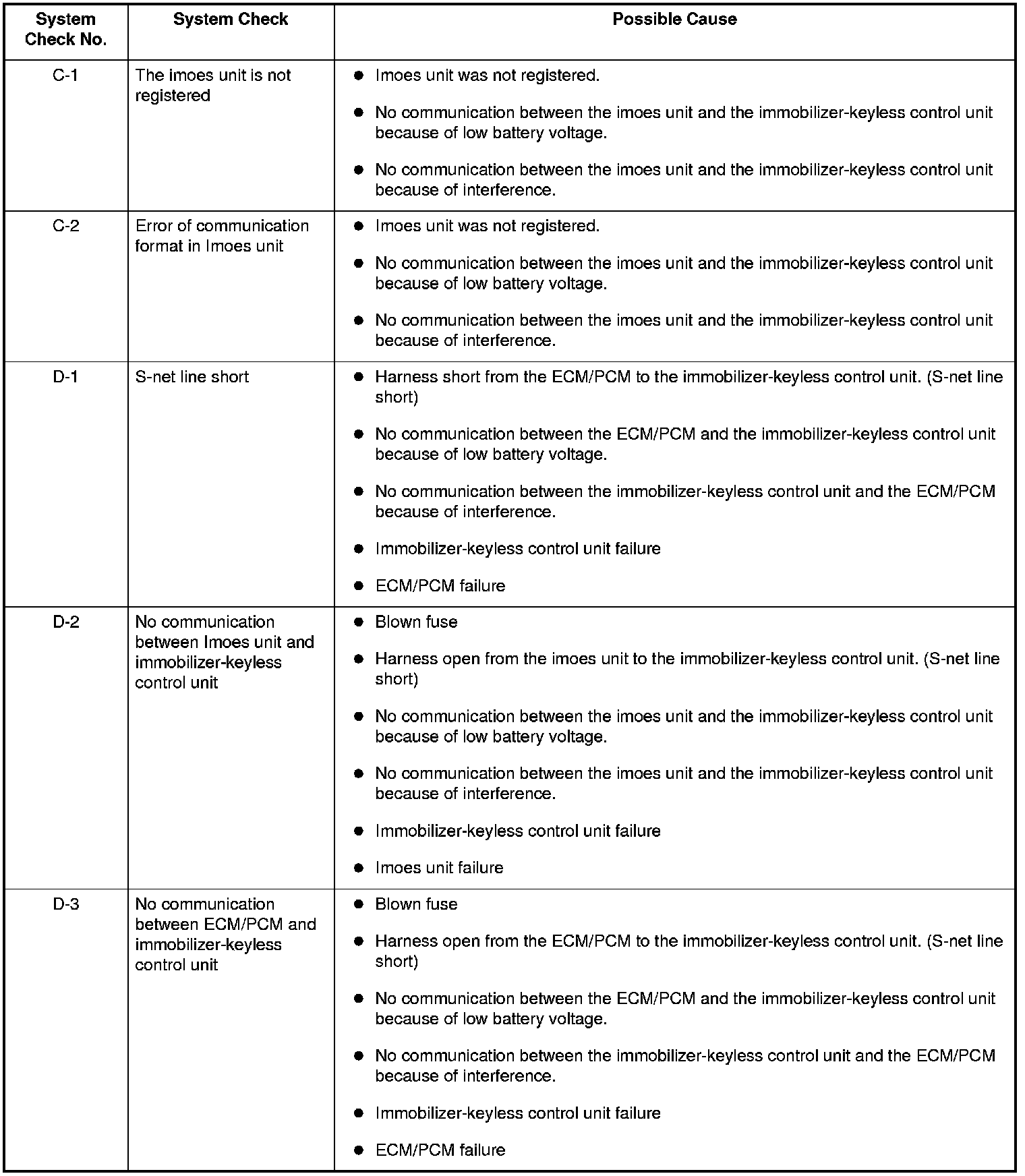

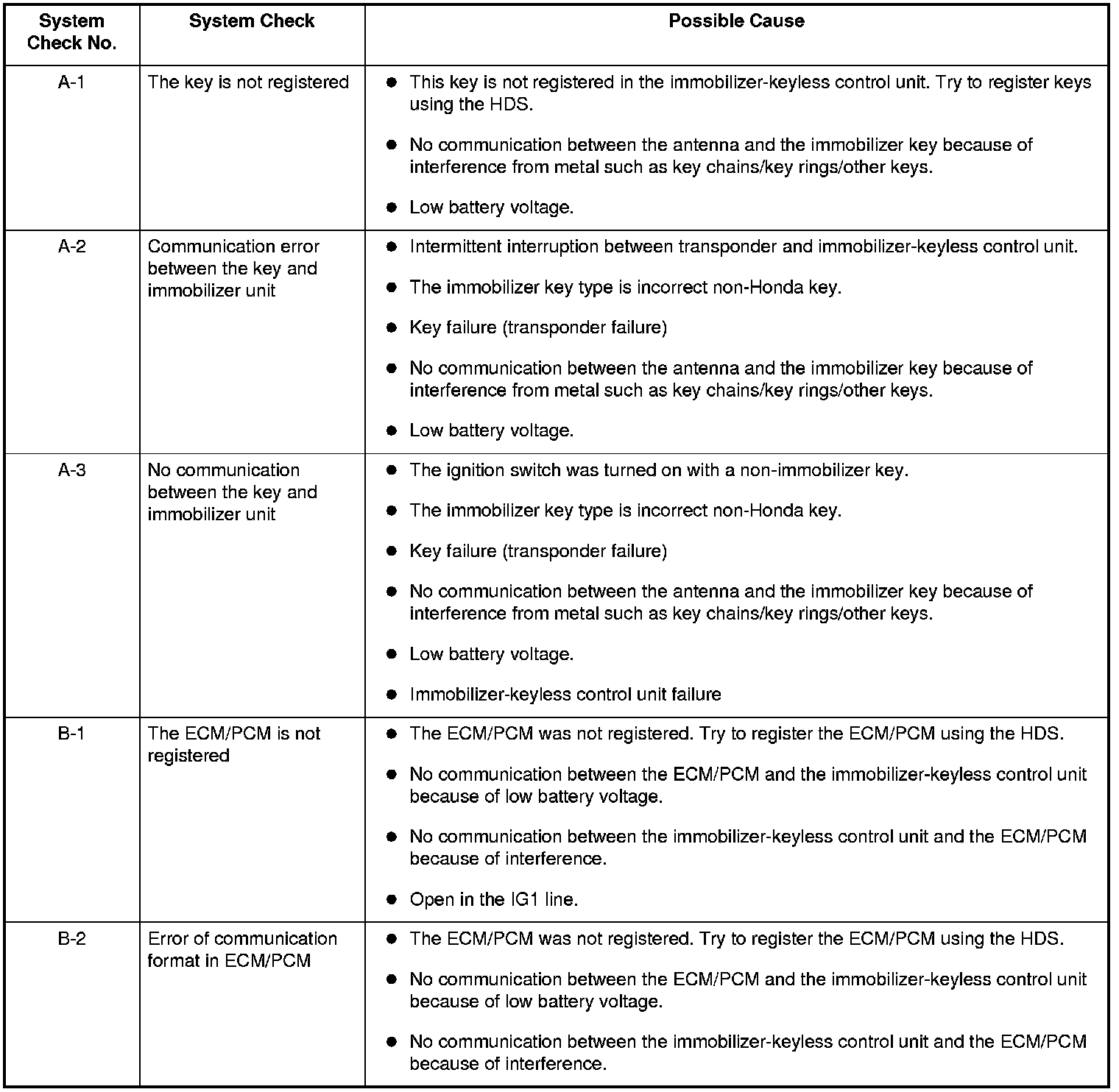

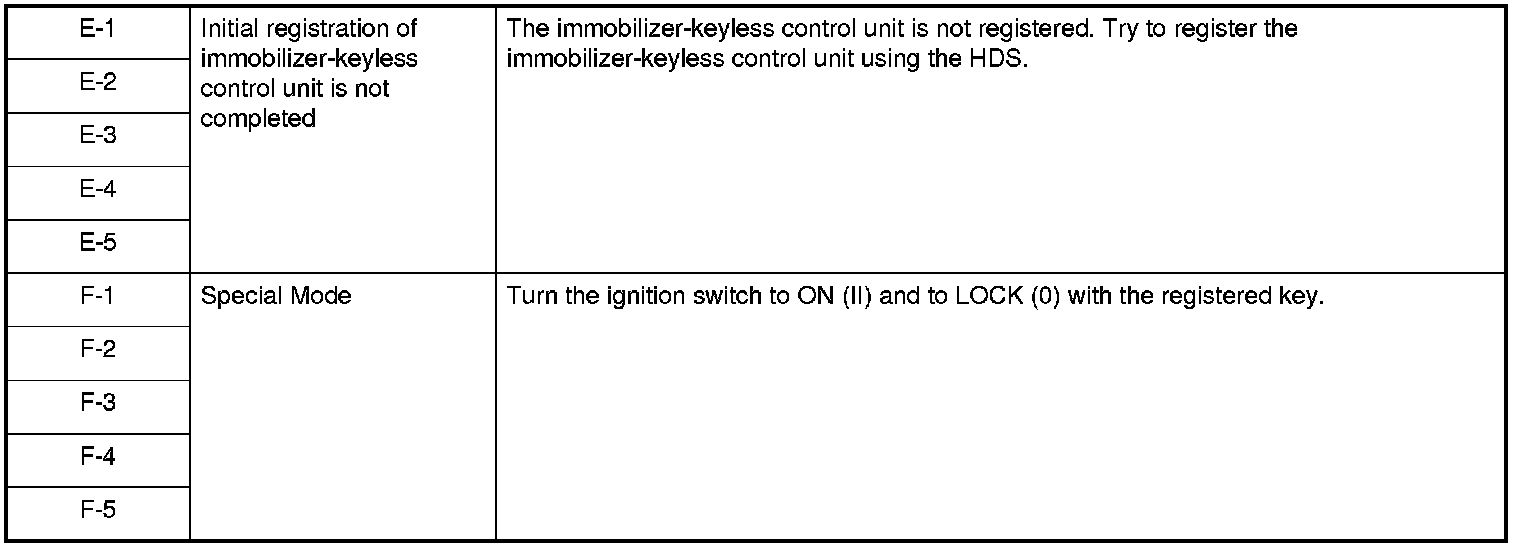

4. If the HDS displays the NORMAL N-1, the immobilizer system is OK. At this time, refer to STATUS LOG. If the HDS displays any other messages, check as follows:
