DTC P2649: Rocker Arm Oil Control Solenoid Circuit High Voltage (Engine Type: K20Z3)






General Description

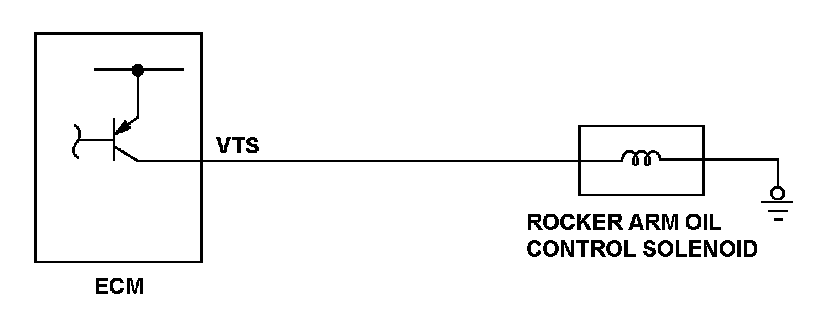

The VTEC system activates the rocker arm oil control solenoid by command from the engine control module (ECM), and it charges/discharges the hydraulic circuit of the VTEC mechanism that switches valve timing between low and high. If the return signal is ON (high) when the ECM outputs the OFF (low) signal to the rocker arm oil control solenoid, the ECM detects a malfunction and a DTC is stored.

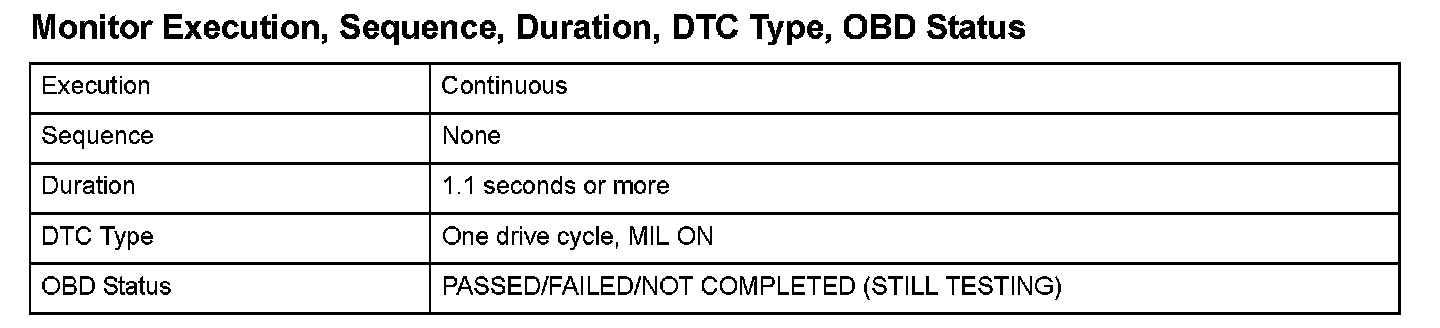

Monitor Execution, Sequence, Duration, DTC Type, OBD Status

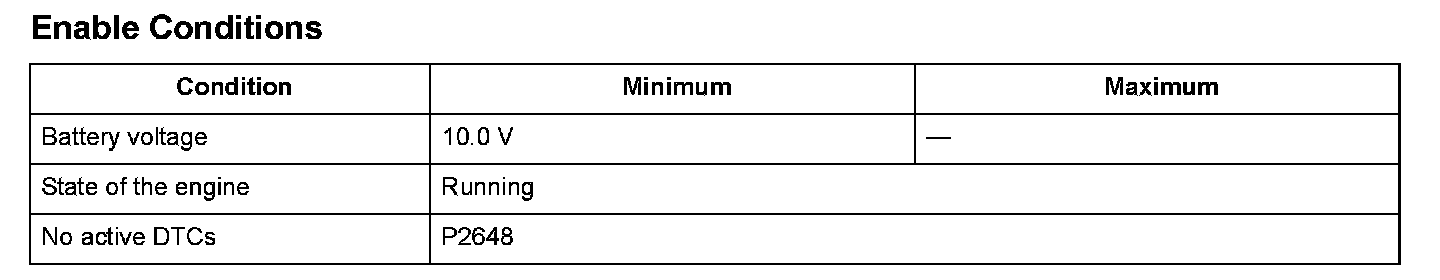

Enable Conditions






Malfunction Threshold
The return signal is ON (high) for at least 1.1 seconds when the ECM outputs the OFF (low) signal to the rocker arm oil control solenoid.

Driving Pattern
Start the engine, and let it idle for at least 7 seconds.

Diagnosis Details

Conditions for illuminating the MIL
When a malfunction is detected, the MIL comes on and the DTC and the freeze frame data are stored in the ECM memory.

Conditions for clearing the MIL
The MIL will be cleared if the malfunction does not recur during three consecutive trips in which the diagnostic runs. The MIL, the DTC, and the freeze frame data can be cleared by using the scan tool Clear command or by disconnecting the battery.
