DTC P0365: Camshaft Position (CMP) Sensor B No Signal (Engine Type: K20Z3)






General Description

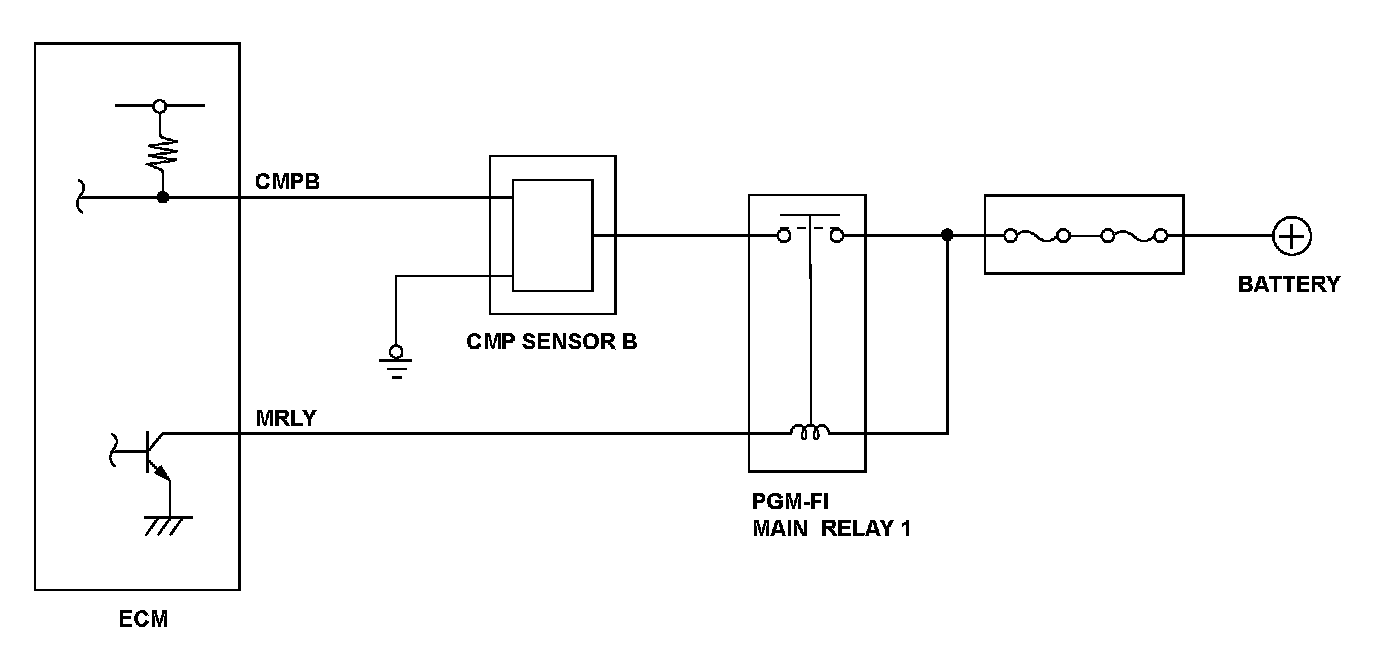

Camshaft position (CMP) sensor B consists of a rotor and a semiconductor that detects rotor position. When the rotor turns after starting the engine, the changes of magnetic flux in the semiconductor are converted into pulsing signals to the engine control module (ECM). CMP sensor B detects the top dead center of each cylinder for fuel injection timing.
If no CMP sensor B pulsing signals are detected, a malfunction is detected and a DTC is stored.

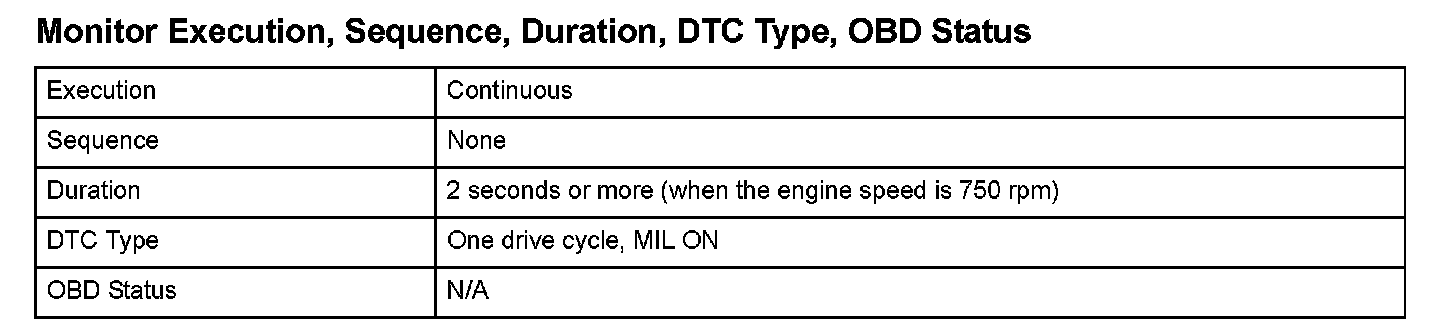

Monitor Execution, Sequence, Duration, DTC Type, OBD Status

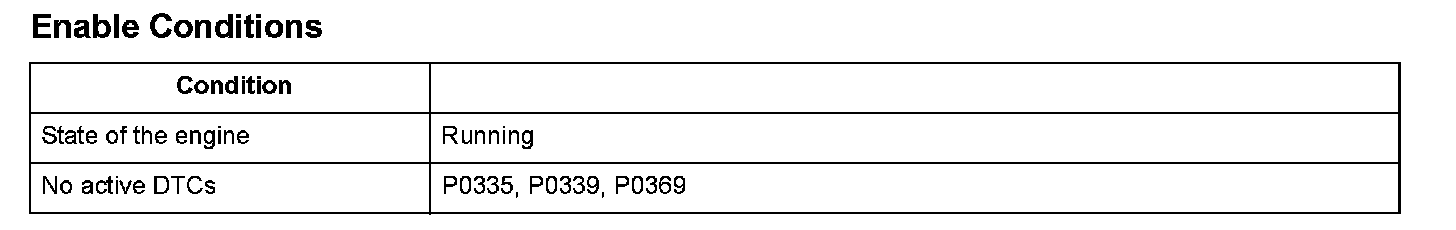

Enable Conditions






Malfunction Threshold
No CMP sensor B pulsing signals are detected at least 50 times.

Diagnosis Details

Conditions for illuminating the MIL
When a malfunction is detected, the MIL comes on and the DTC and the freeze frame data are stored in the ECM memory.

Conditions for clearing the MIL
The MIL will be cleared if the malfunction does not recur during three consecutive trips in which the diagnostic runs.
The MIL, the DTC, and the freeze frame data can be cleared by using the scan tool Clear command or by disconnecting the battery.
