DTC P0344: Camshaft Position (CMP) Sensor A Circuit Intermittent Interruption (Engine Type: K20Z3)






General Description
Camshaft position (CMP) sensor A detects the intake camshaft timing and sends pulsing signals to the engine control module (ECM). The ECM determines the advance or the retard of the camshaft timing according to the signals from the crankshaft position (CKP) sensor and CMP sensor A. If the number of pulsing signals from CMP sensor A during intervals between the CKP standard pulses is more or less than the proper number, a malfunction is detected and a DTC is stored.

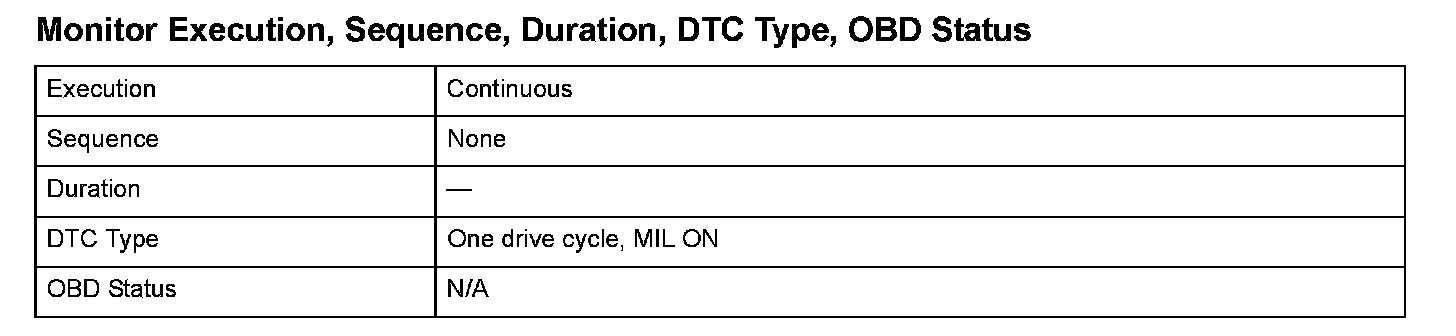

Monitor Execution, Sequence, Duration, DTC Type, OBD Status

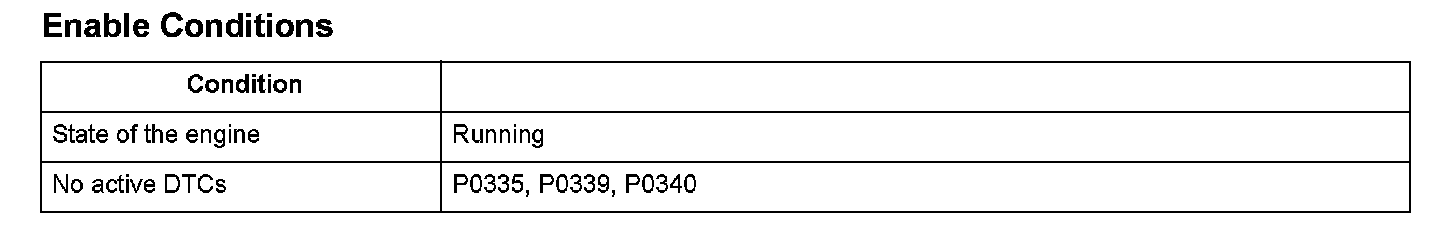

Enable Conditions






Malfunction Threshold
More or less than two CMP sensor A pulses are detected during intervals between the CKP standard pulses. This condition occurs at least 30 times.

Diagnosis Details

Conditions for illuminating the MIL
When a malfunction is detected, the MIL comes on and the DTC and the freeze frame data are stored in the ECM memory.

Conditions for clearing the MIL
The MIL will be cleared if the malfunction does not recur during three consecutive trips in which the diagnostic runs.
The MIL, the DTC, and the freeze frame data can be cleared by using the scan tool Clear command or by disconnecting the battery.
