DTC P0117: Engine Coolant Temperature (ECT) Sensor 1 Circuit Low Voltage






General Description

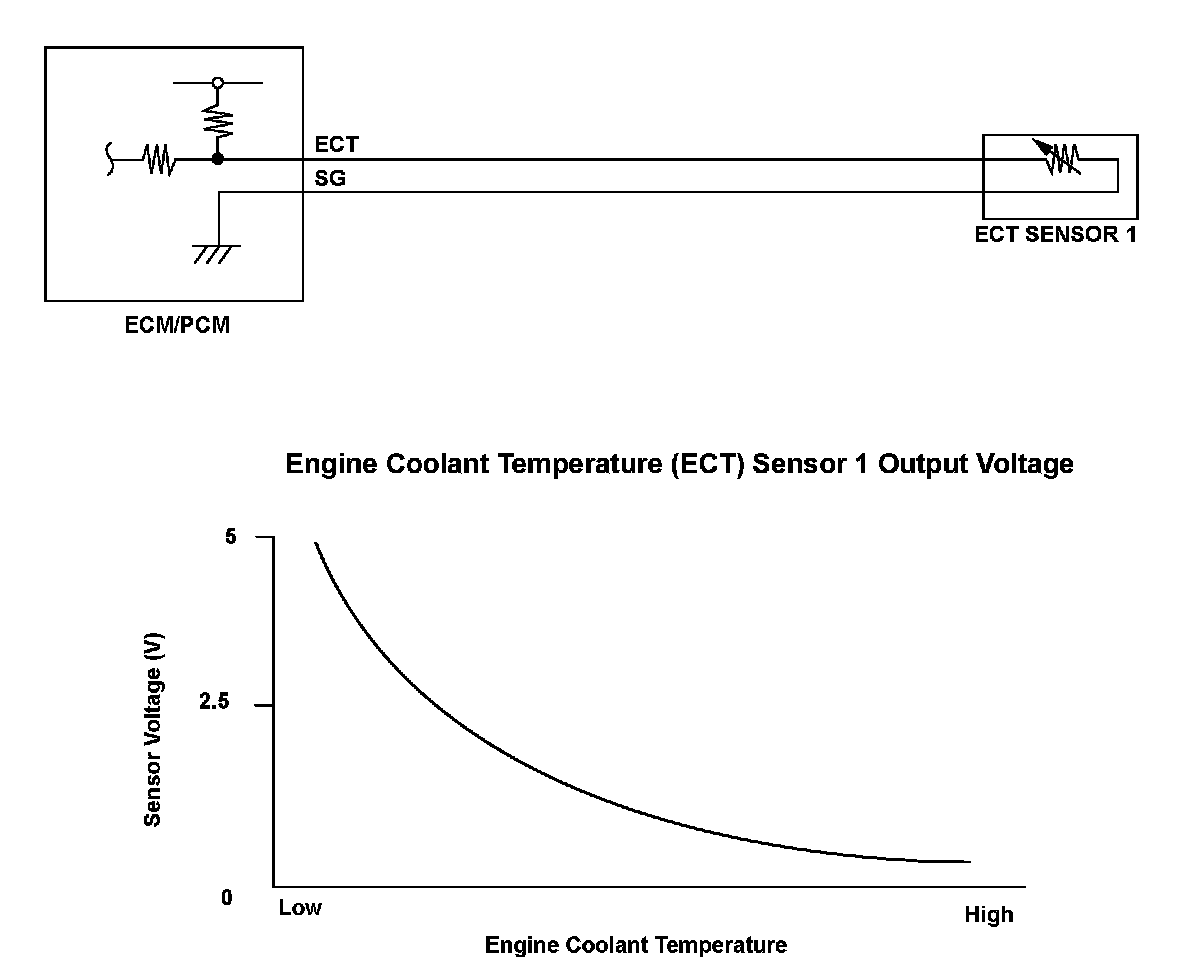

Engine coolant temperature (ECT) sensor 1 is used for air/fuel ratio feedback control, ignition timing control, idle speed control, and other functions. The ECT sensor 1 resistance varies depending on the engine coolant temperature. As the engine coolant cools, the ECT sensor 1 resistance increases, and the engine control module (ECM)/powertrain control module (PCM) detects a high signal voltage. As the engine coolant warms, the ECT sensor 1 resistance decreases, and the ECM/ PCM detects a low signal voltage. If the ECT sensor 1 output voltage is less than a set value when the engine coolant temperature is high, the ECM/PCM detects a malfunction and a DTC is stored.

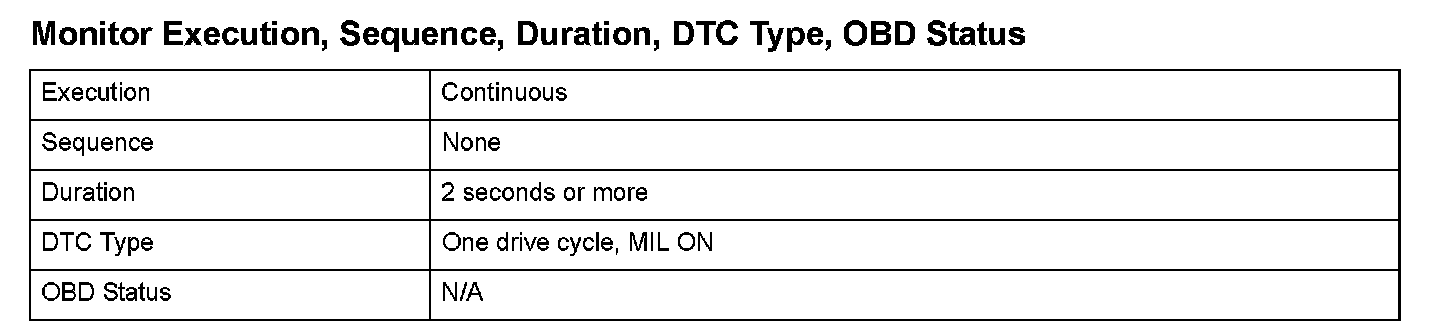

Monitor Execution, Sequence, Duration, DTC Type, OBD Status

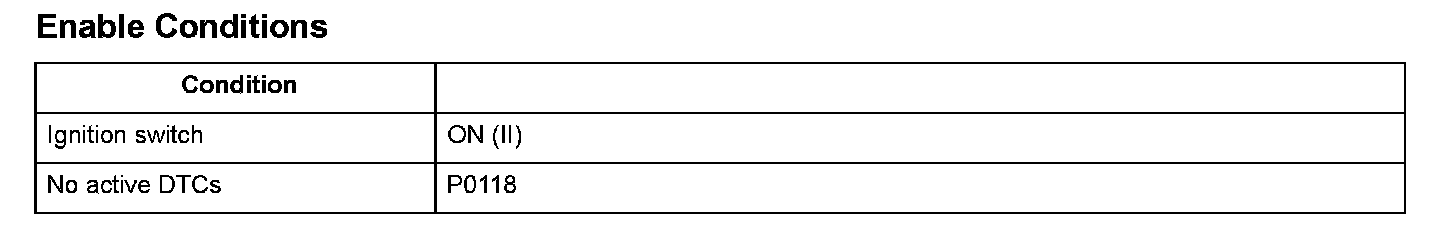

Enable Conditions






Malfunction Threshold
The ECT sensor 1 output voltage is 0.08 V or less for at least 2 seconds.

Diagnosis Details

Conditions for illuminating the MIL
When a malfunction is detected, the MIL comes on and the DTC and the freeze frame data are stored in the ECM/PCM memory.

Conditions for clearing the MIL
The MIL will be cleared if the malfunction does not recur during three consecutive trips in which the diagnostic runs. The MIL, the DTC, and the freeze frame data can be cleared by using the scan tool Clear command or by disconnecting the battery.
