VSA DTC Troubleshooting: 27-11, 27-26

DTC 27-11: Steering Angle Sensor DIAG Signal Error (Initial)

DTC 27-26: Steering Angle Sensor DIAG Signal Error (Main)

1. Turn the ignition switch to ON (II).

2. Clear the DTC with the HDS.

3. Turn the ignition switch to LOCK (0), then turn it to ON (II) again.

4. Check for DTCs with the HDS.

Is DTC 27-11 or 27-26 indicated?
YES - Go to step 5.

NO - Intermittent failure, the system is OK at this time. Check for loose terminals between the steering angle sensor 5P connector and the VSA modulator-control unit 37P connector. Refer to intermittent failures troubleshooting. How To Troubleshoot The VSA System (With VSA)


5. Turn the ignition switch to LOCK (0).

6. Disconnect the steering angle sensor 5P connector.

7. Disconnect the VSA modulator-control unit 37P connector. Service and Repair

8. Check for continuity between steering angle sensor 5P connector terminal No. 3 and body ground.

Is there continuity?
YES - Repair short to body ground in the wire between the steering angle sensor and the VSA modulator-control unit.

NO - Go to step 9.

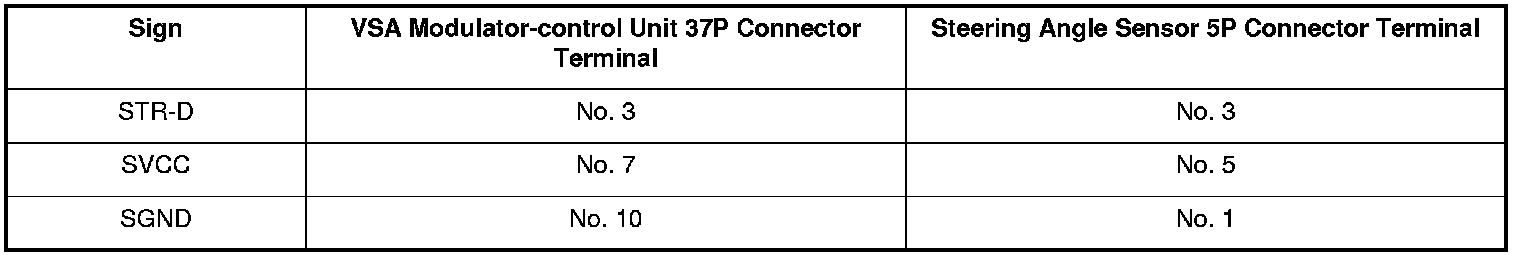

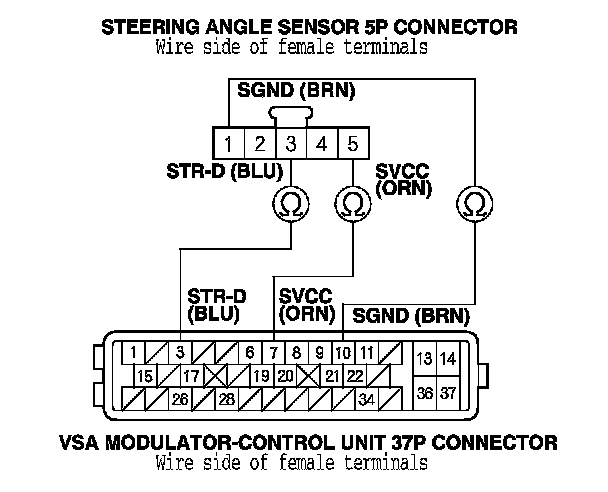

9. Check for continuity between the VSA modulator-control unit 37P connector terminal and the steering angle sensor 5P connector terminal individually (see table).





Is there continuity?
YES - Go to step 10.

NO - Repair open in the wire between the steering angle sensor and the VSA modulator-control unit.






10. Turn the ignition switch to ON (II).

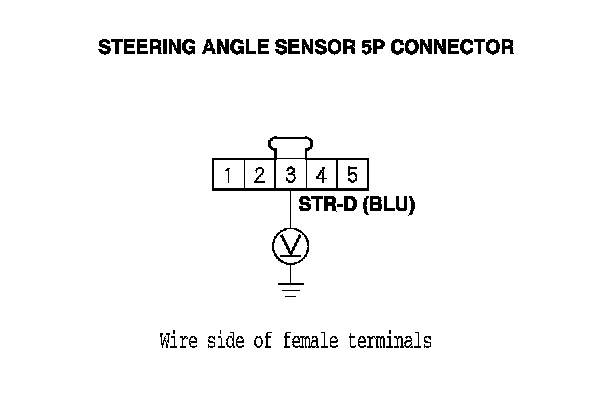

11. Measure the voltage between steering angle sensor 5P connector terminal No. 3 and body ground.

Is there 0.1 V or more?
YES - Repair short to power in the wire between the steering angle sensor and the VSA modulator-control unit.

NO - Replace the steering angle sensor. Service and Repair
