Tighting Torques and Sequences

Drive Plate Torque

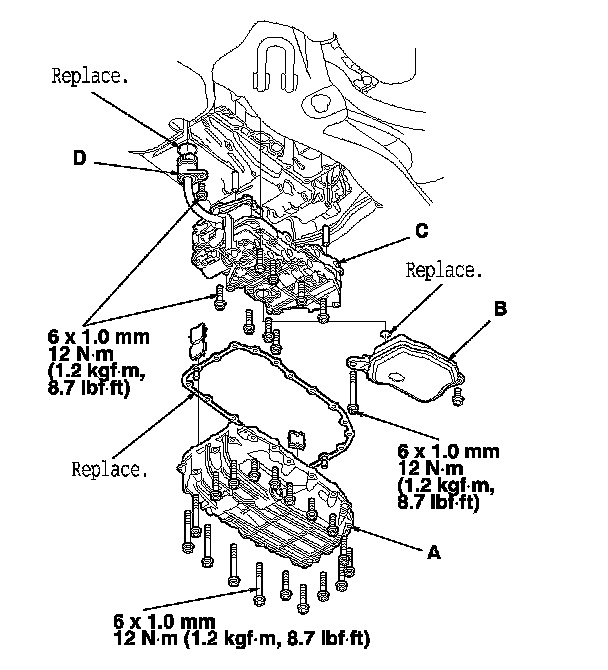

ATF Pan






For information regarding Transmission Overhaul Specifications, please refer to Service and Repair. Service and Repair
