Variable Valve Timing Solenoid: Service and Repair

Rocker Arm Oil Control Valve Removal/Installation

1. Remove the intake manifold. Service and Repair

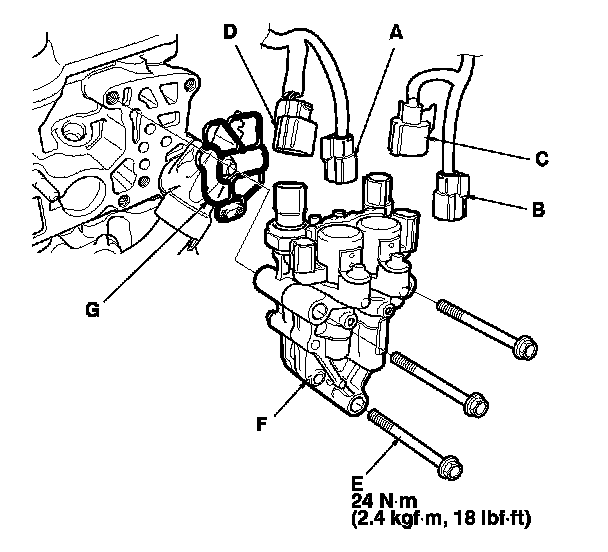

2. Disconnect the rocker arm oil control solenoid 1 connector (A), the rocker arm oil control solenoid 2 connector (B), the rocker arm oil pressure switch connector (C), and the rocker arm oil pressure sensor connector (D).

3. Remove the bolts (E).

4. Remove the rocker arm oil control valve (F).

5. Install the parts in the reverse order of removal with a new rocker arm oil control valve filter (G).
