Home >> Honda >> 2008 >> Civic Si L4-2.0L >> Repair and Diagnosis >> Windows and Glass >> Windows >> Diagrams >> Electrical Diagrams >> Circuit Diagrams

Circuit Diagrams

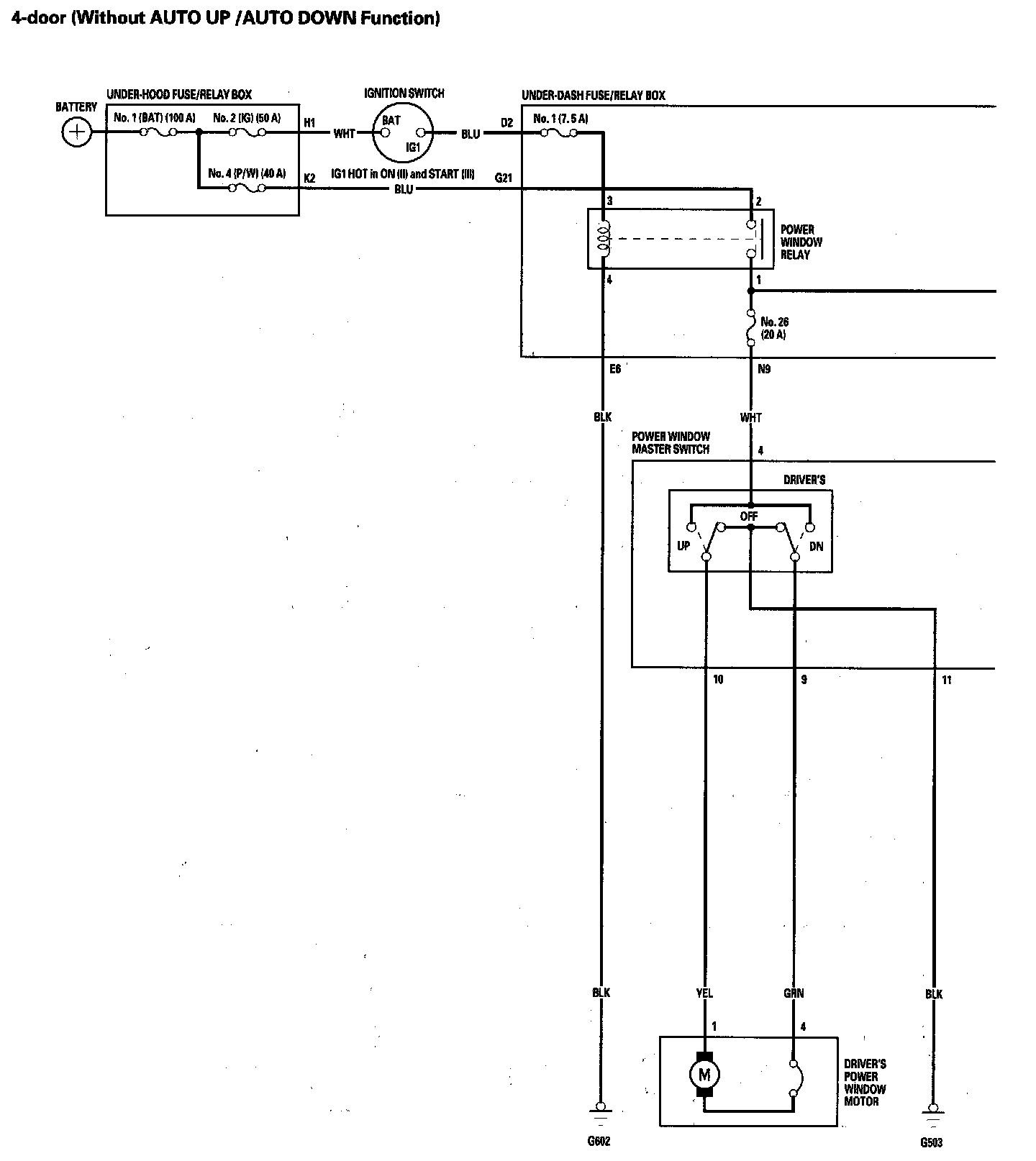

Power Windows Circuit Diagram Part 1:

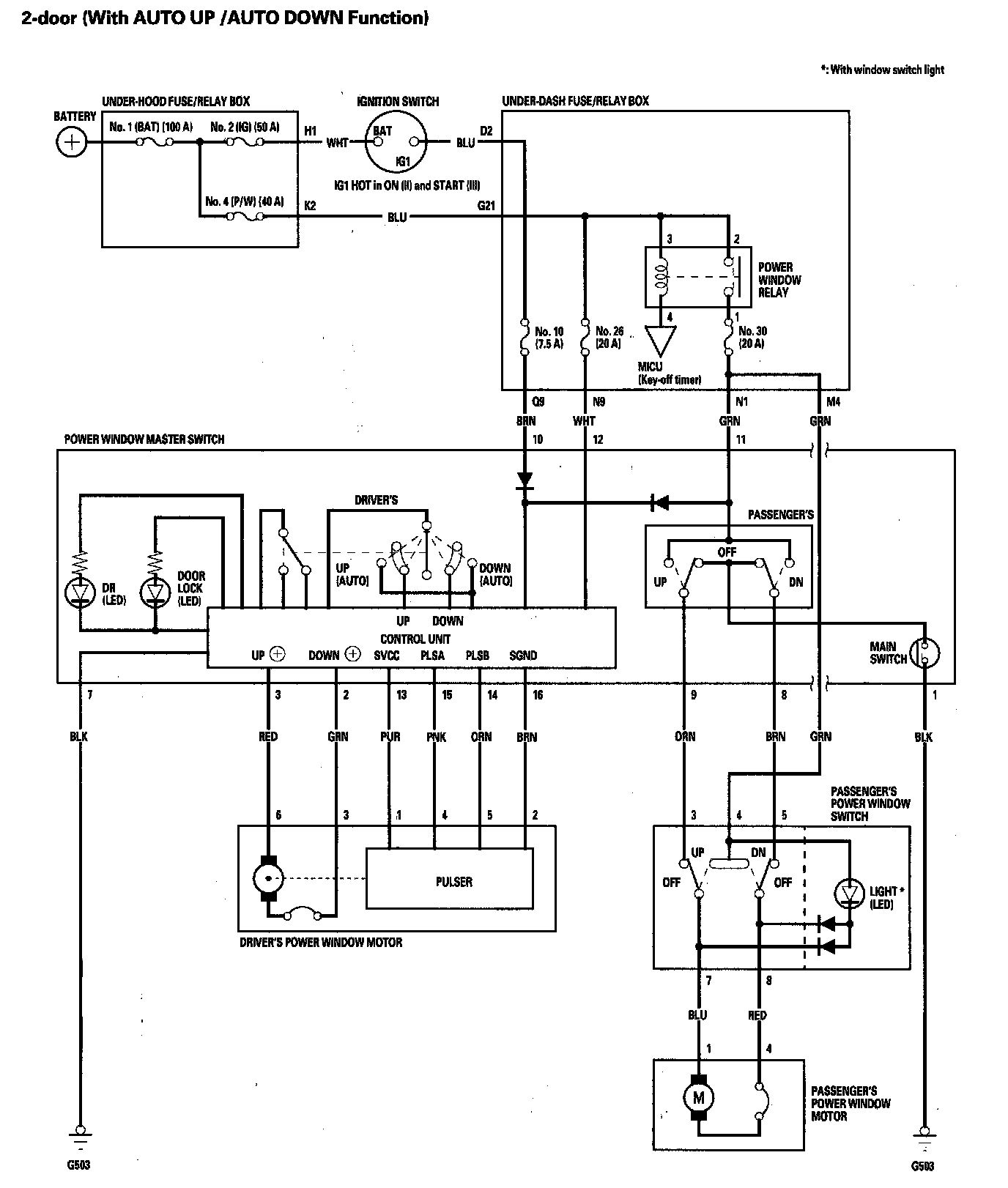

Power Windows Circuit Diagram Part 2:

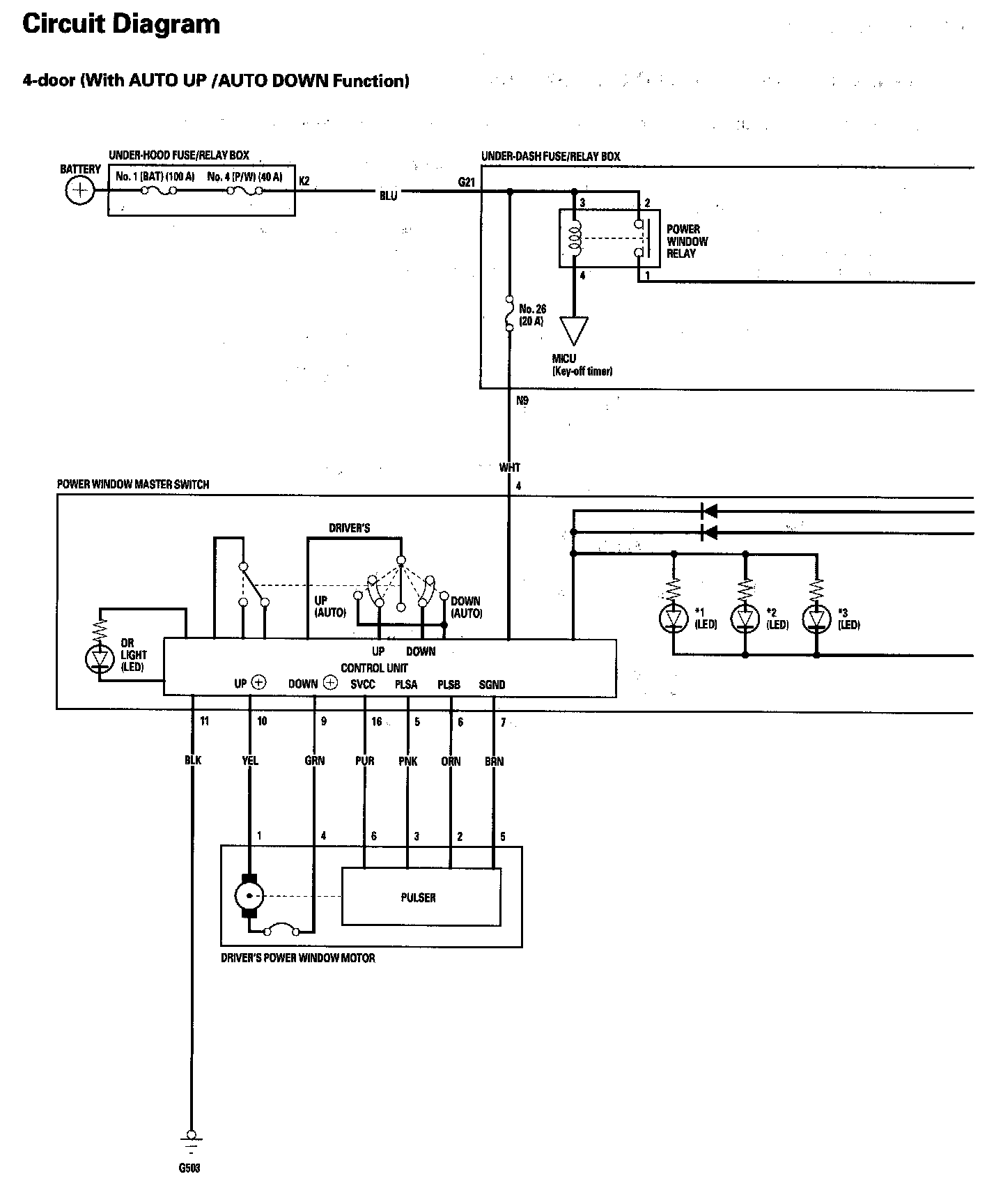

Power Windows Circuit Diagram Part 3:



Power Windows Circuit Diagram Part 4:

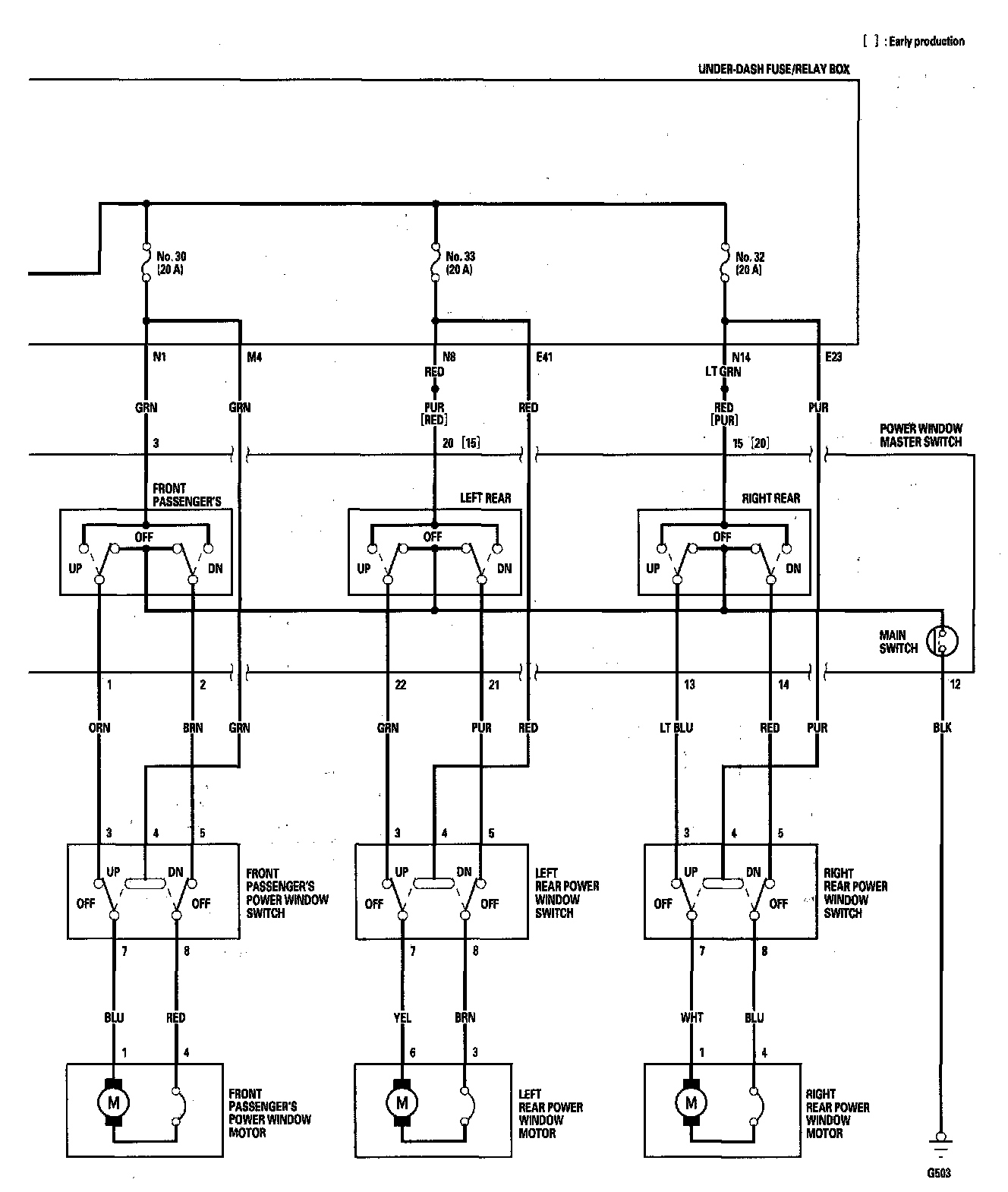

Power Windows Circuit Diagram Part 5:

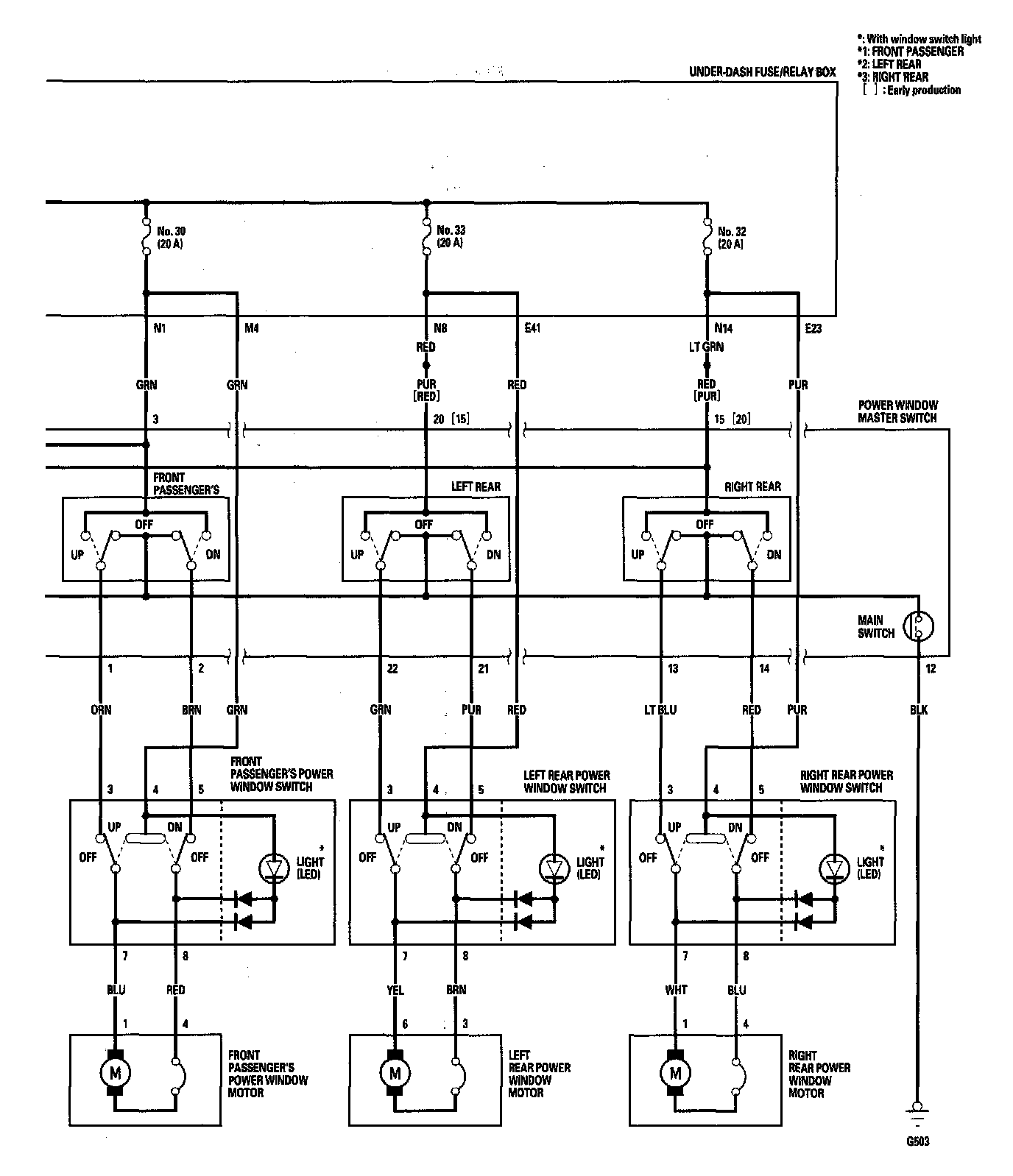

Power Windows Circuit Diagram Part 6:
