Power Window Relay: Diagrams

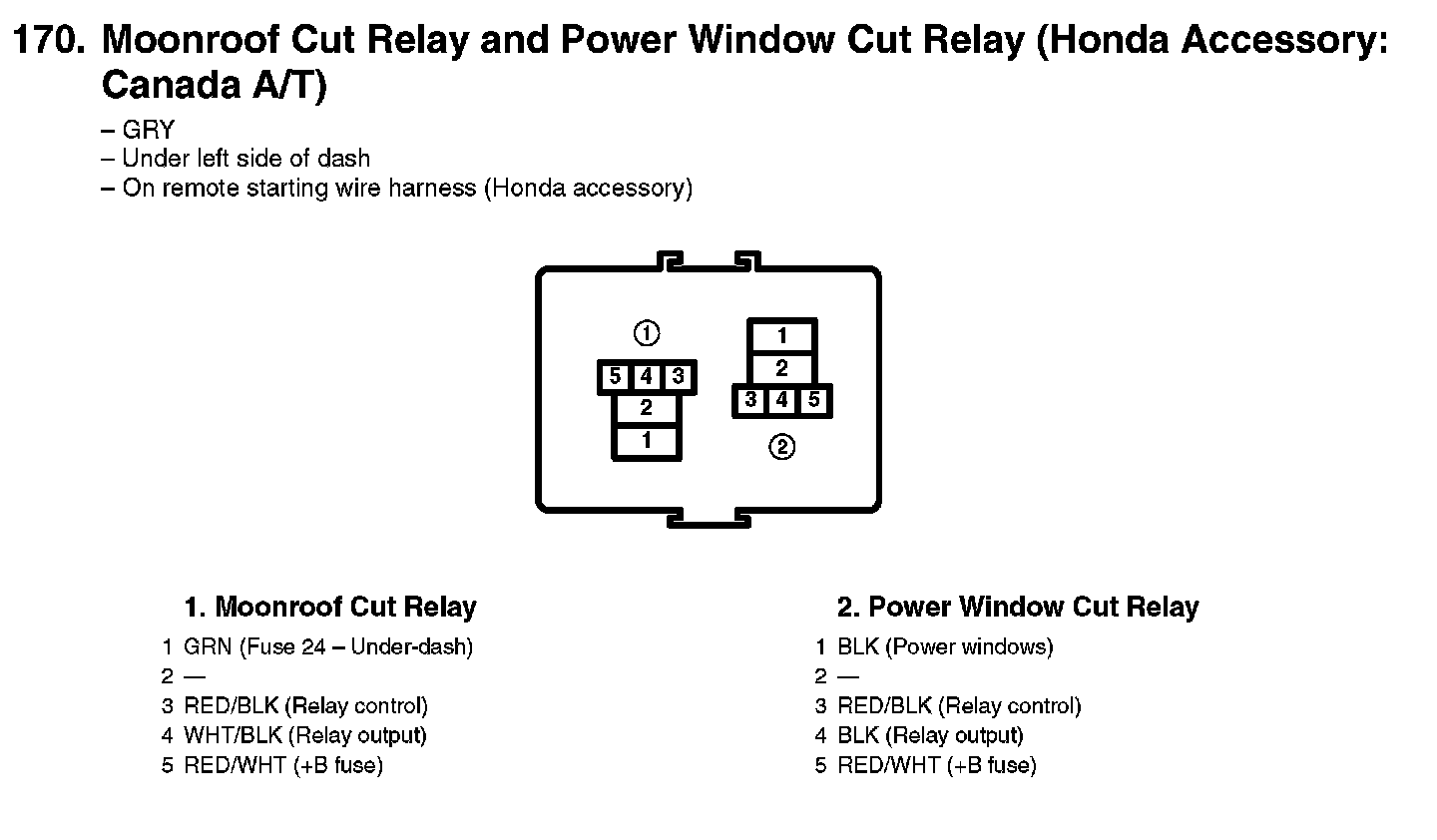

170. Moonroof Cut Relay And Power Window Cut Relay (Honda Accessory: Canada A/T):
