Back-Up Light Switch Test

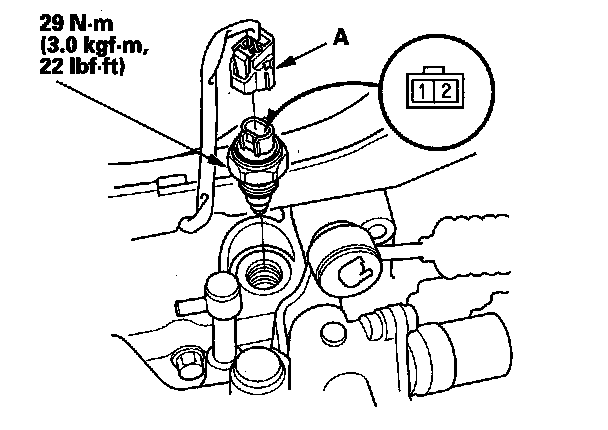

Back-up Light Switch Test1. Disconnect the back-up light switch connector (A).
2. Check for continuity between the back-up light switch 2P connector terminals No. 1 and No. 2. There should be continuity when the change lever is only in reverse.
3. If necessary, replace the back-up light switch. Apply liquid gasket (P/N 08718-0001) evenly to the threads of the transmission housing. Install the switch within 5 minutes of applying the liquid gasket. Tighten the back-up light switch to the specified torque.
NOTE:
^ If you apply liquid gasket P/N 08718-0012, the component must be installed within 4 minutes.
^ If too much time has passed after applying the liquid gasket, remove the old liquid gasket and residue, then reapply new liquid gasket.
