Differential Carrier, Final Driven Gear Replacement

Differential Carrier, Final Driven Gear Replacement

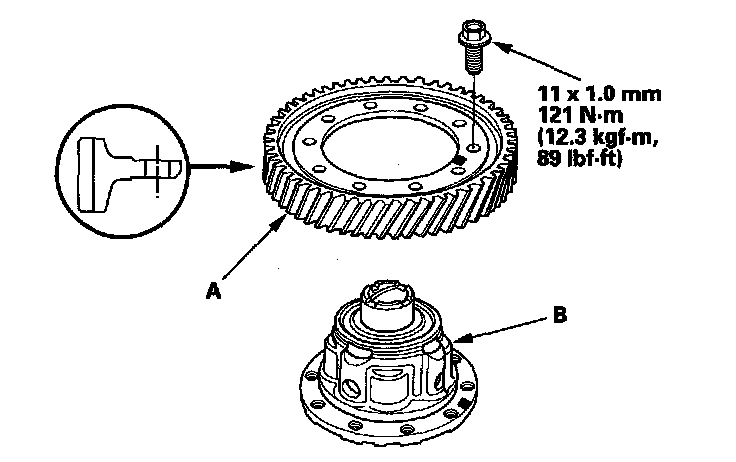

1. Remove the bolts in a crisscross pattern in several steps, then remove the final driven gear (A) from the differential carrier (B).





2. Install the final driven gear with the chamfer on the inside diameter facing the carrier. Tighten the bolts in a crisscross pattern in several steps.
