Multiple Junction Connector: Diagrams

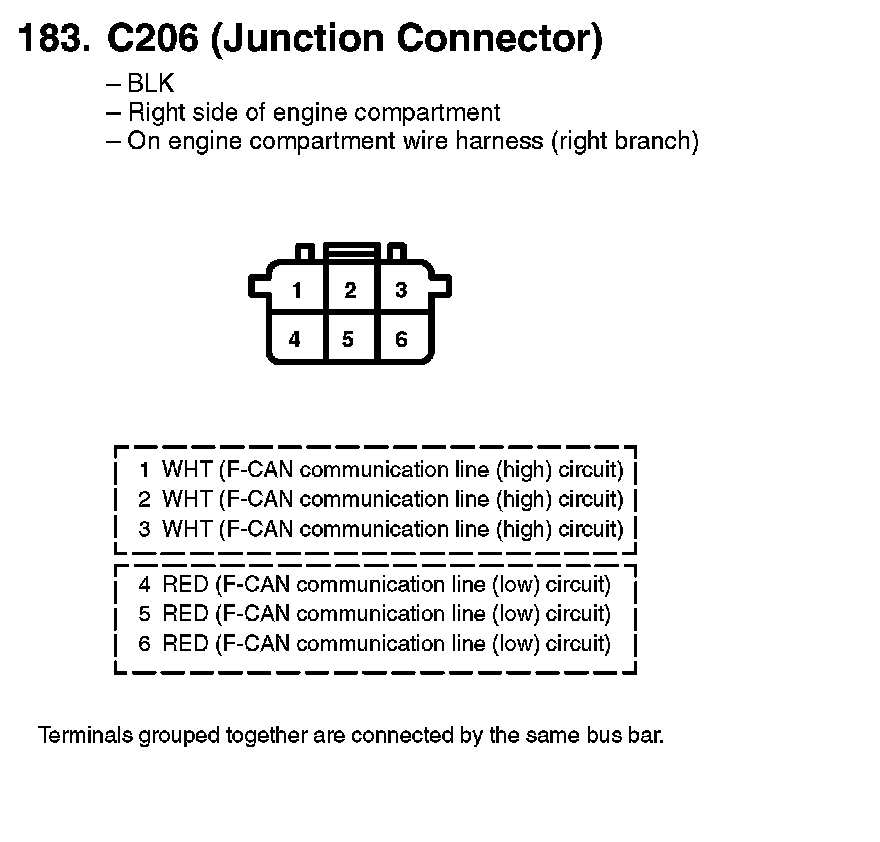

183. C206 (Junction Connector):

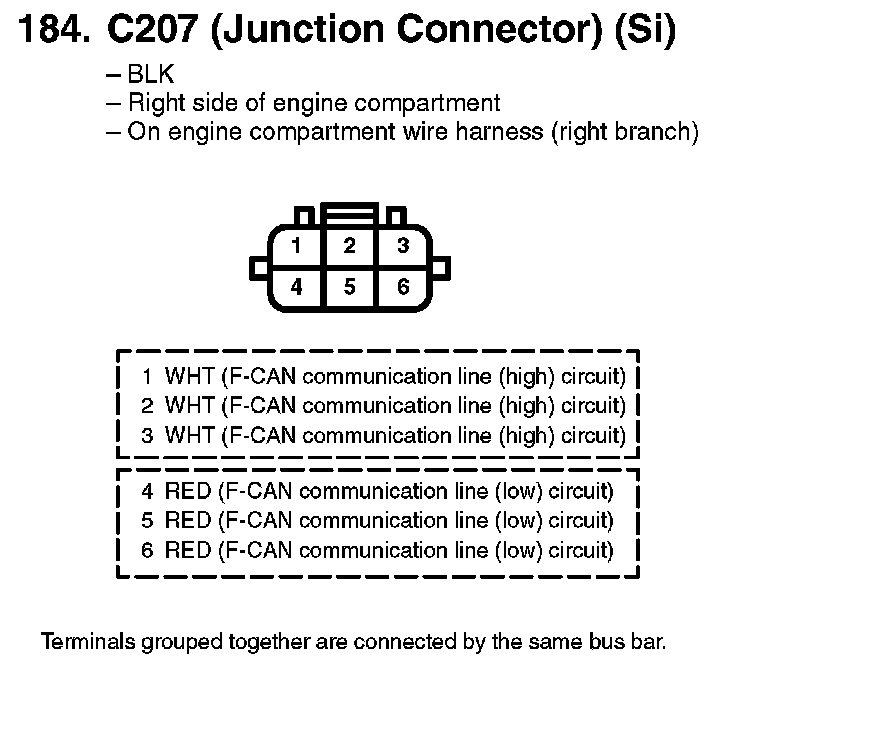

184. C207 (Junction Connector) (Si):

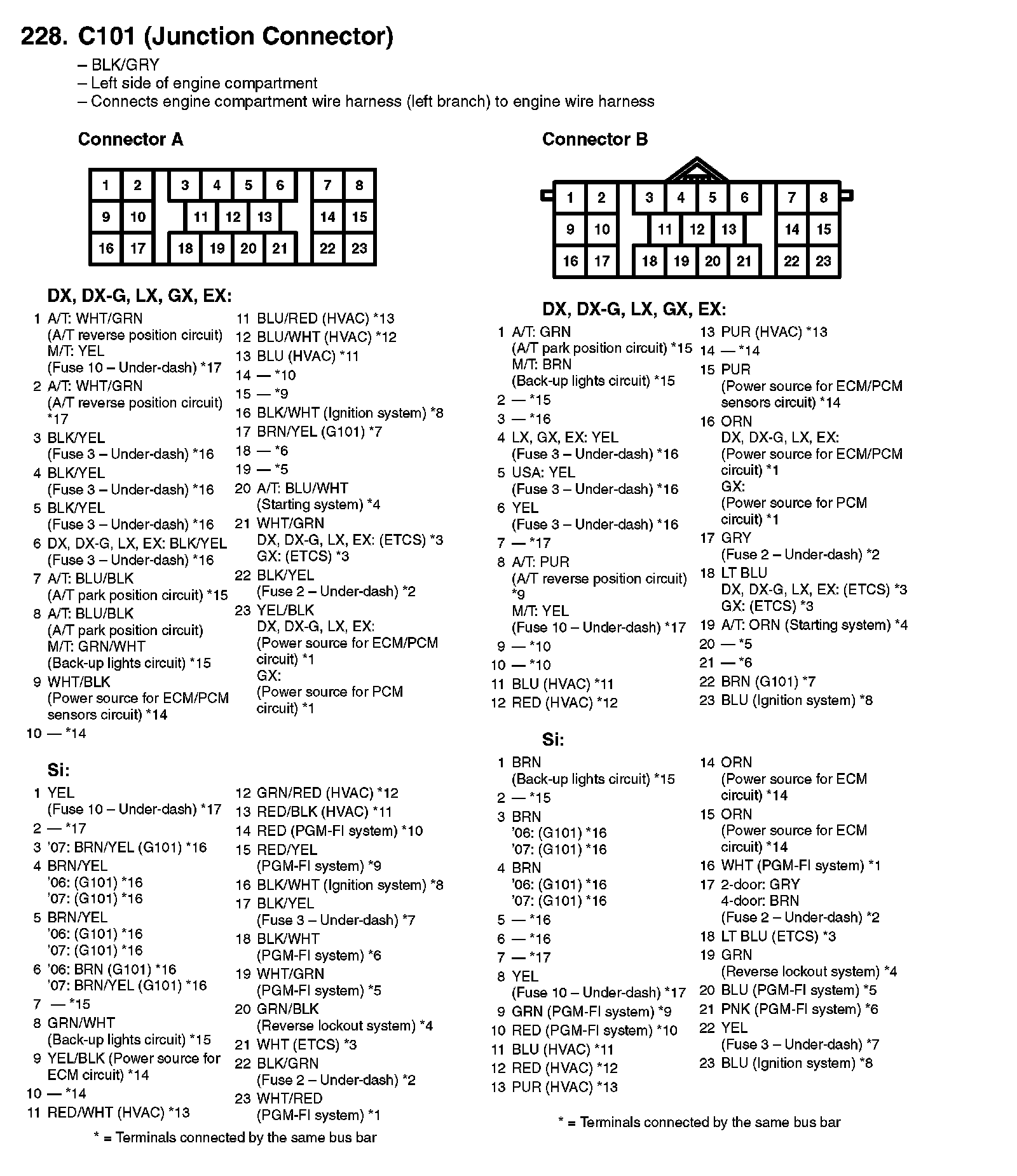

228. C101 (Junction Connector):

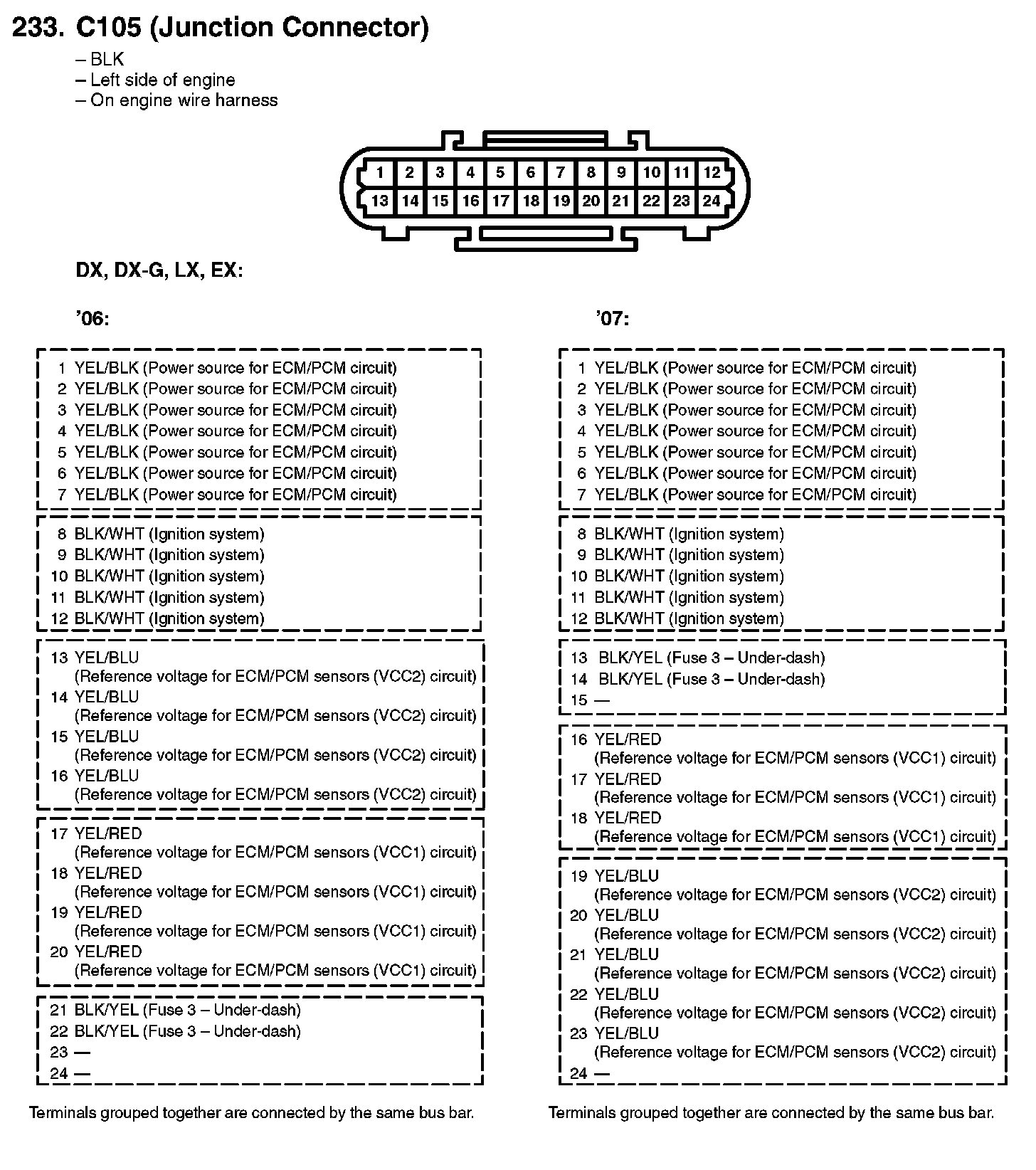

233. C105 (Junction Connector):

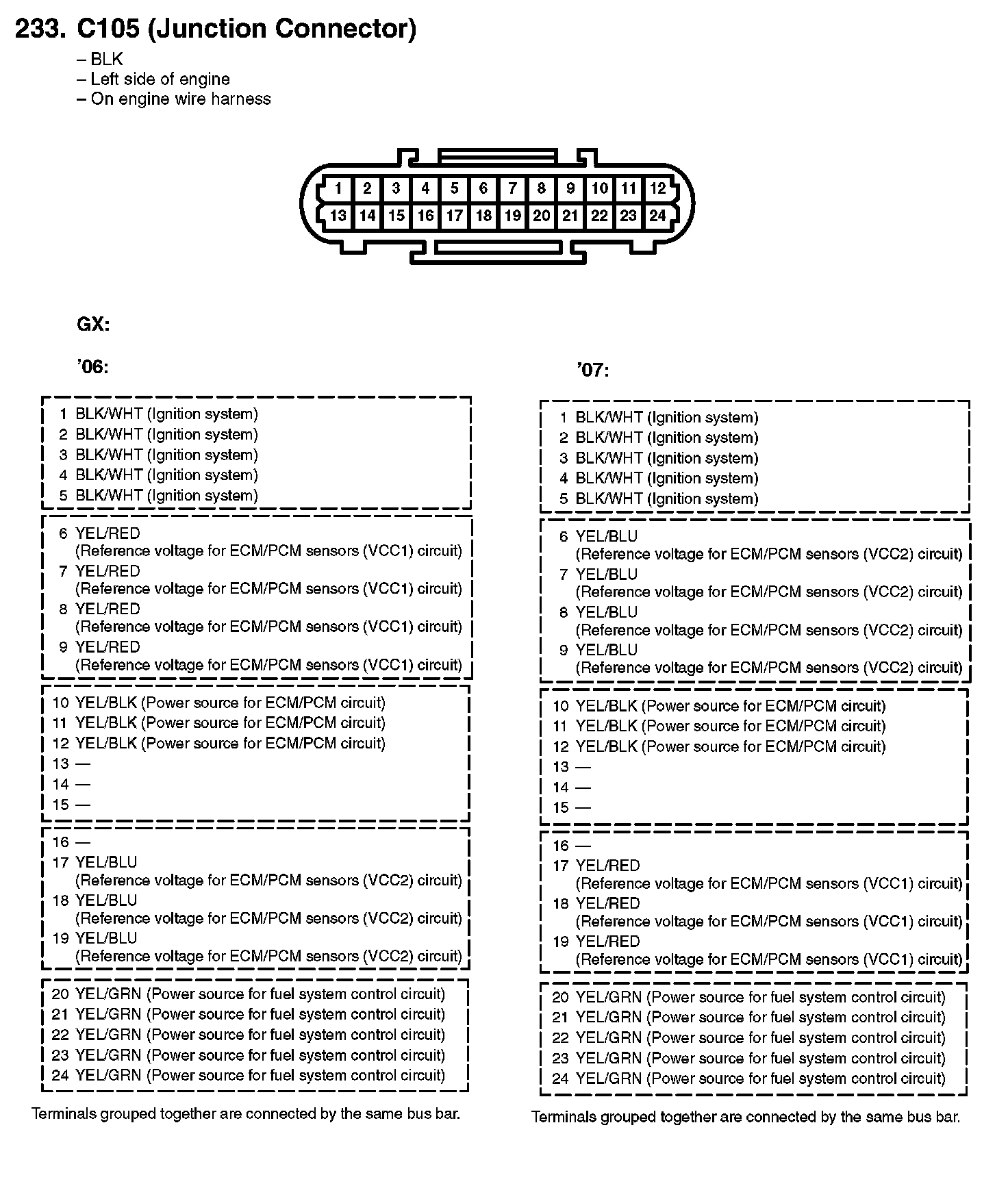

233. C105 (Junction Connector):

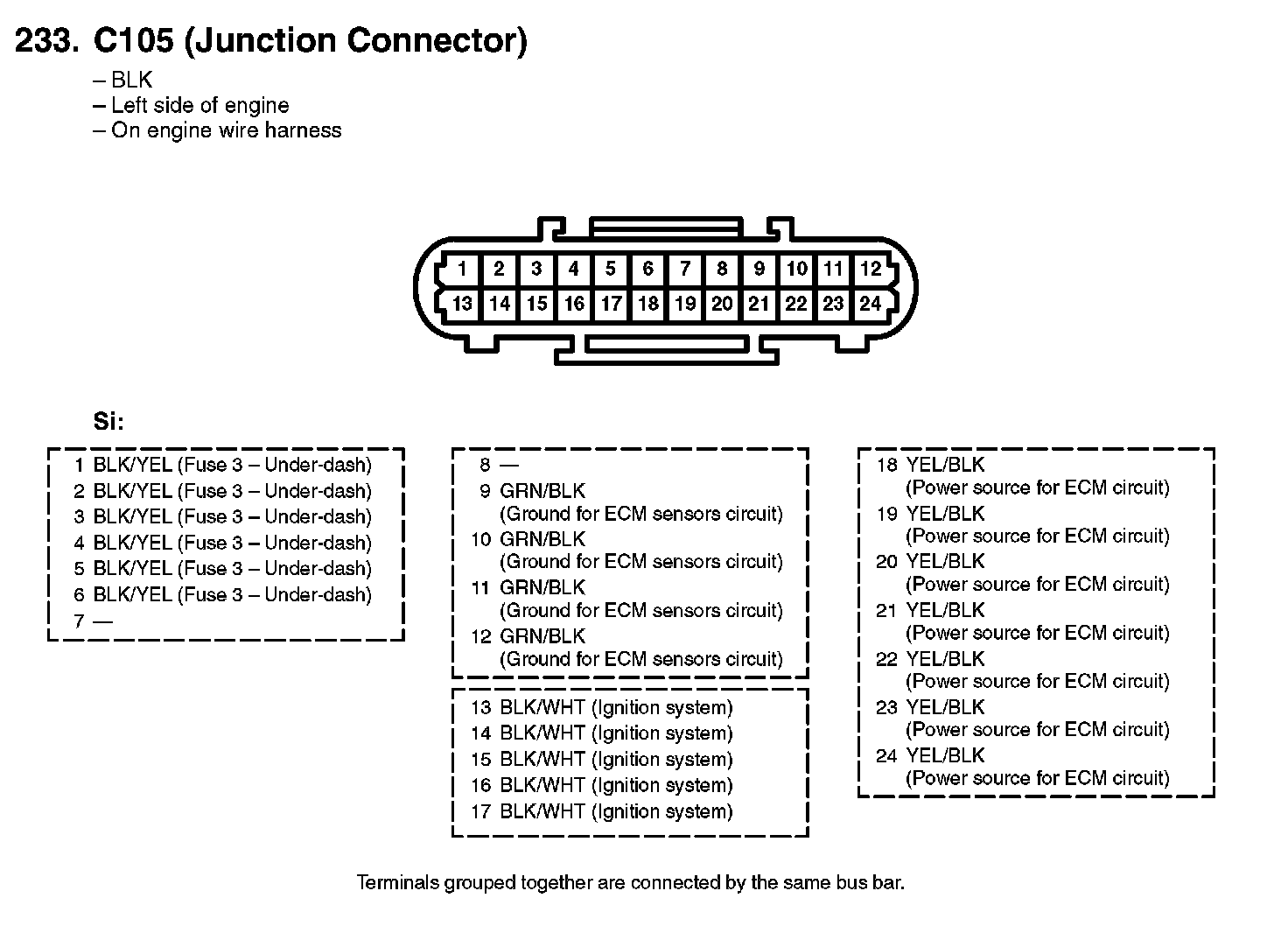

233. C105 (Junction Connector):

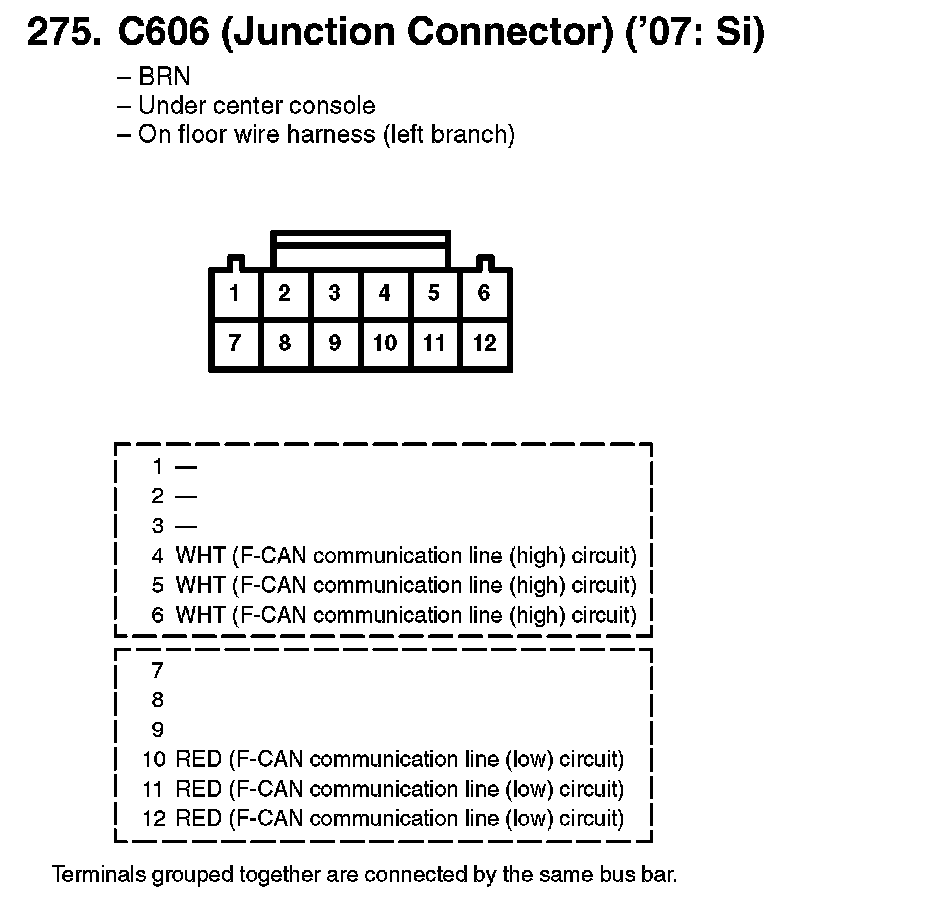

275. C606 (Junction Connector) ('07: Si):
