Connector Views

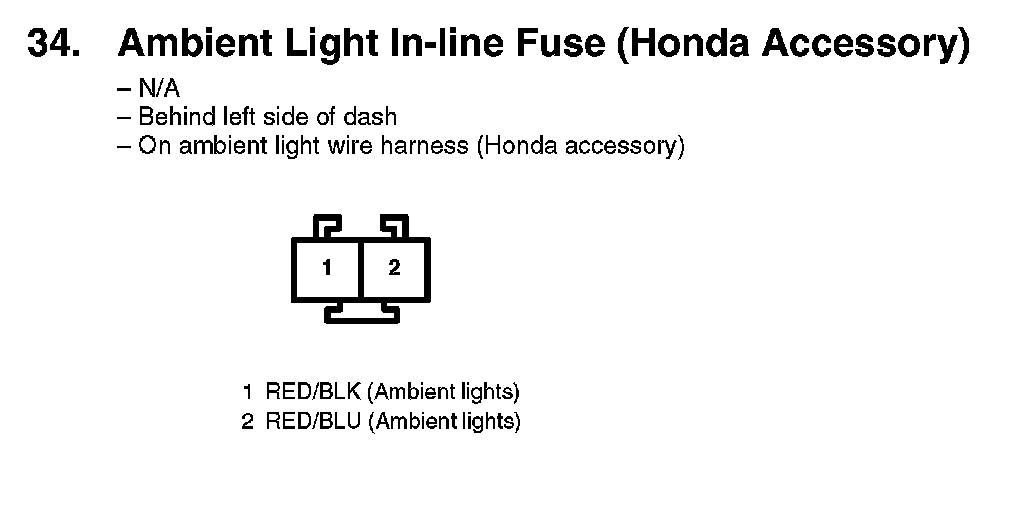

34. Ambient Light In-line Fuse (Honda Accessory):

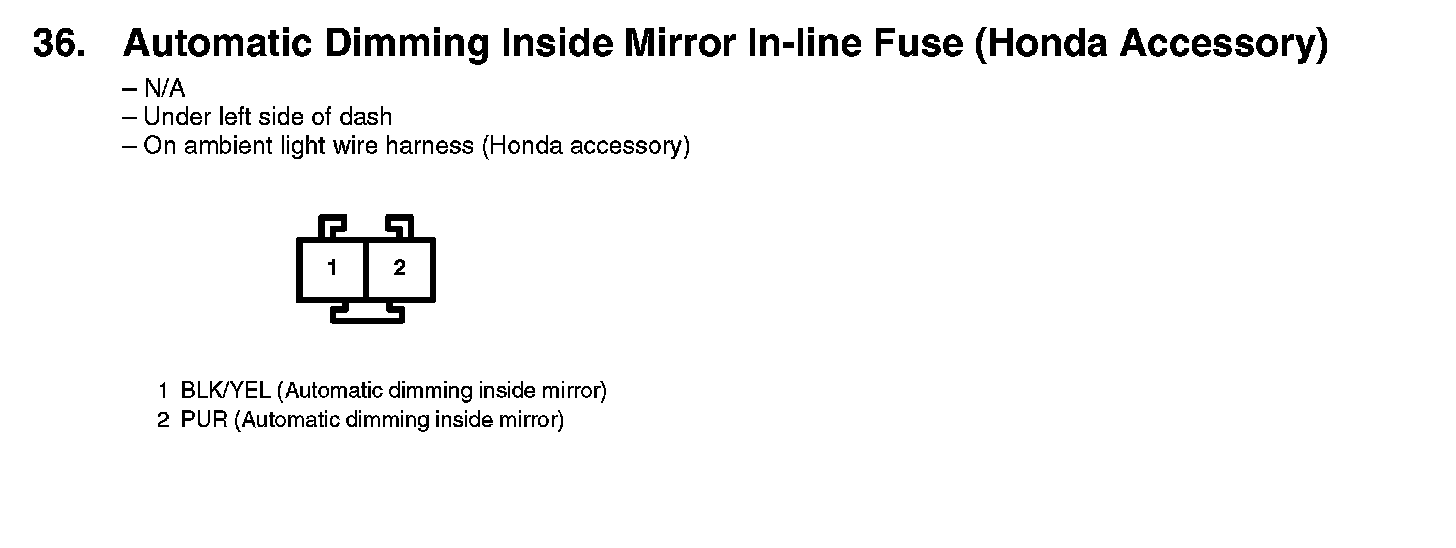

36. Automatic Dimming Inside Mirror In-line Fuse (Honda Accessory):

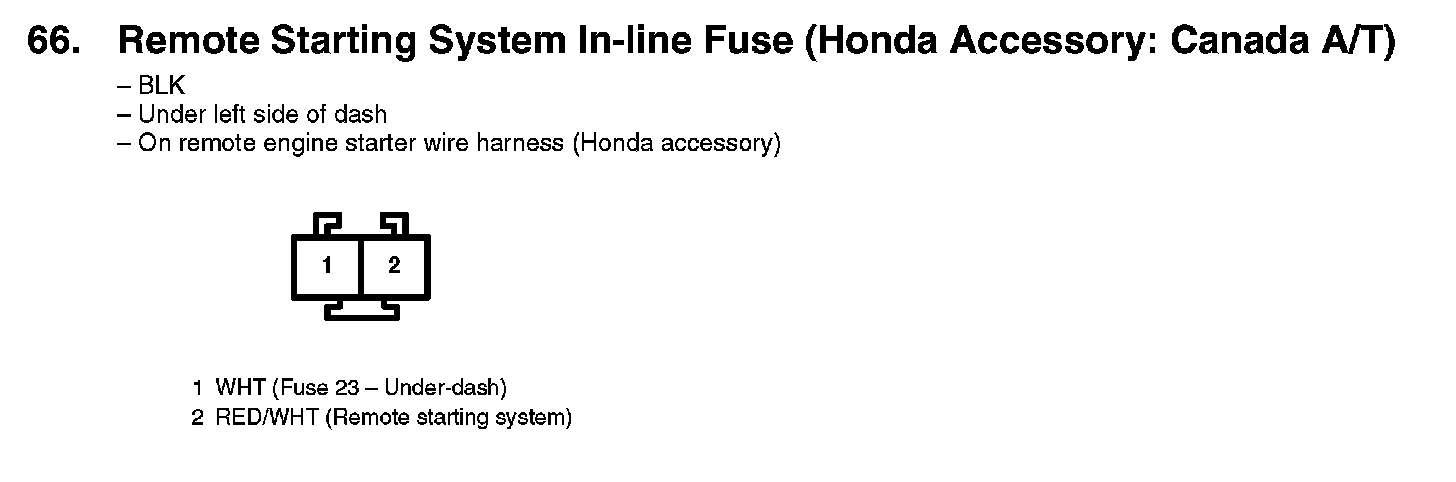

66. Remote Starting System In-line Fuse (Honda Accessory: Canada A/T):
