Front Accessory Power Socket Test/Replacement

Front Accessory Power Socket Test/Replacement

NOTE: If both of the front and rear accessory power sockets do not work, check the No. 35 (7.5 A) fuse in the under-dash fuse/relay box.

1. Remove the center panel.
- With Audio.
- With Navigation.

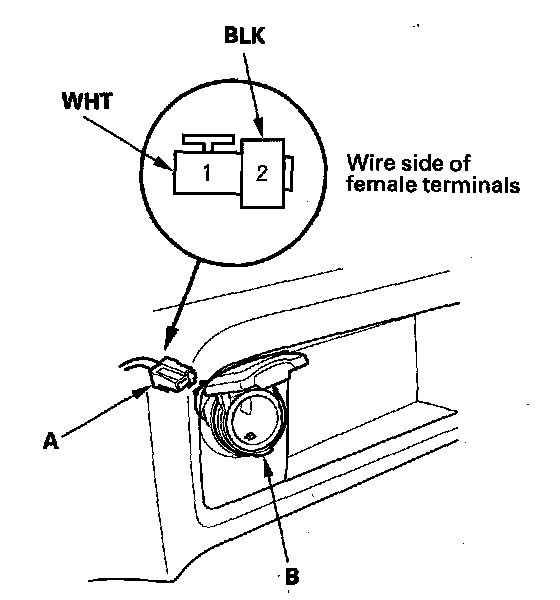

2. Disconnect the 2P connector (A) from the front accessory power socket (B).






3. Inspect the connector terminals to be sure they are all making good contact.
- If the terminals are bent, loose, or corroded, repair them as necessary and recheck the system.
- If the terminals look OK, go to step 4.

4. Turn the ignition switch to ACC (I).
5. Measure the voltage between the power accessory socket 2P connector No. 1 terminal and body ground. There should be battery voltage.
- If there is battery voltage, go to step 6.
- If there is no battery voltage, check for:
- Blown No. 29 (15 A) fuse in the under-dash fuse/relay box.
- Faulty front accessory power socket relay.
- Poor ground (G503).
- An open in the wire.

6. Check for continuity between the No. 2 terminal and body ground. There should be continuity.
- If there is continuity, go to step 7.
- If there is no continuity, check for:
- Poor ground (G502).
- An open in the wire.

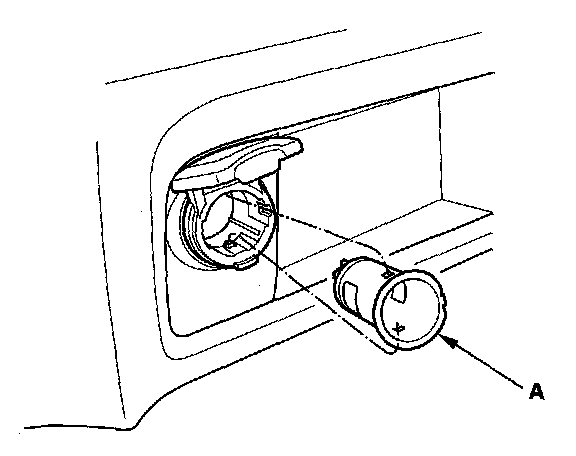

7. Remove the socket (A).

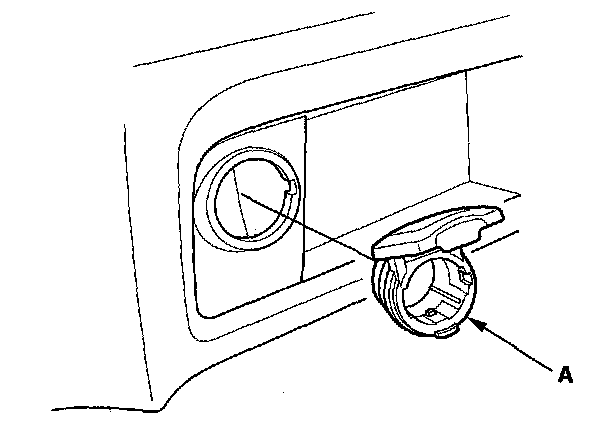

8. Remove the housing (A) from the panel.






9. Install the power socket in the reverse order of removal.
