Civic Si L4-2.0L
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Engine
>>
System Specifications
>>
Service Specifications
Service Specifications
Flywheel
Tighten the flywheel mounting bolts (B) in a crisscross pattern in several steps.

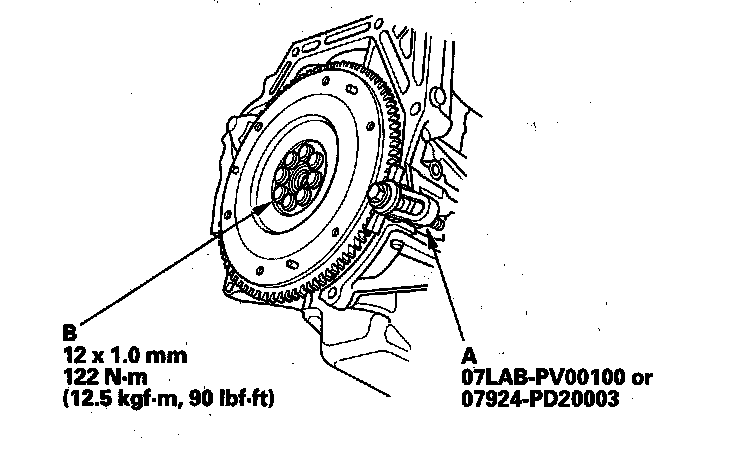

5-Speed Model

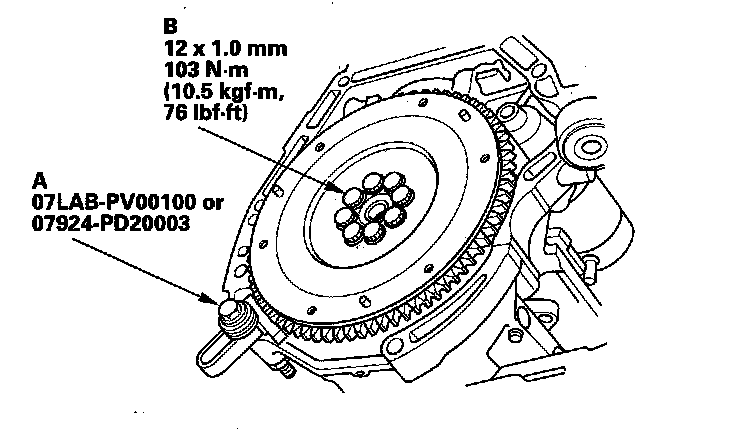

6-Speed Model

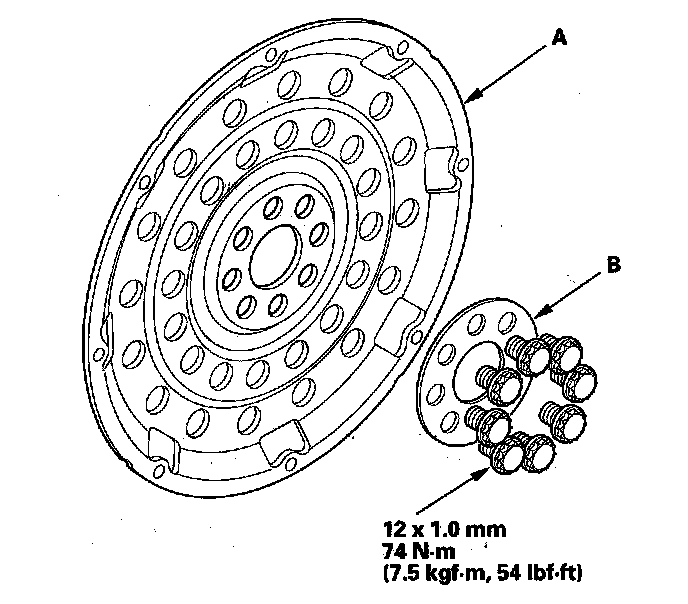

Flex Plate
Tighten the eight bolts in a crisscross pattern in two or more steps.
