Steering Angle Sensor: Diagrams

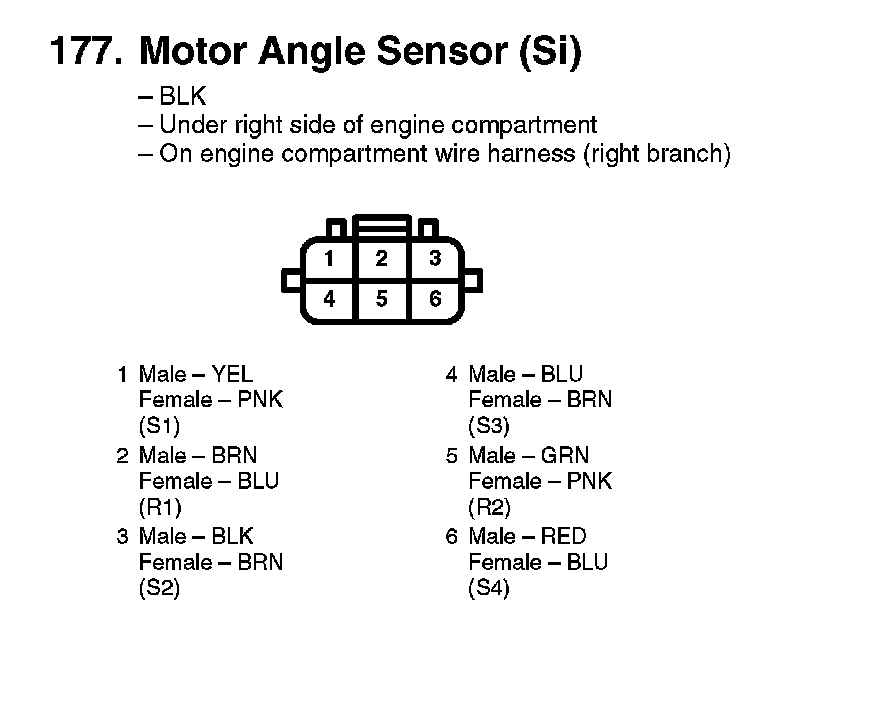

177. Motor Angle Sensor (Si):

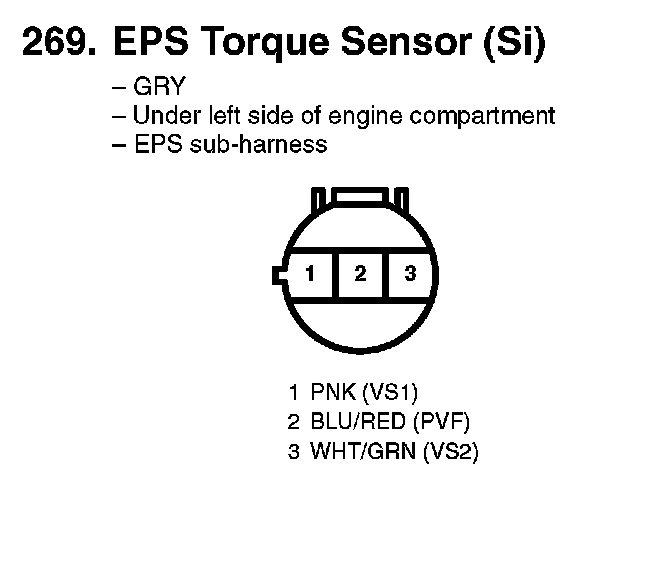

269. EPS Torque Sensor (Si):

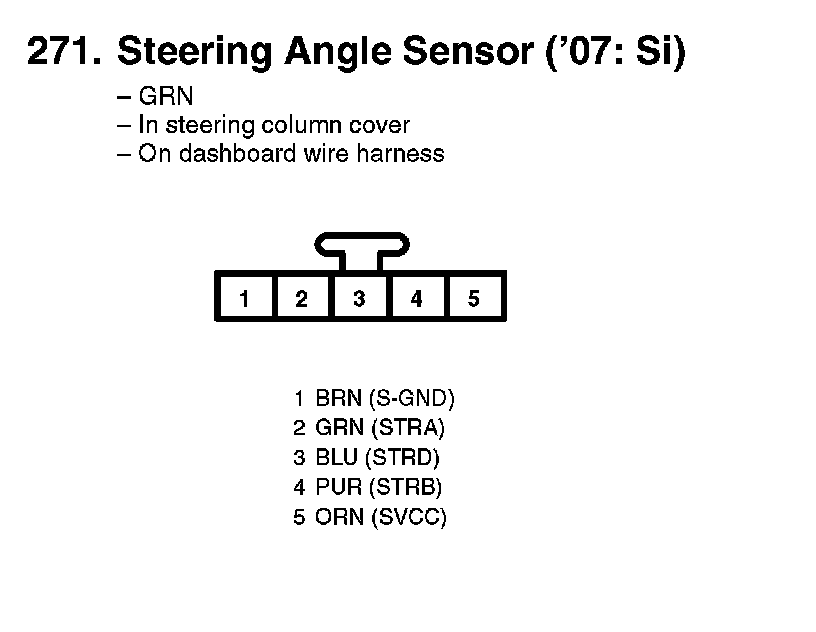

271. Steering Angle Sensor ('07: Si):
