Side Impact Sensor (First) Replacement
Side Impact Sensor (First) ReplacementNOTE: Review the seat replacement procedure before doing repairs or service.
Removal
1. Disconnect the negative cable from the battery, then wait for 3 minutes before starting work.
2. Disconnect the appropriate side airbag 2P connector.
3. Remove the front seat assembly.
4. Remove the front door sill inner trim.
5. Remove the lower B-pillar lower trim panel.
6. Disconnect the floor wire harness 4P connector from the side impact sensor (first).

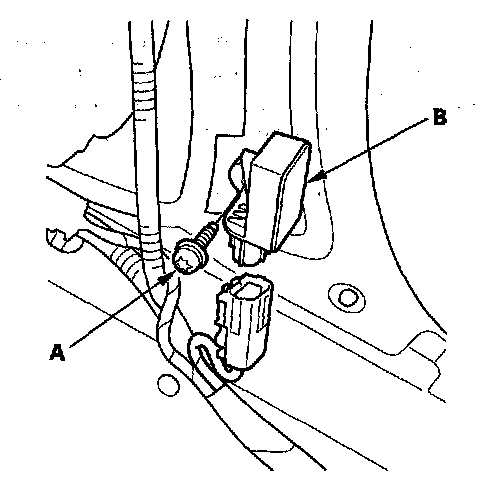

7. Using a TORX T30 bit, remove the TORX bolt (A), then remove the side impact sensor (first) (B).
Installation

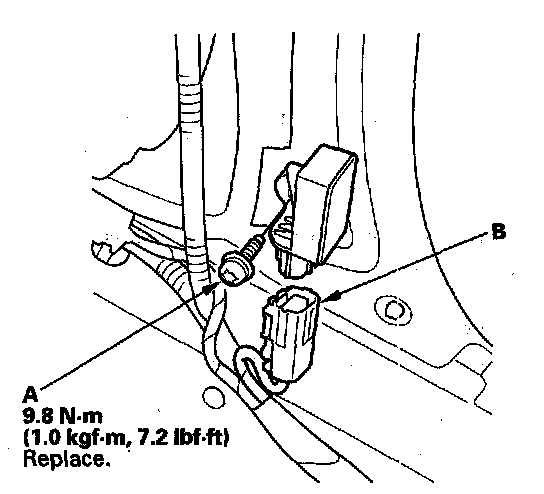

1. Install the side impact sensor (first) with a new TORX bolt (A), then connect the floor wire harness 4P connector (B) to the side impact sensor (first).
2. Reconnect the negative cable to the battery.
3. Reinstall all removed parts.
4. After installing the side impact sensor (first) confirm proper system operation: Turn the ignition switch ON (II); the SRS indicator should come on for about 6 seconds and then go off.
