Fuel Tank Pressure Sensor: Locations

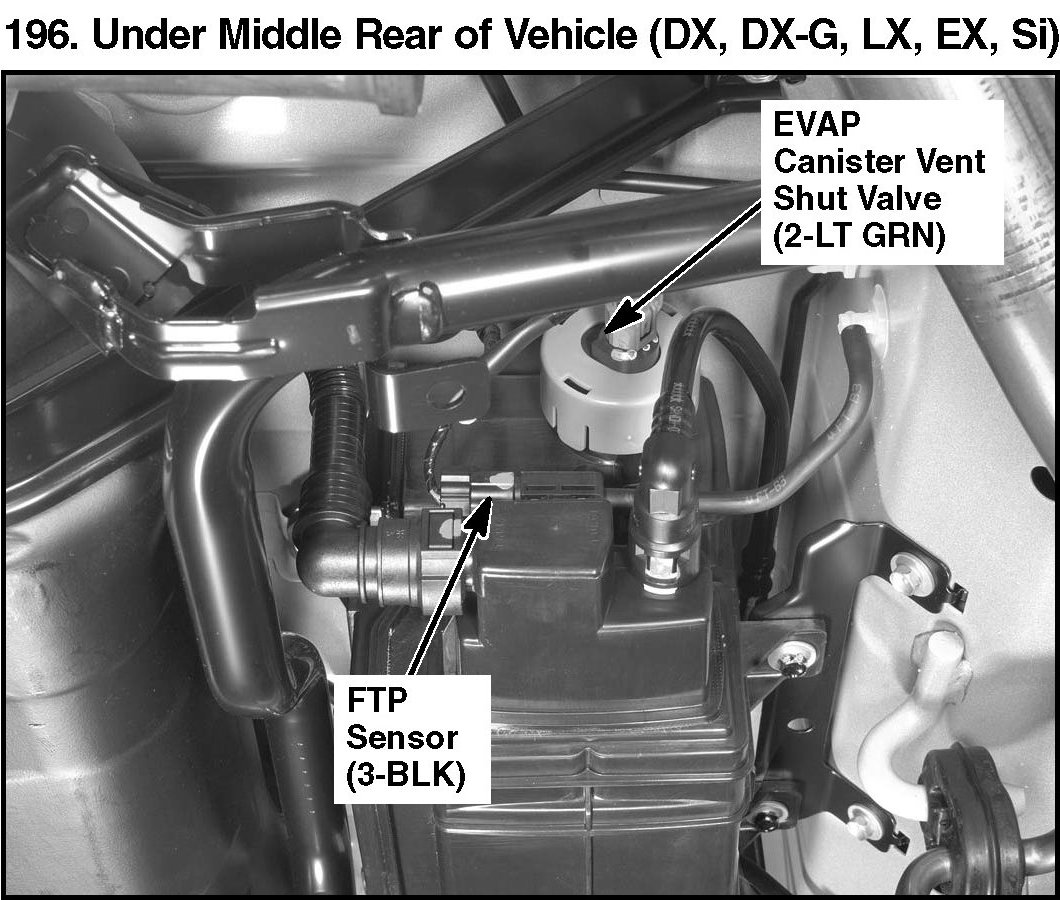

196. Under Middle Rear Of Vehicle (DX, DX-G, LX, EX, Si):



EVAP System Component Location Index:
