Fog/Driving Lamp Switch: Diagrams

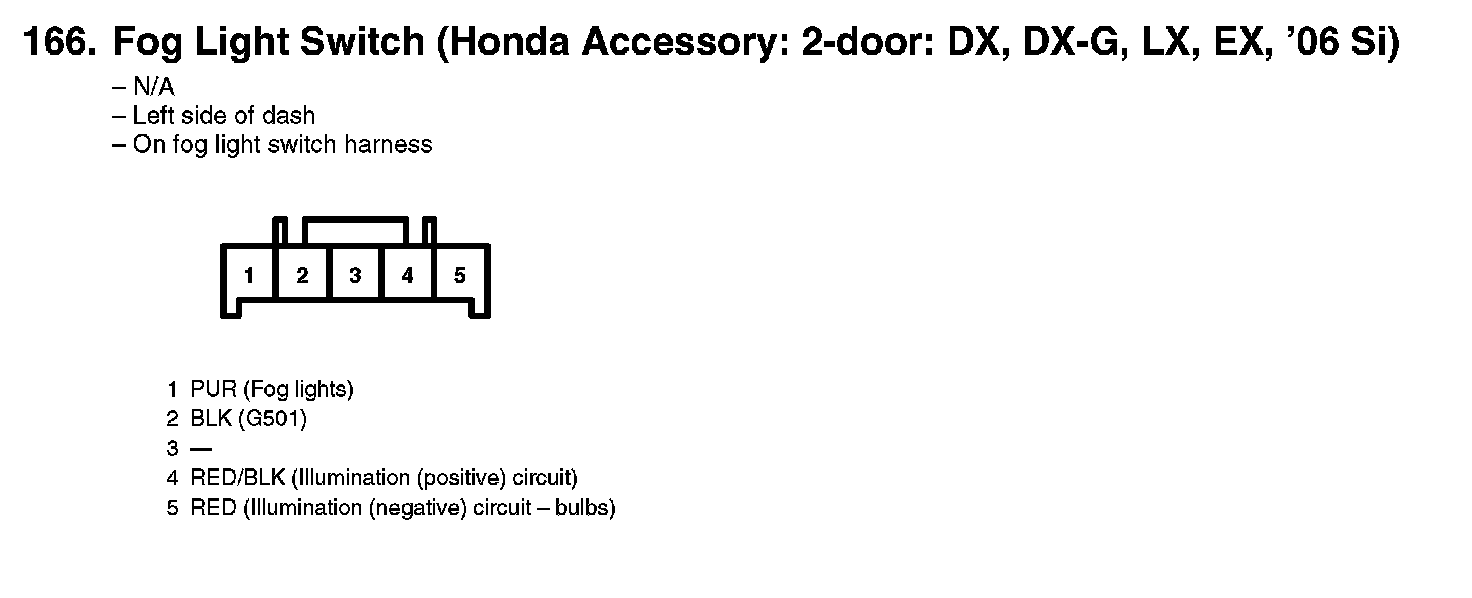

166. Fog Light Switch (Honda Accessory: 2-door: DX, DX-G, LX, EX, '06 Si):
