Dimmer Switch: Service and Repair

Dash Lights Brightness Controller and Odometer Select/Reset Switch Test/Replacement

1. Remove the subdisplay visor and disconnect the connectors.

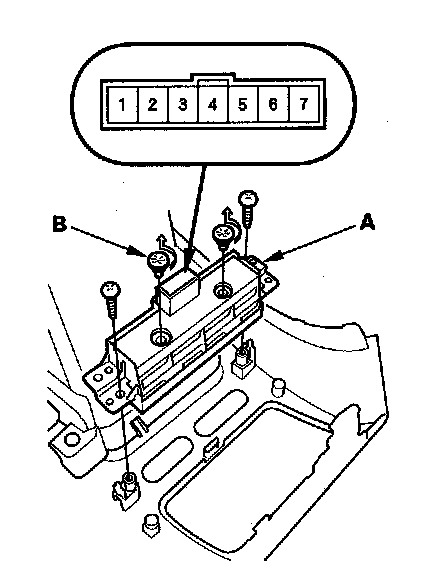

2. Remove the two screws and the dash lights brightness controller-odometer select/reset switch (A).

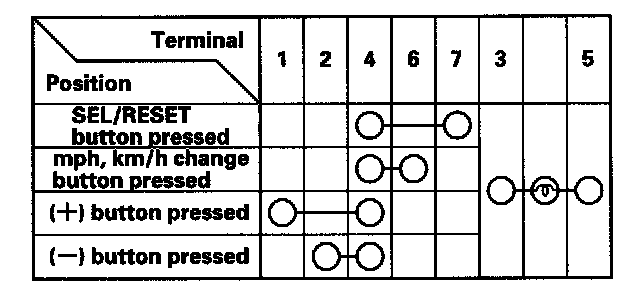

3. Check for continuity between the terminals in each switch position according the table.






4. If the continuity is not as specified, replace the bulbs (B) or the dash lights brightness controller-odometer select/reset switch.
