Power Trunk / Liftgate Lock Switch: Diagrams

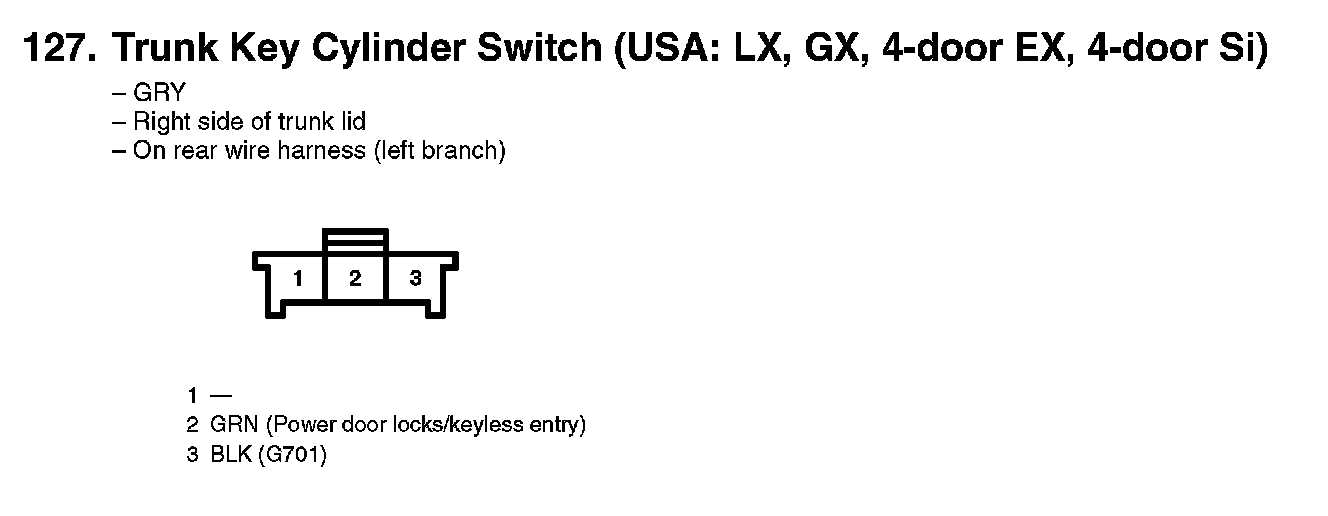

127. Trunk Key Cylinder Switch (USA: LX, GX, 4-door EX, 4-door Si):

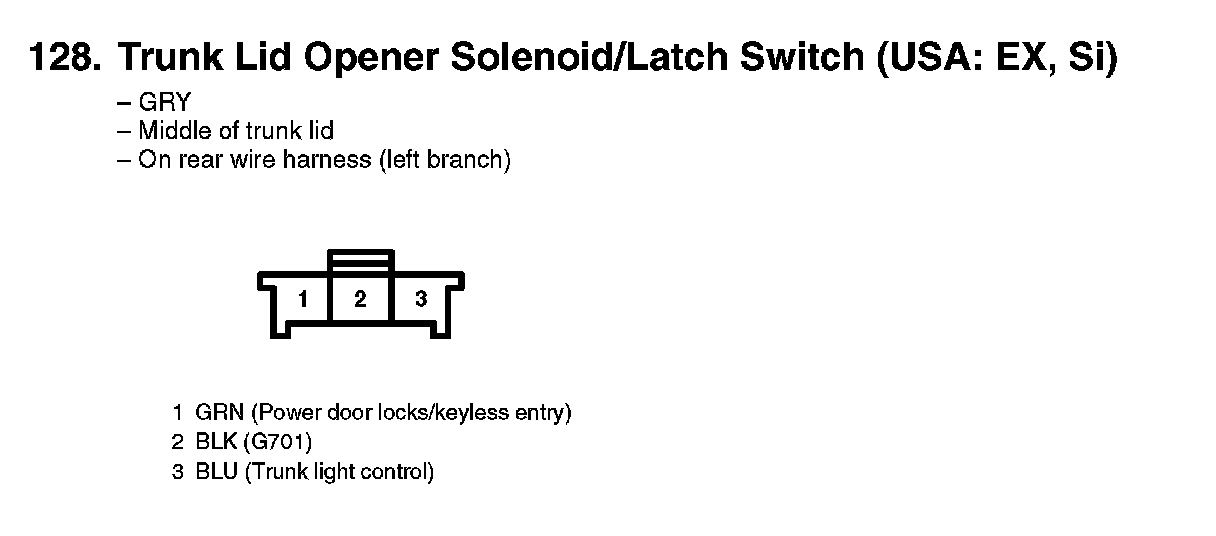

128. Trunk Lid Opener Solenoid/Latch Switch (USA: EX, Si):
