Impact Sensor: Locations

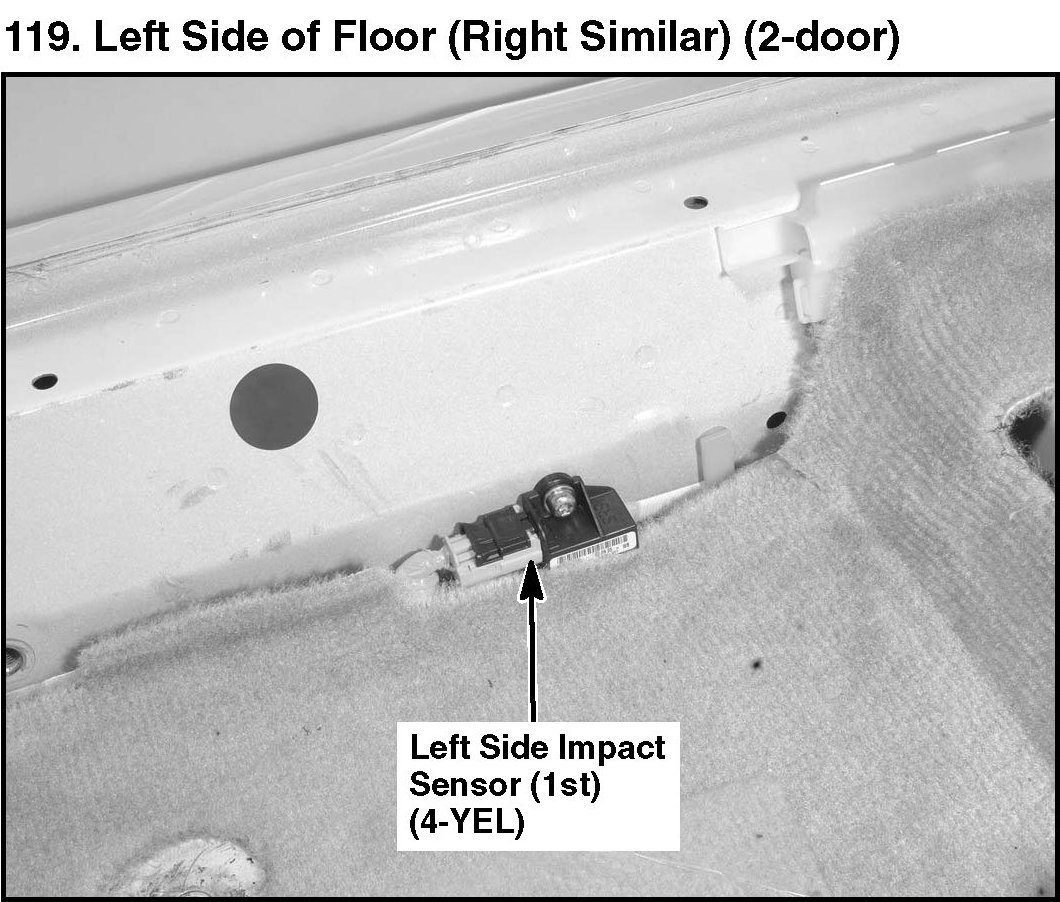

119. Left Side Of Floor (Right Similar) (2-door):

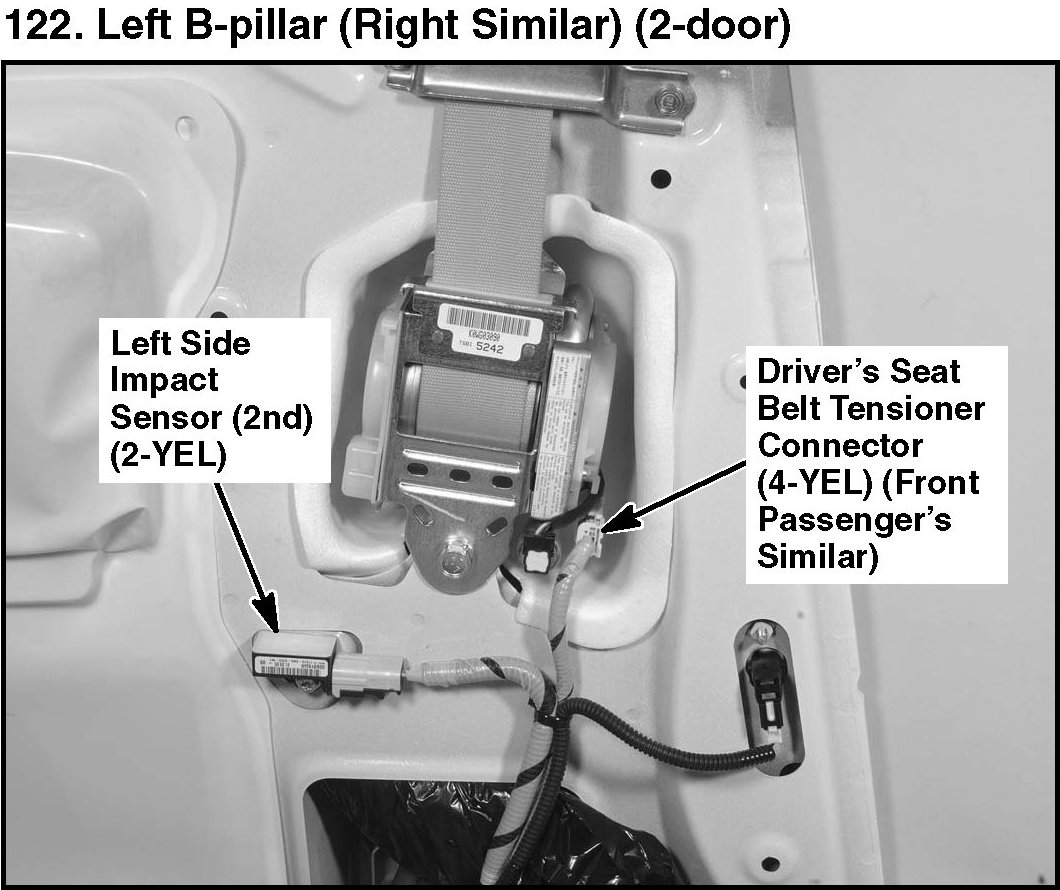

122. Left B-pillar (Right Similar) (2-door):

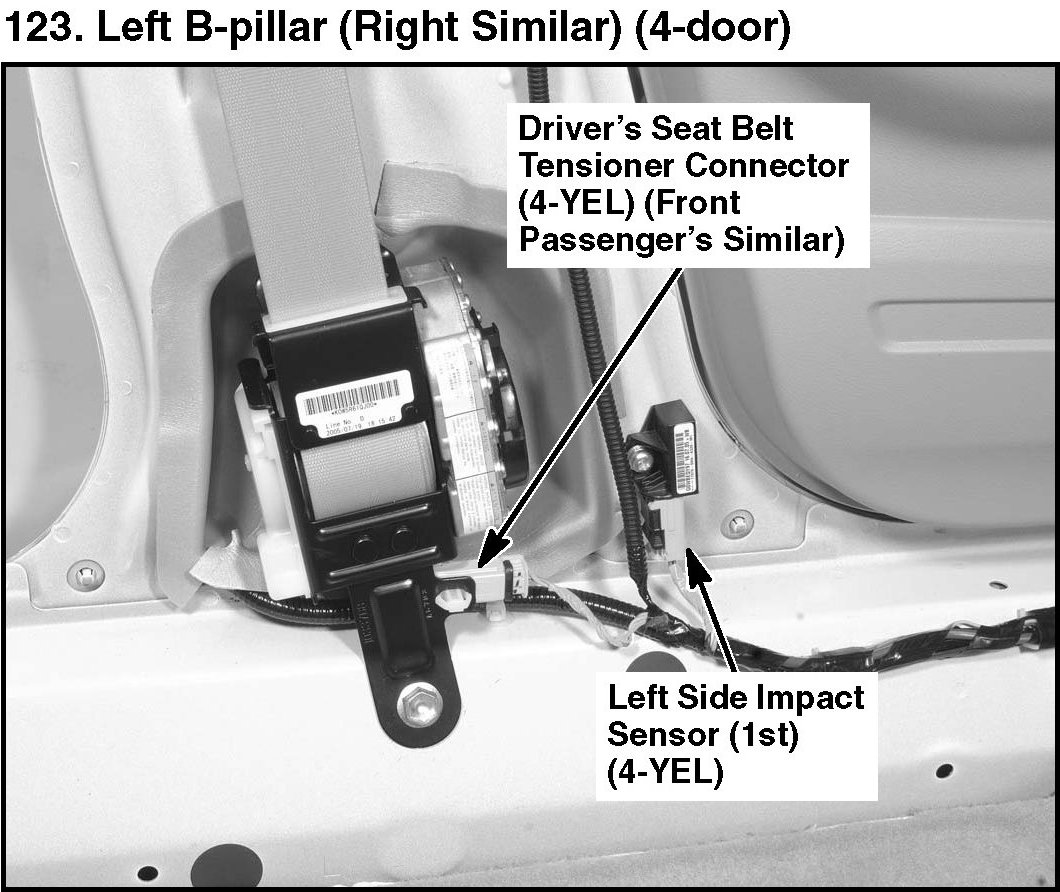

123. Left B-pillar (Right Similar) (4-door):

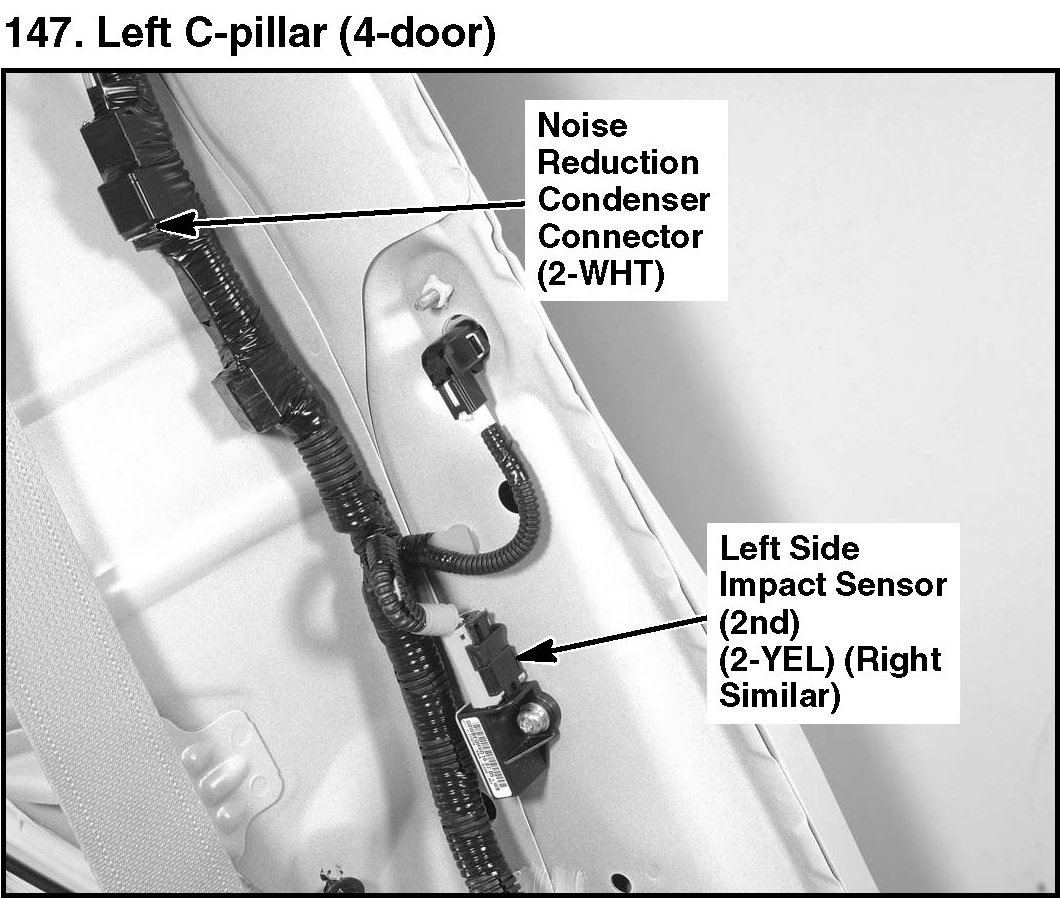

147. Left C-pillar (4-door):

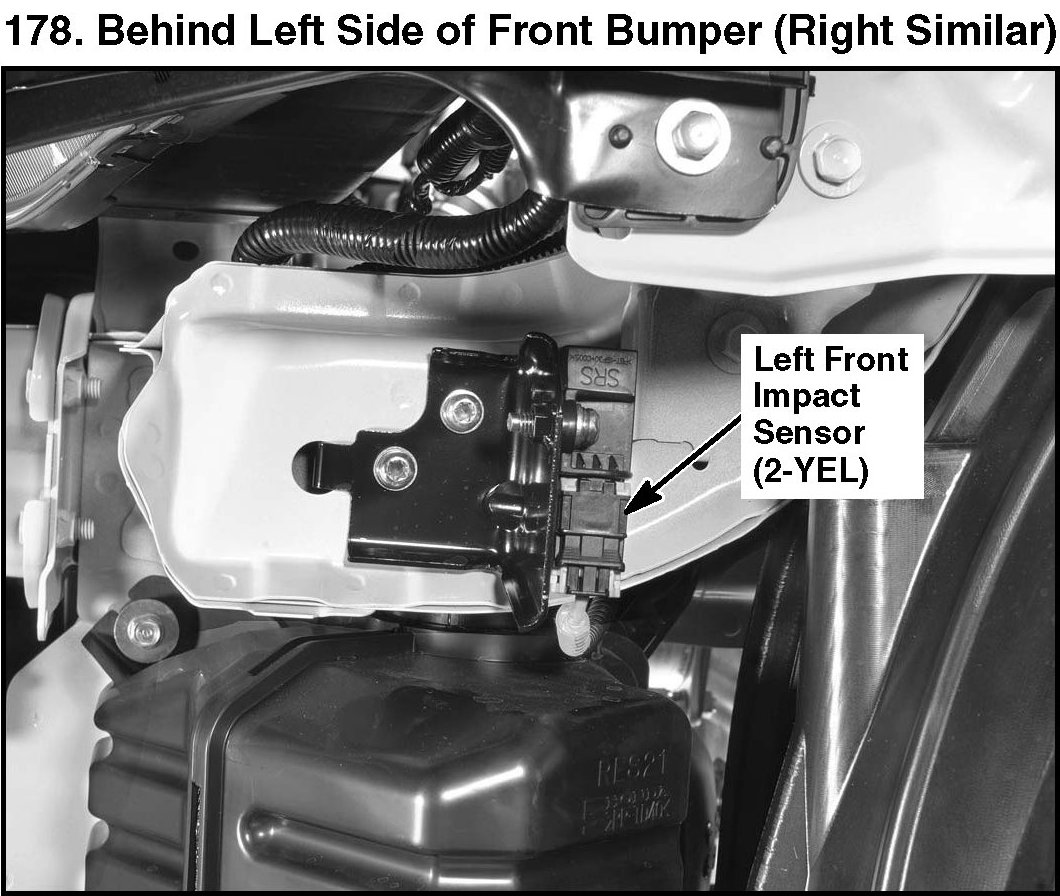

178. Behind Left Side Of Front Bumper (Right Similar):

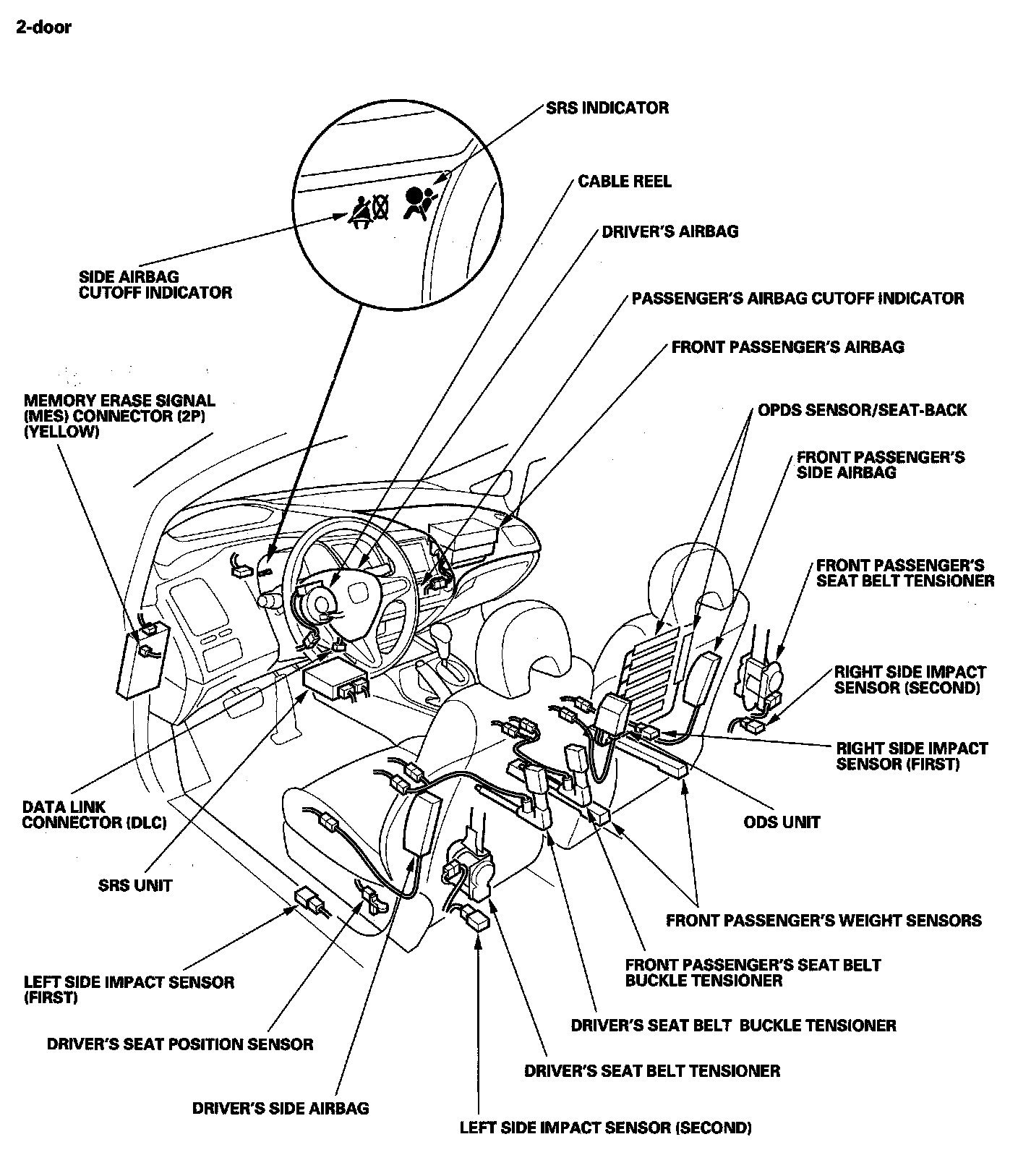

SRS Component Location Index:

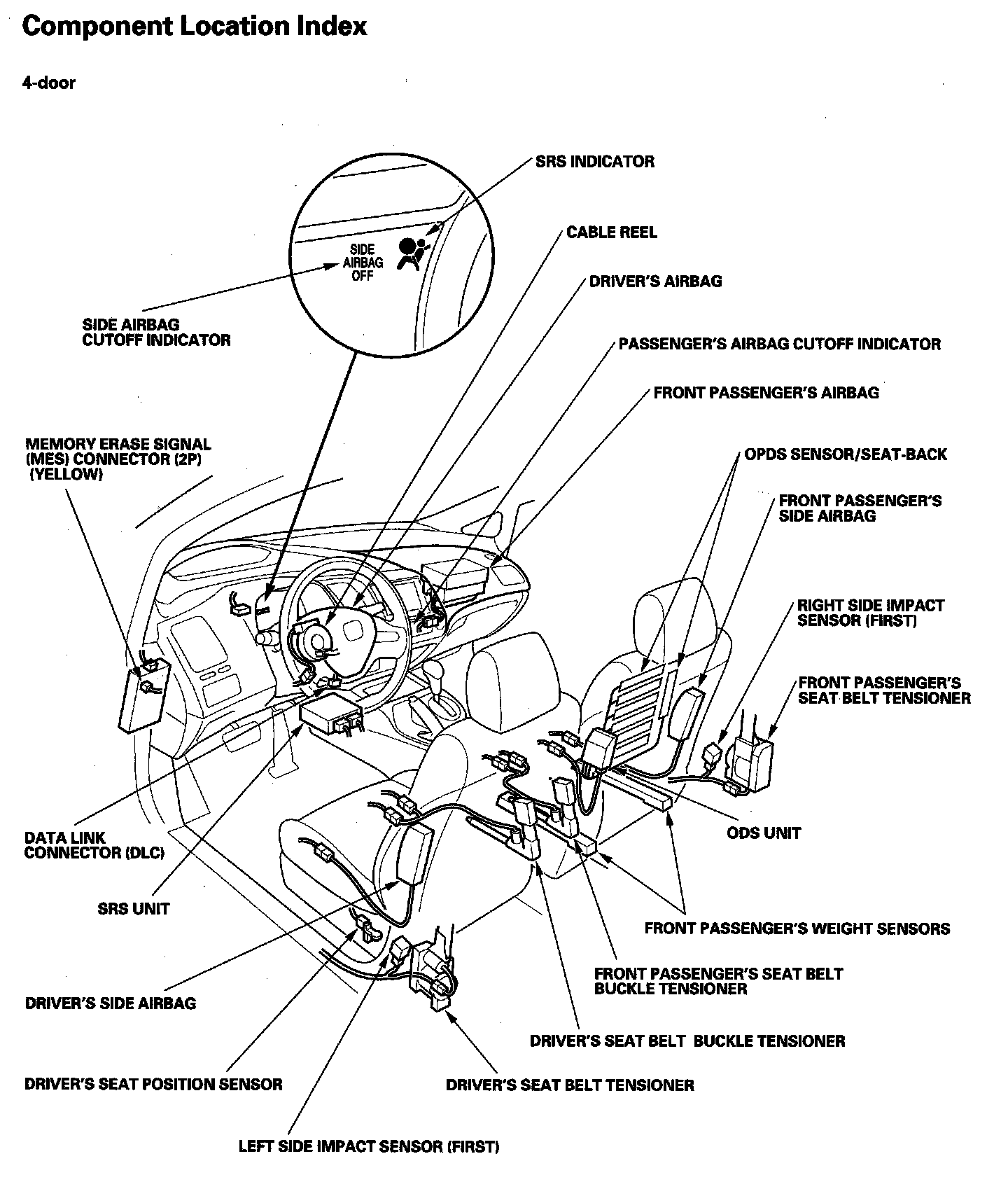

SRS Component Location Index:

SRS Component Location Index:
