Impact Sensor: Diagrams

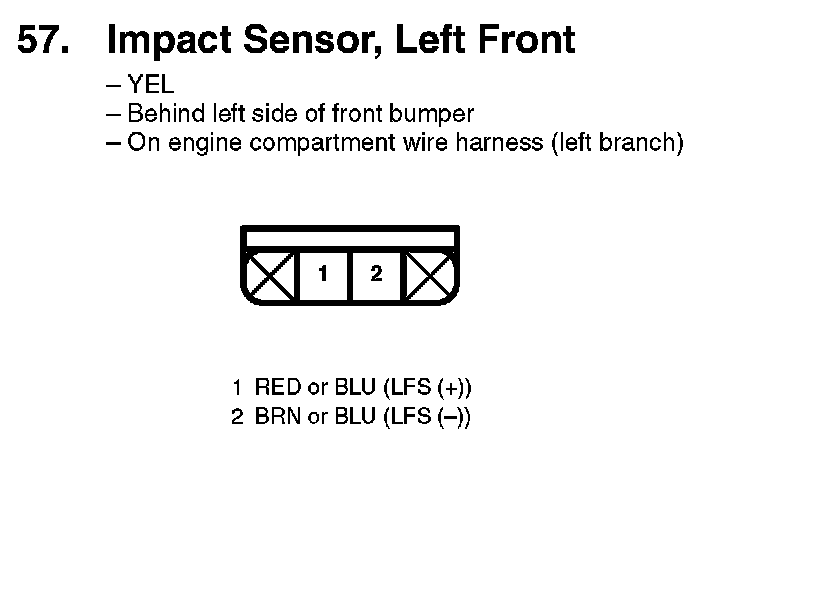

57. Impact Sensor, Left Front:

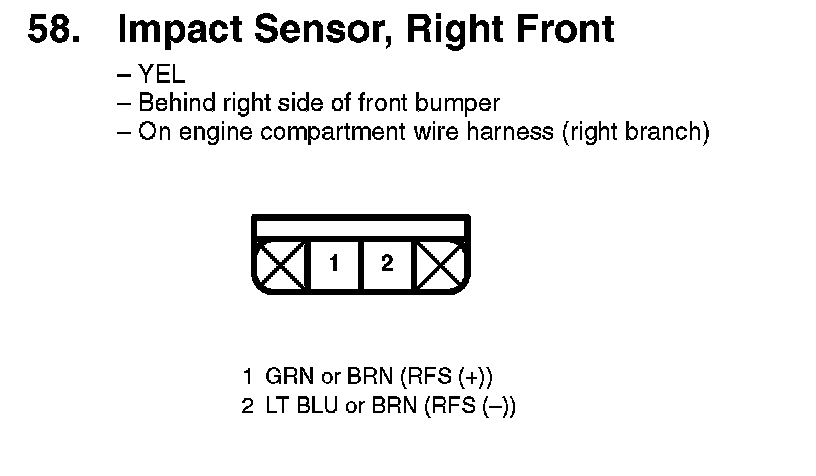

58. Impact Sensor, Right Front:

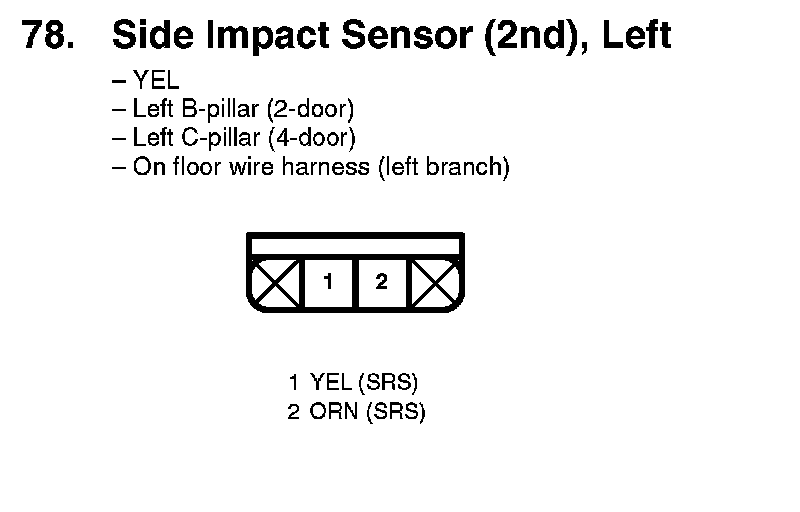

78. Side Impact Sensor (2nd), Left:

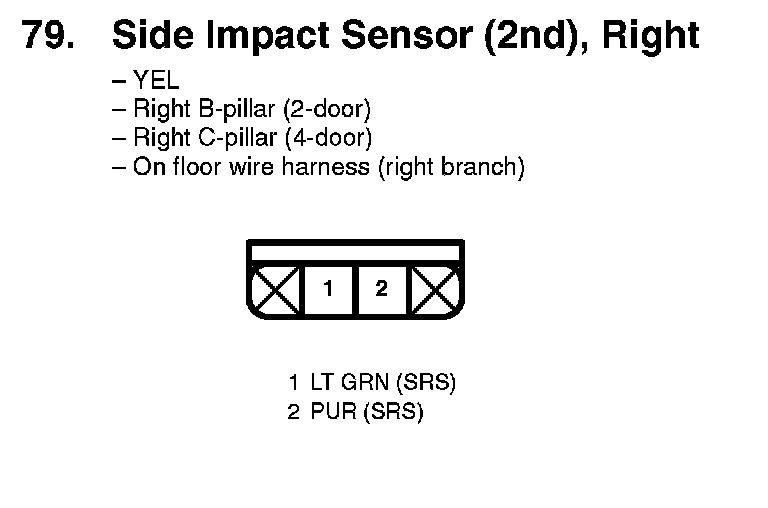

79. Side Impact Sensor (2nd), Right:

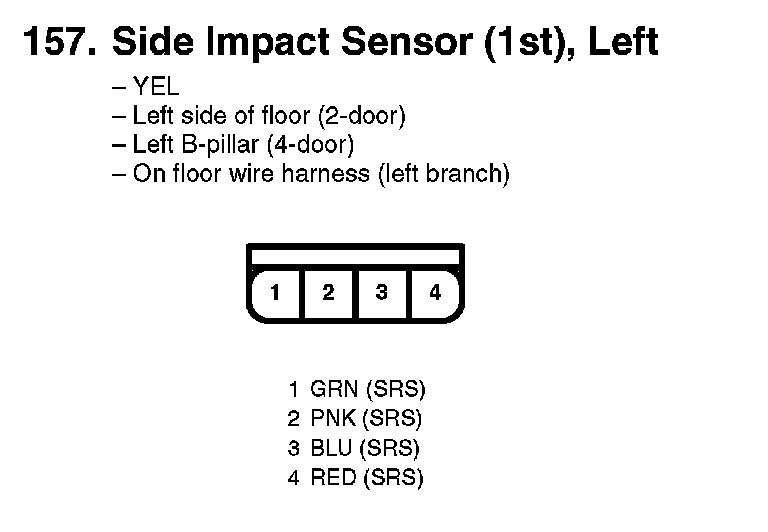

157. Side Impact Sensor (1st), Left:

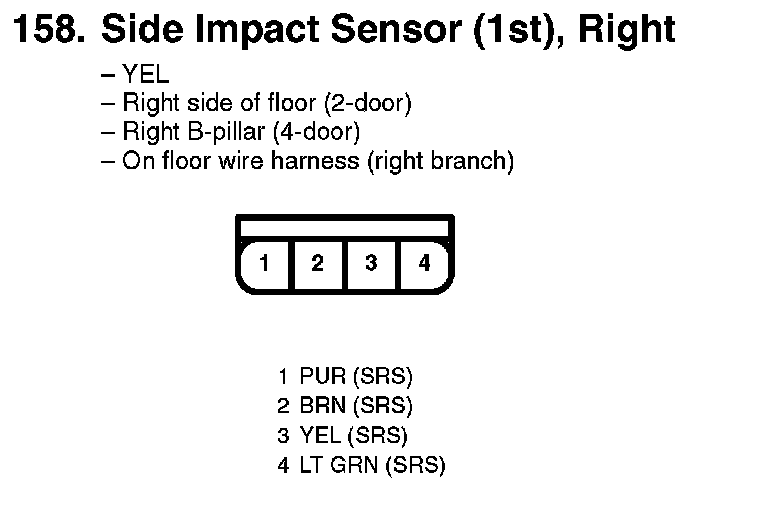

158. Side Impact Sensor (1st), Right:
