SRS Unit Replacement

SRS Unit Replacement

Removal

NOTE: If you are disconnecting only SRS unit connector A, skip step 2.

1. Disconnect the battery negative cable, then wait for 3 minutes before starting work.
2. Disconnect both seat belt tensioner connectors and both seat belt buckle tensioner connectors.
3. Remove the center console.

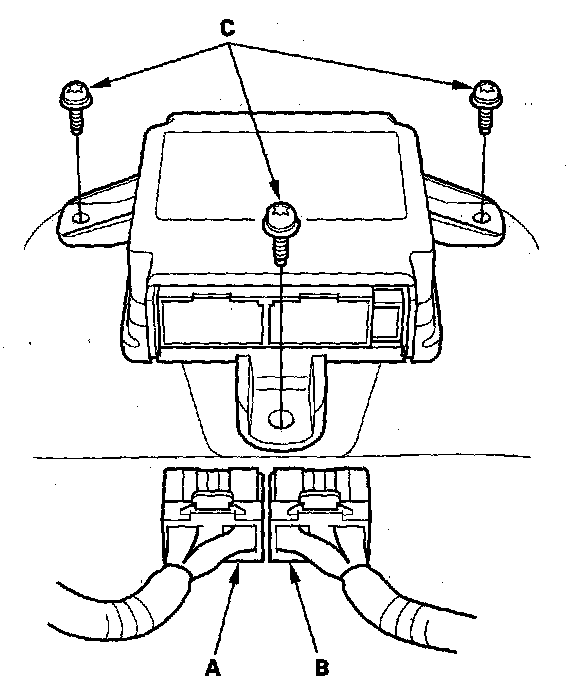

4. Disconnect SRS unit connector A (28P), connector B (28P) and remove the TORX bolts (C), then pull out the SRS unit.






Installation

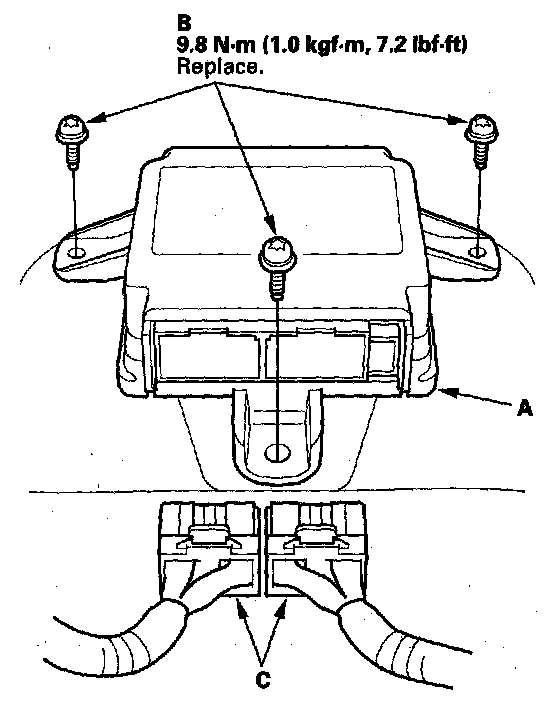

1. Install the SRS unit (A) with new TORX bolts (B), then connect the connectors (C) to the SRS unit-push them into position until they click.

NOTE: Be sure the SRS unit is sitting squarely against it's bracket before torquing the TORX bolt.






2. Reconnect both seat belt tensioner connectors and seat belt buckle tensioner connector.
3. Reconnect the negative cable to the battery.
4. Calibrate the ODS unit.
5. Do the ODS unit operation check.
6. After installing the SRS unit, confirm proper system operation: Turn the ignition switch ON (II); the SRS indicator should come on for about 6 seconds and then go off.
7. Reinstall all removed parts.
