Home >> Honda >> 2008 >> Civic Si L4-2.0L >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Brakes and Traction Control >> Traction Control Module >> Locations

Traction Control Module: Locations

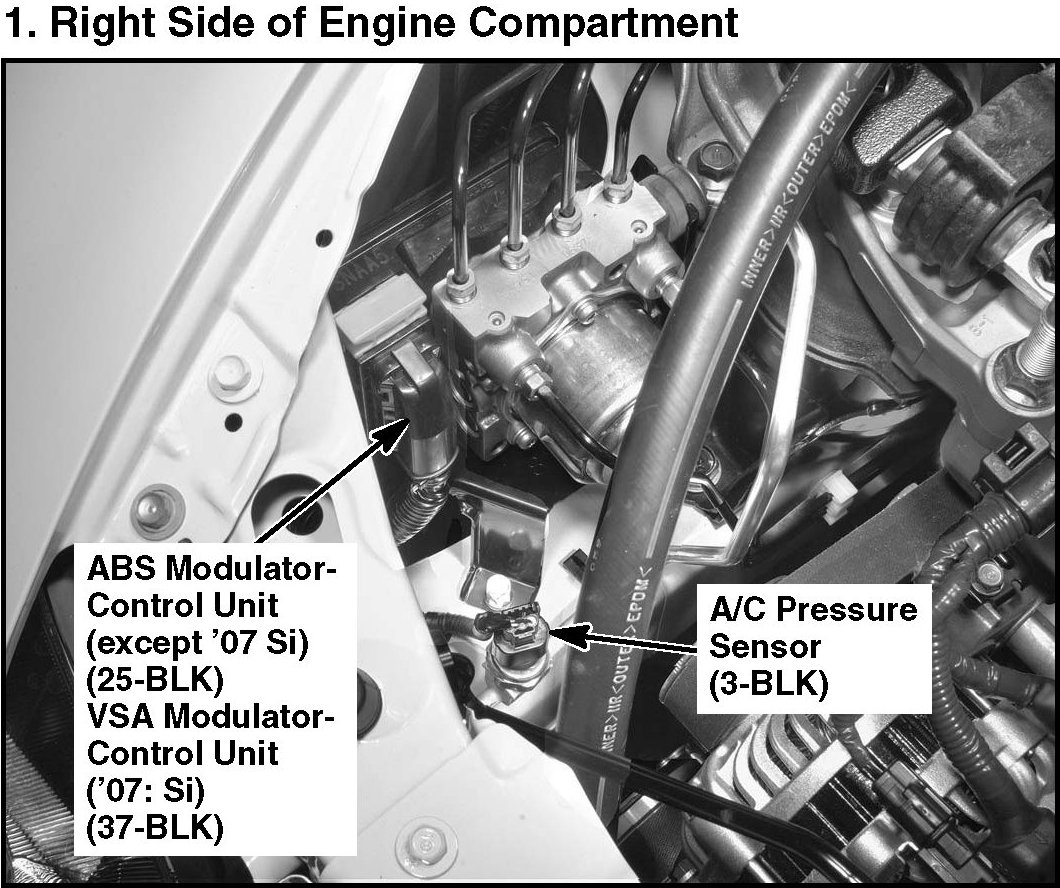

1. Right Side Of Engine Compartment:

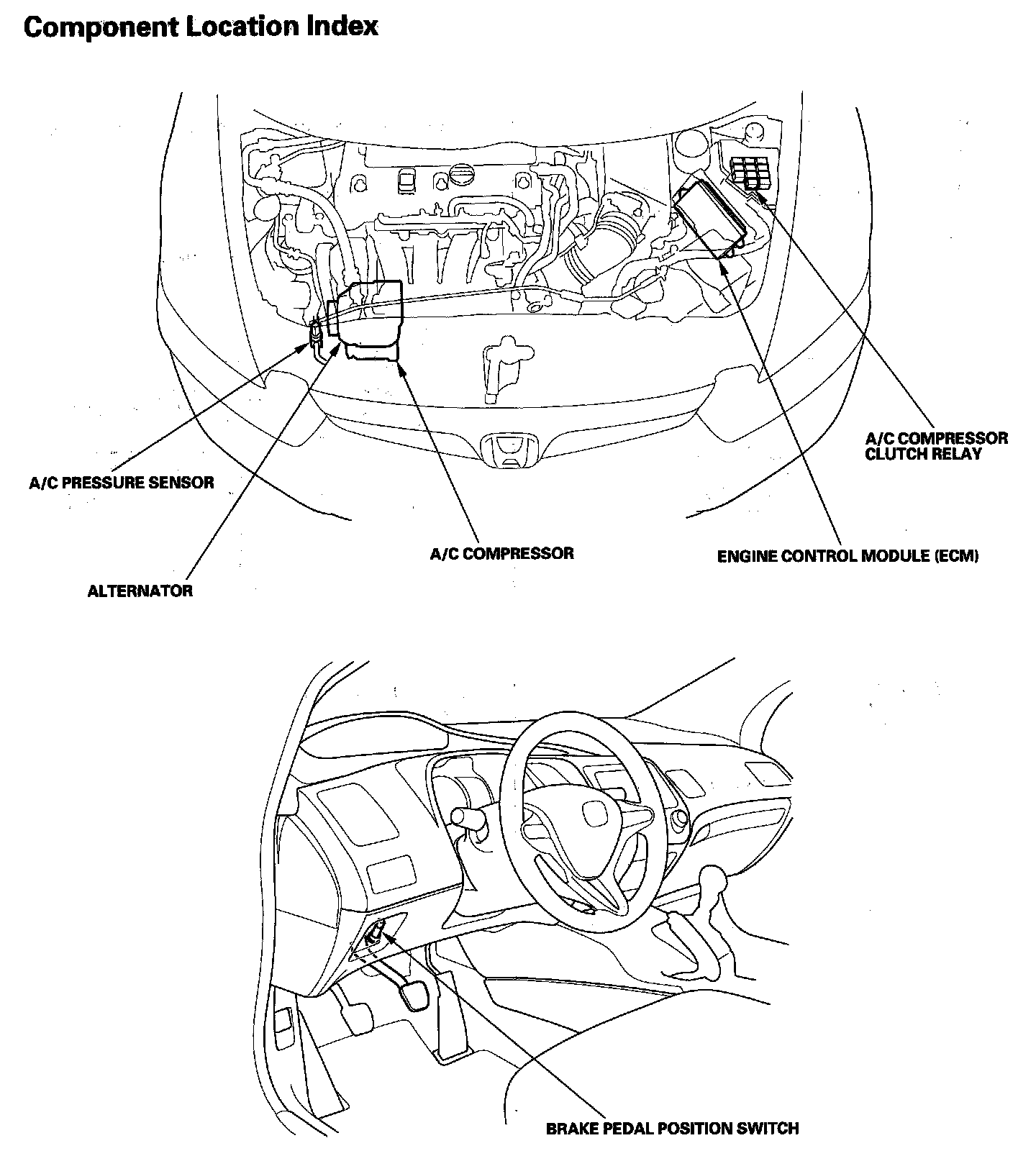

Idle Control System Component Location Index:



Heating/Air Conditioning Component Location Index:
