Clutch Pedal Position Sensor / Switch
>>
Locations
Clutch Pedal Position Sensor / Switch: Locations
Component Location Index

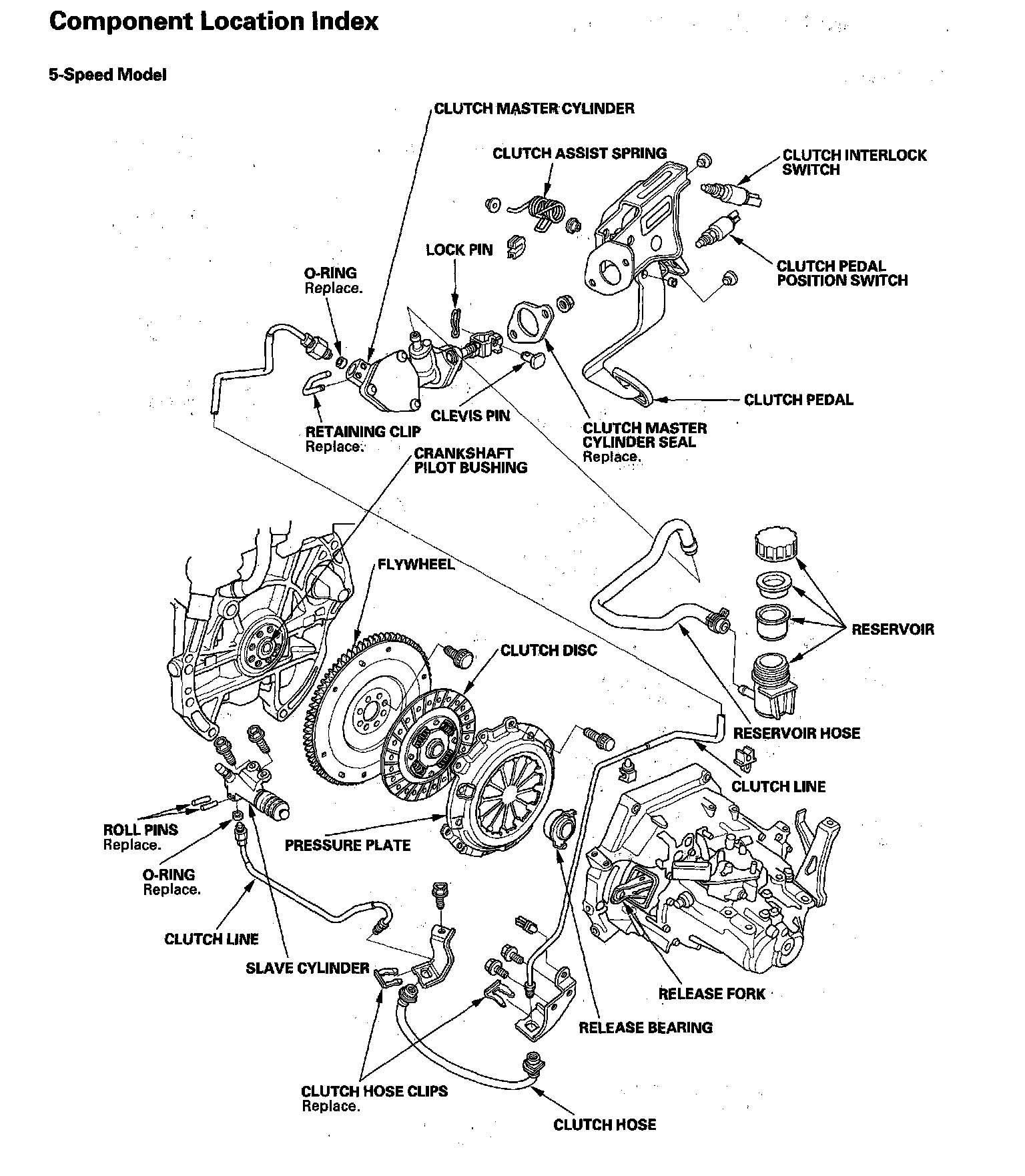

Clutch Component Location Index 5-Speed Model:

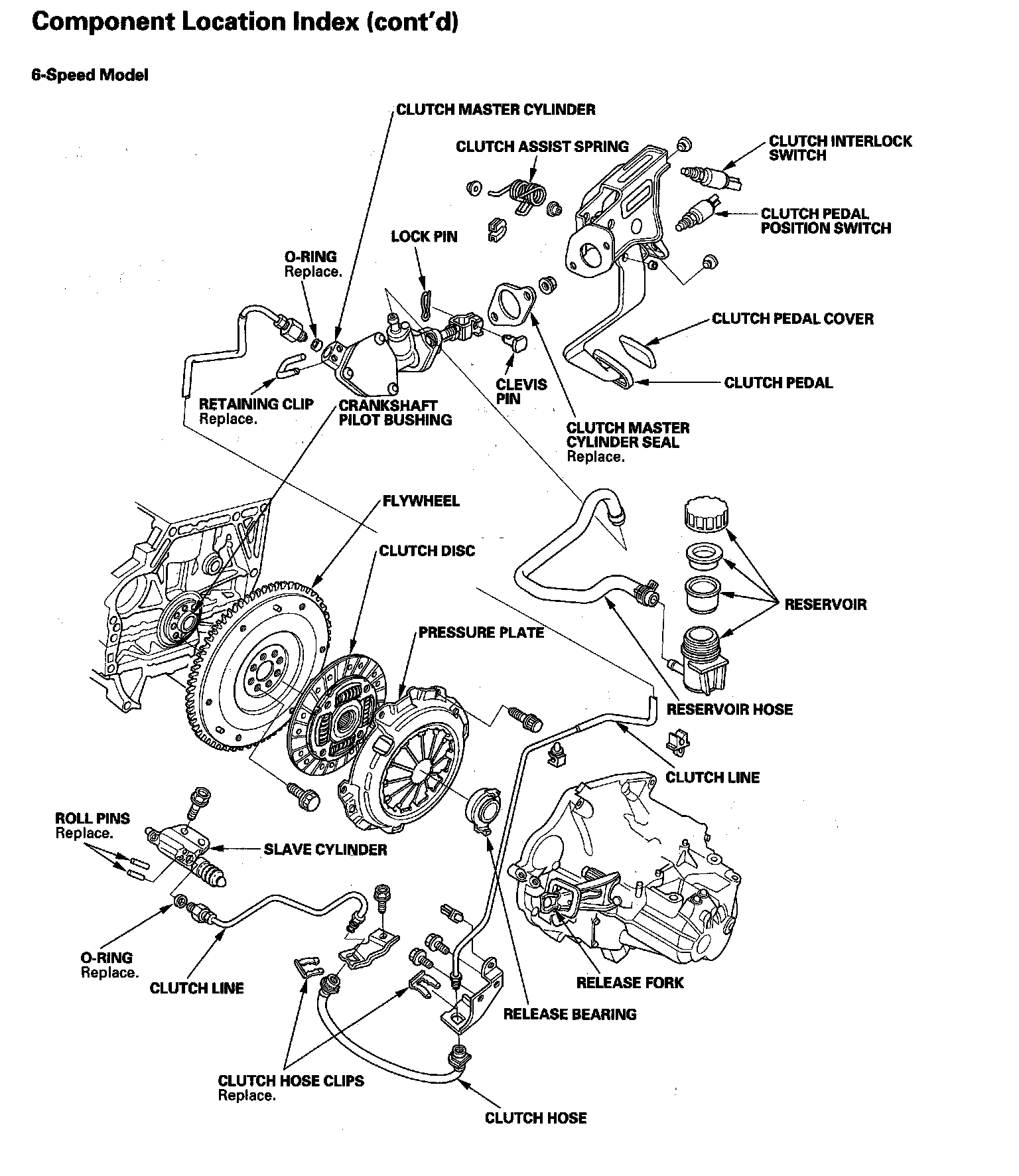

Clutch Component Location Index 6-Speed Model:
