ECM/PCM Electrical Connections

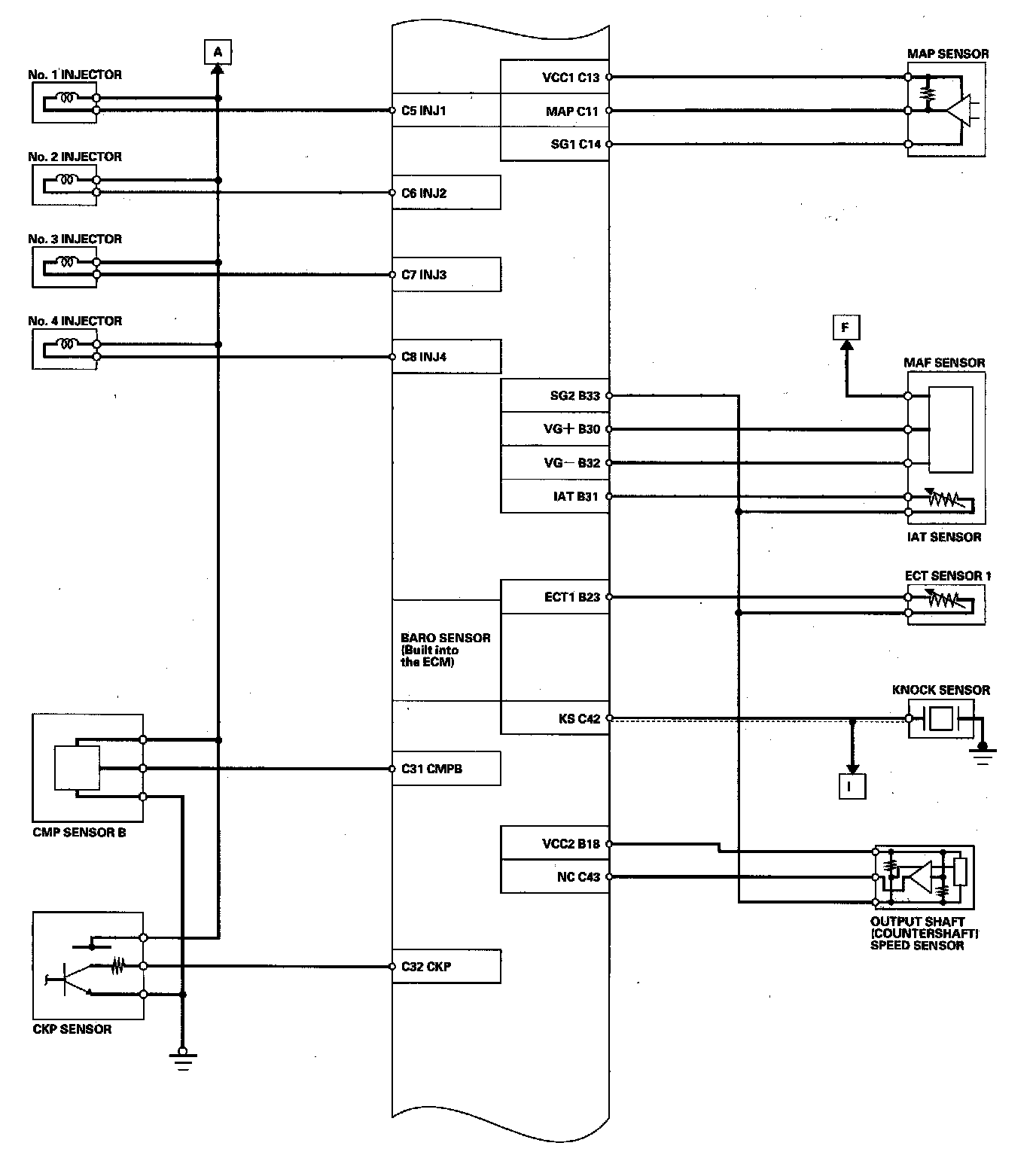

ECM Electrical Connections (Part 1):

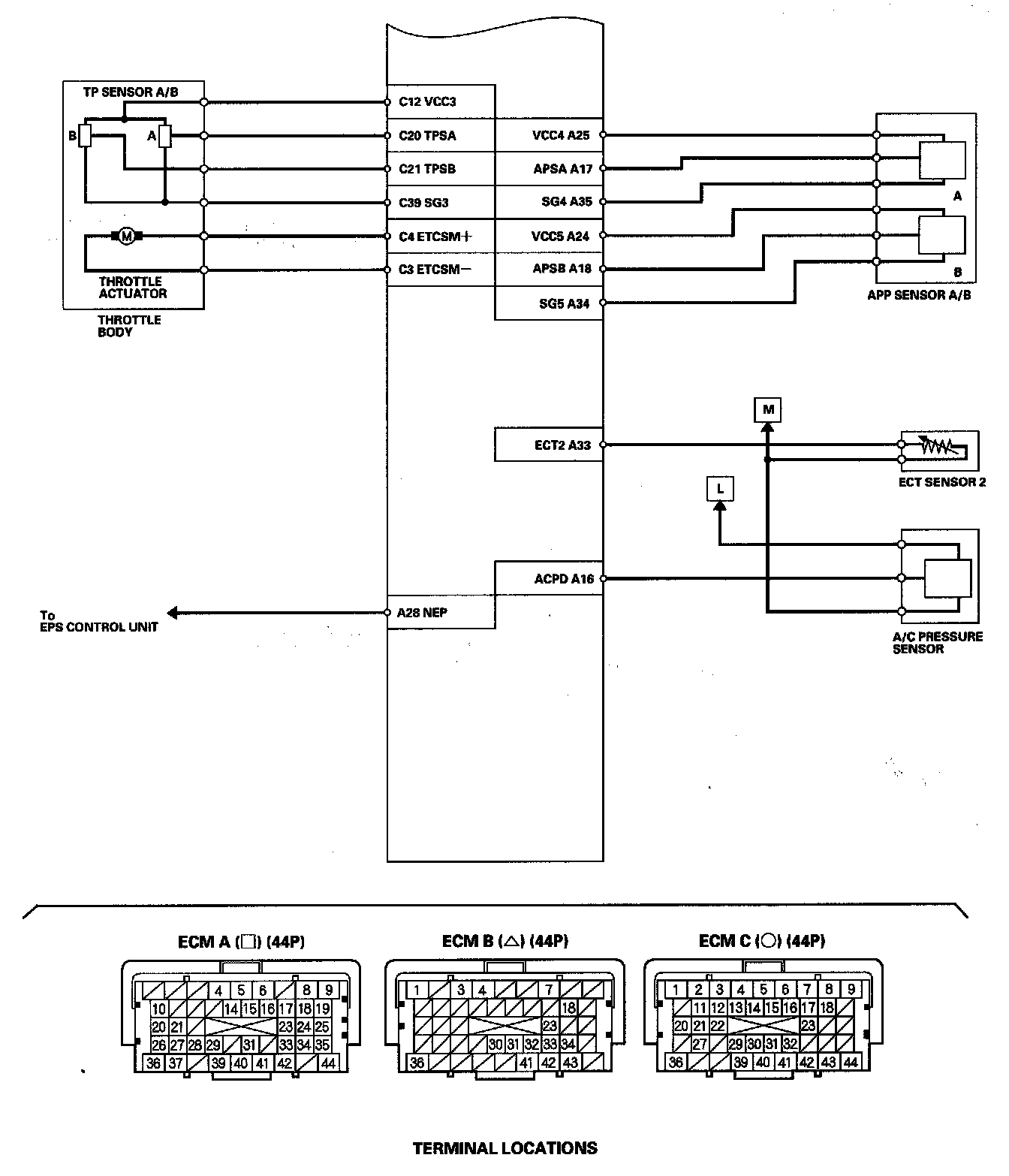

ECM Electrical Connections (Part 2):

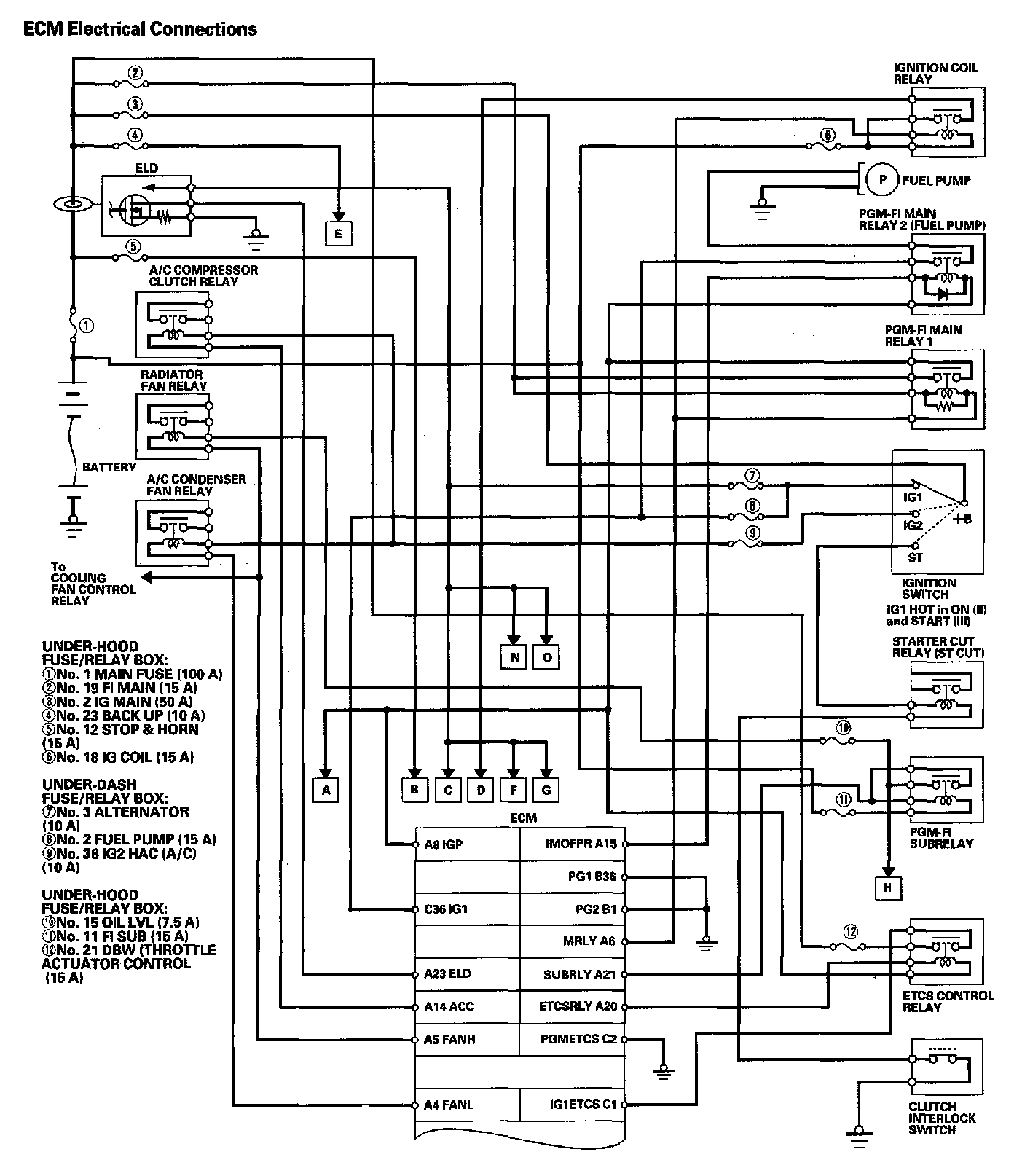

ECM Electrical Connections (Part 3):

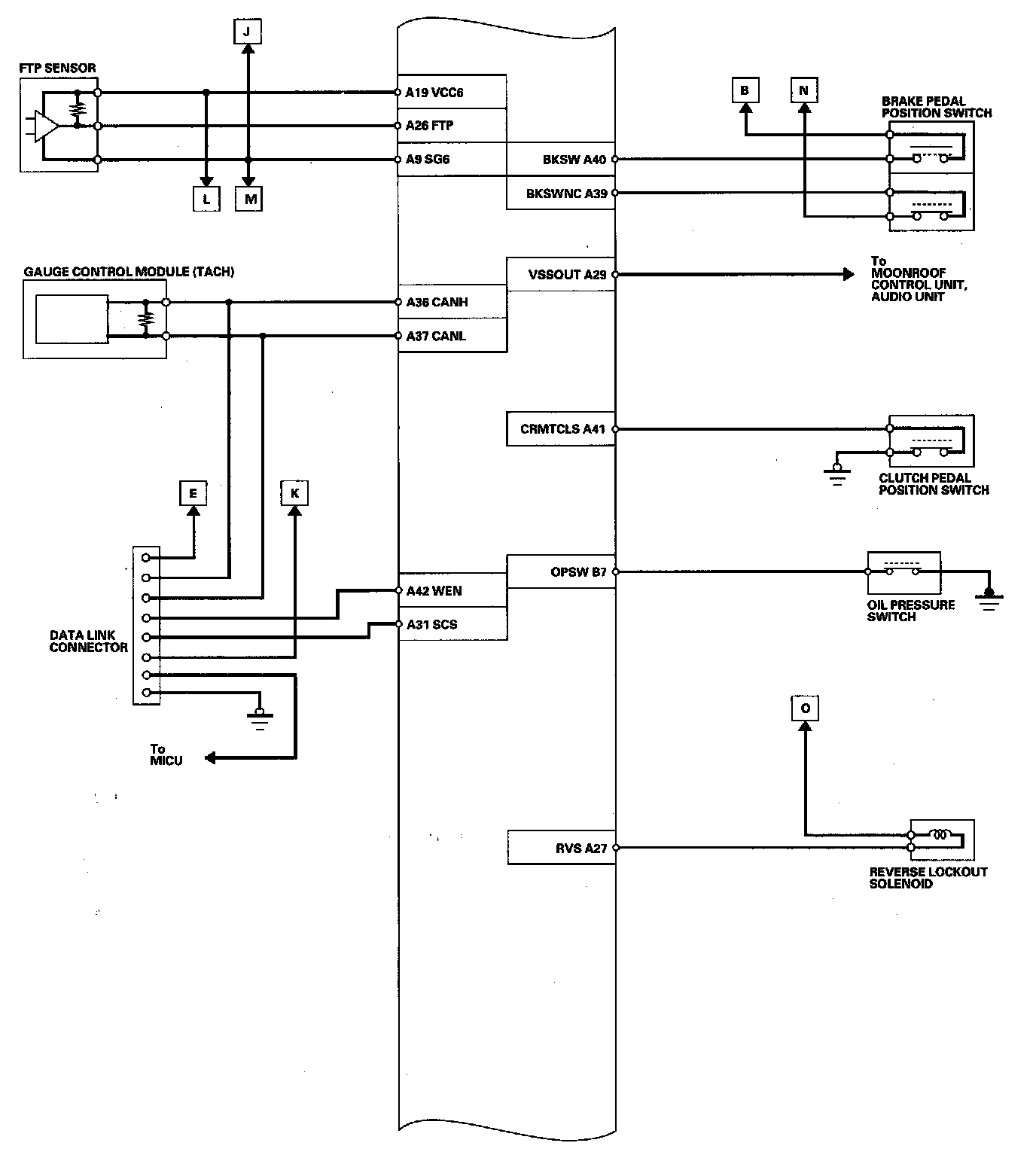

ECM Electrical Connections (Part 4):



ECM Electrical Connections (Part 5):
