Pinout Values and Diagnostic Parameters

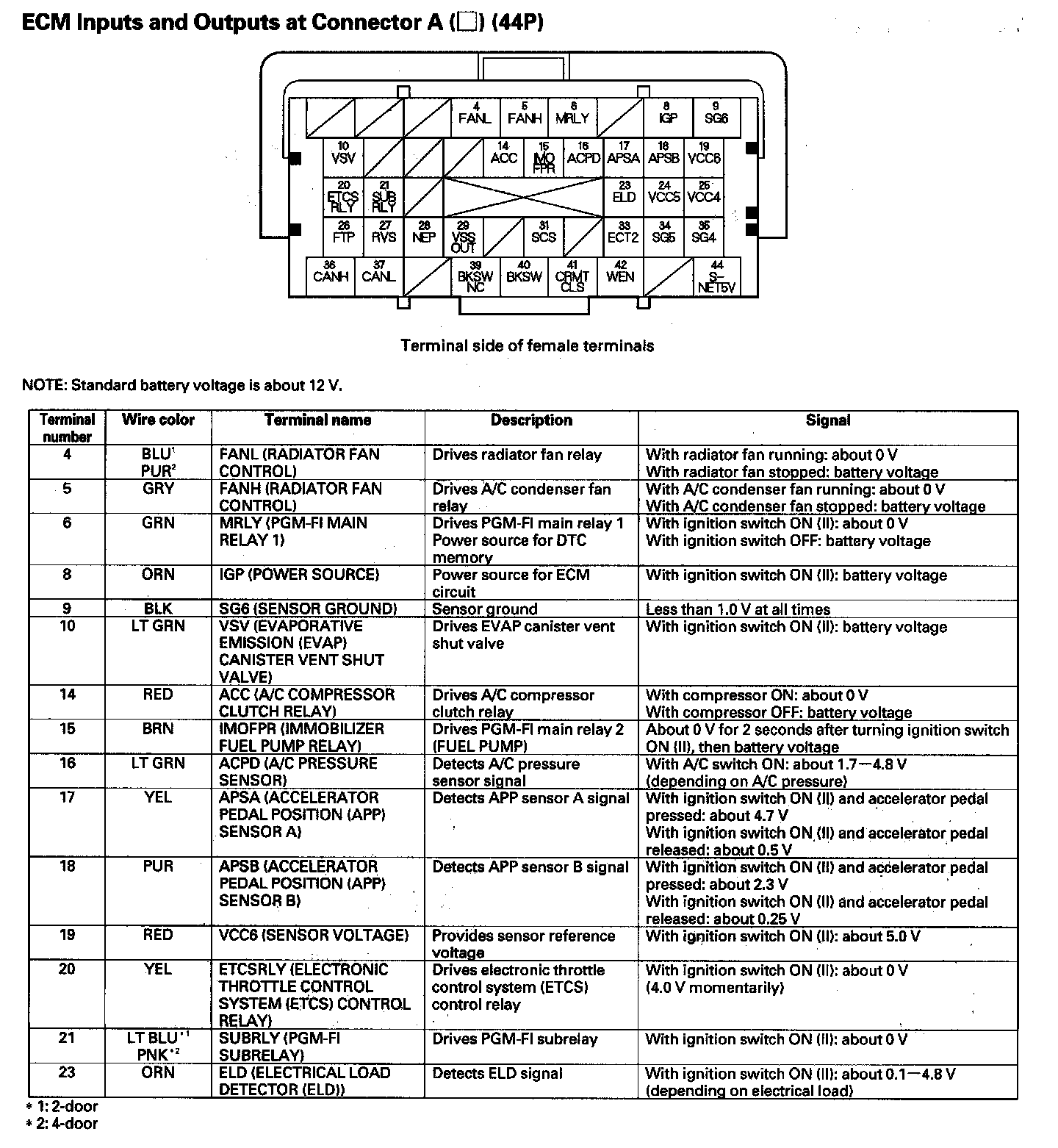

ECM Inputs And Outputs At Connector A (44P) (Part 1):

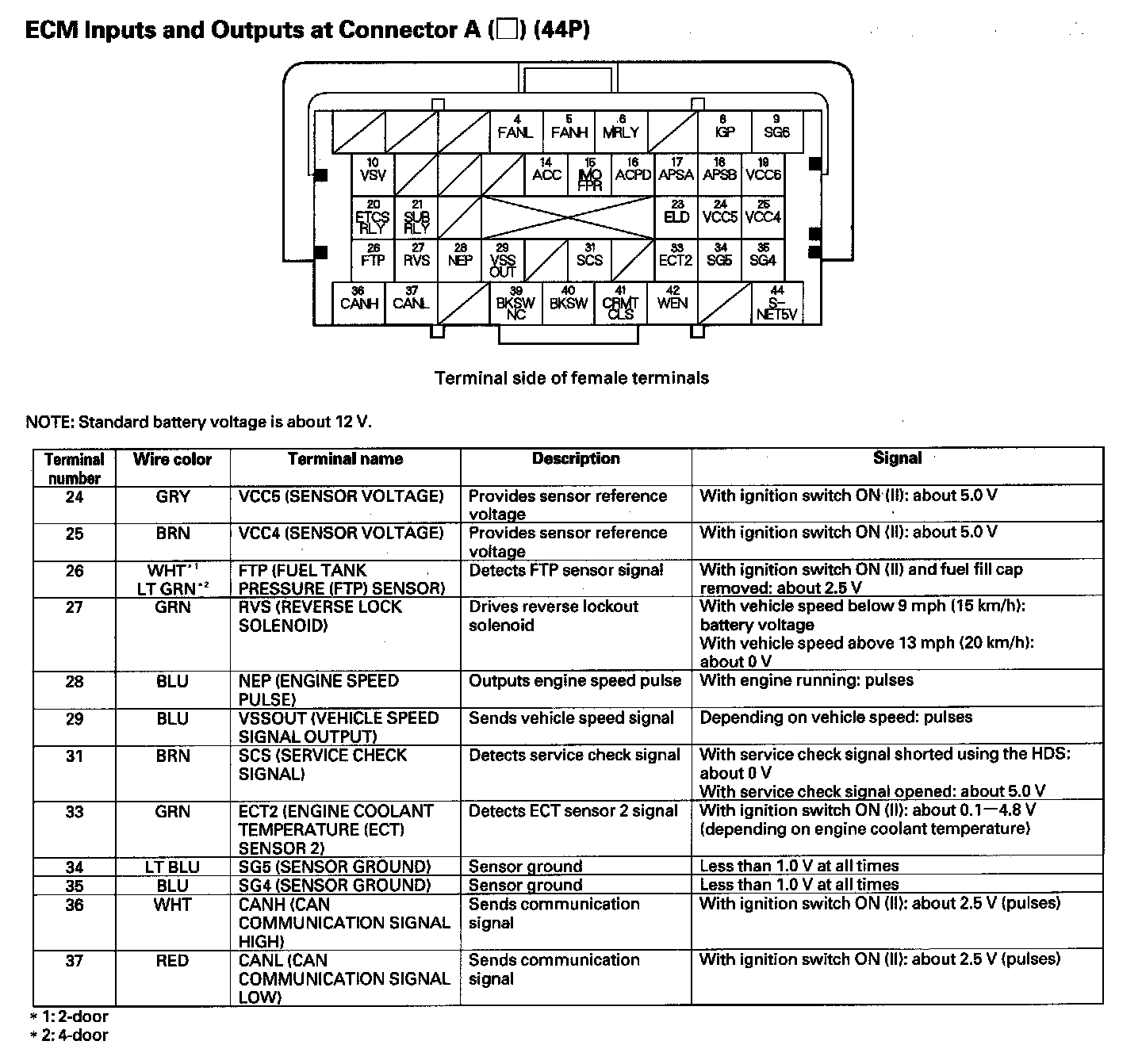

ECM Inputs And Outputs At Connector A (44P) (Part 2):

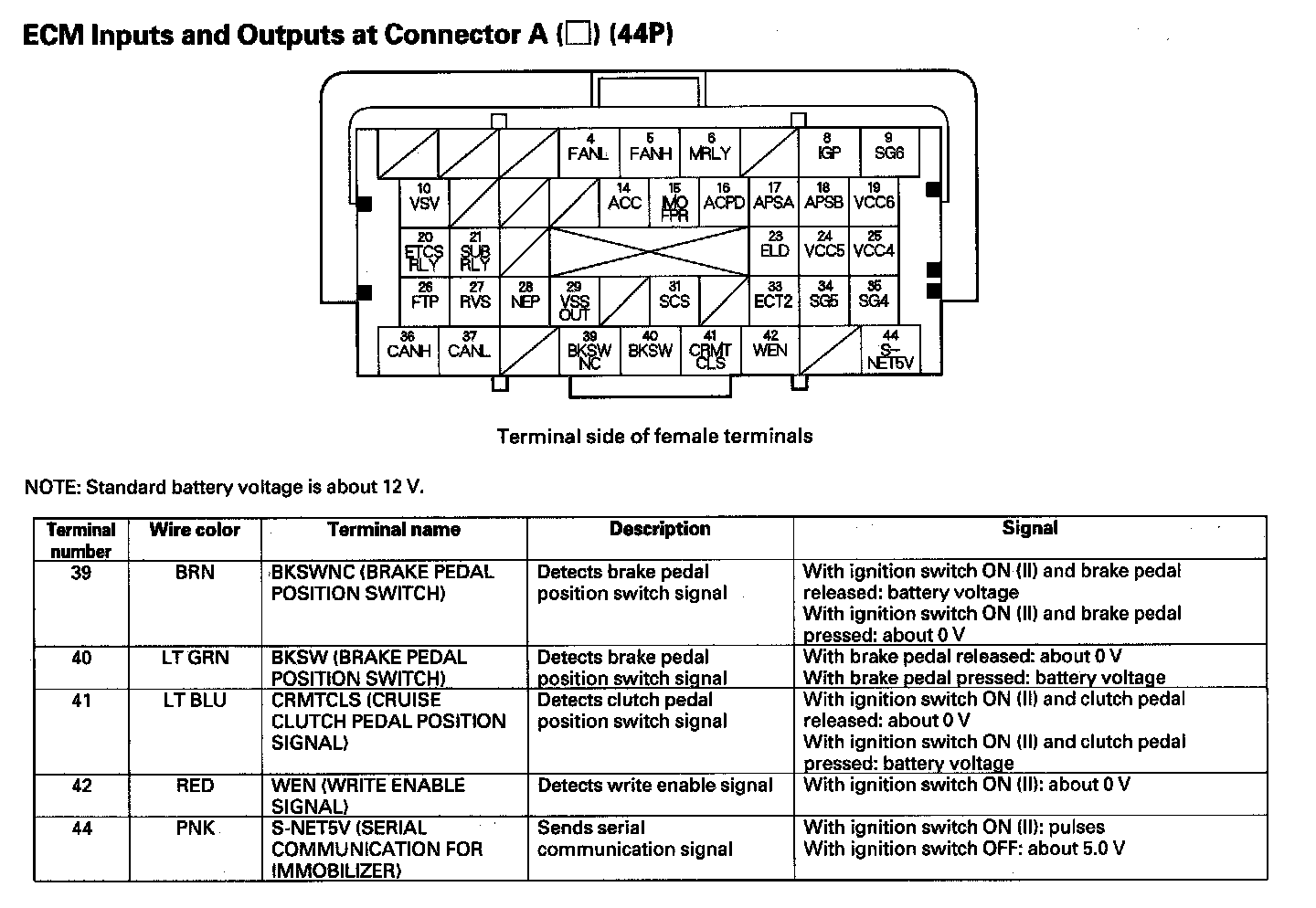

ECM Inputs And Outputs At Connector A (44P) (Part 3):

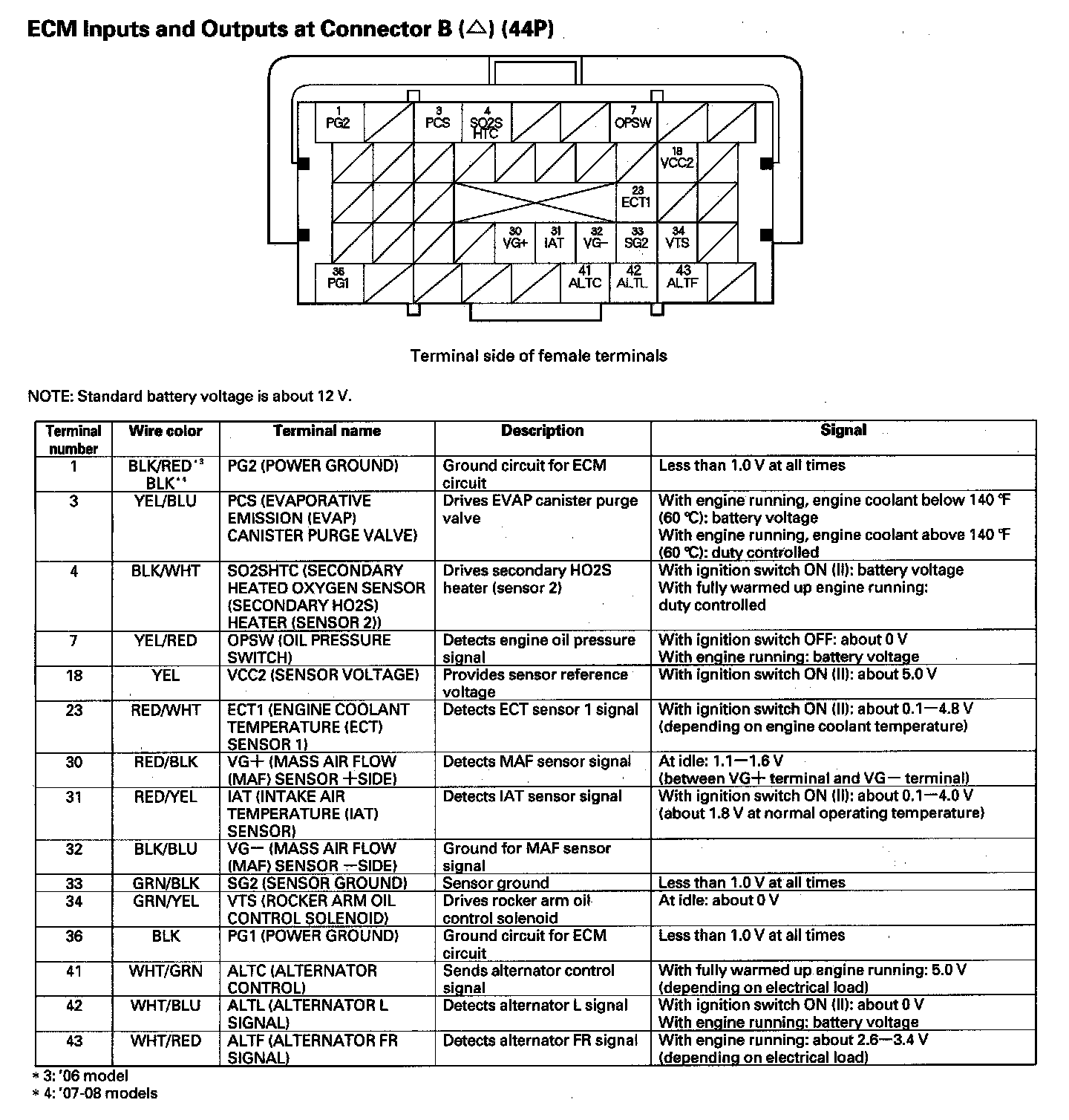

ECM Inputs And Outputs At Connector B (44P):

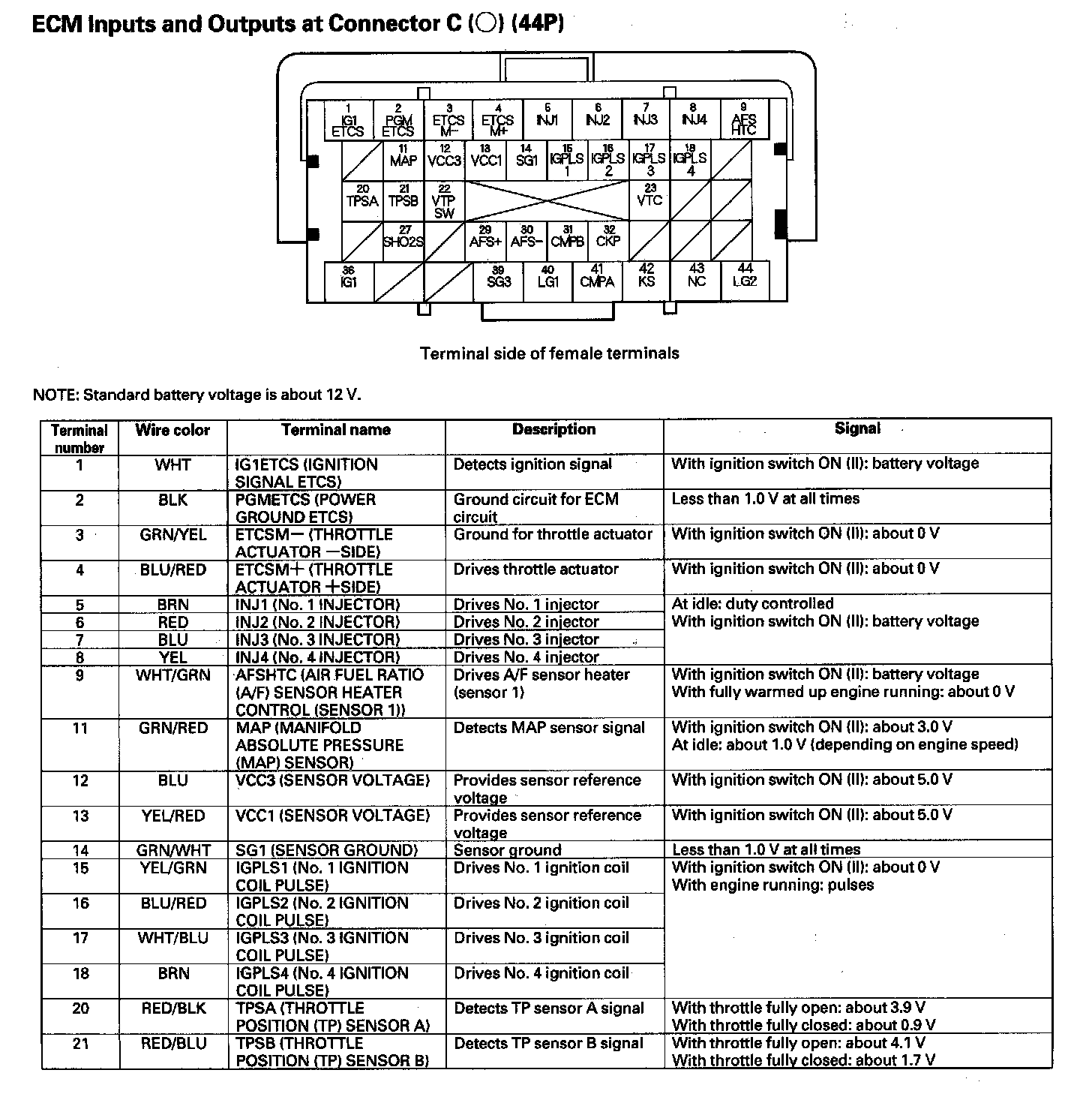

ECM Inputs And Outputs At Connector C (44P) (Part 1):

ECM Inputs And Outputs At Connector C (44P) (Part 2):
