Fuel Tank Pressure Sensor: Service and Repair

FTP Sensor Replacement

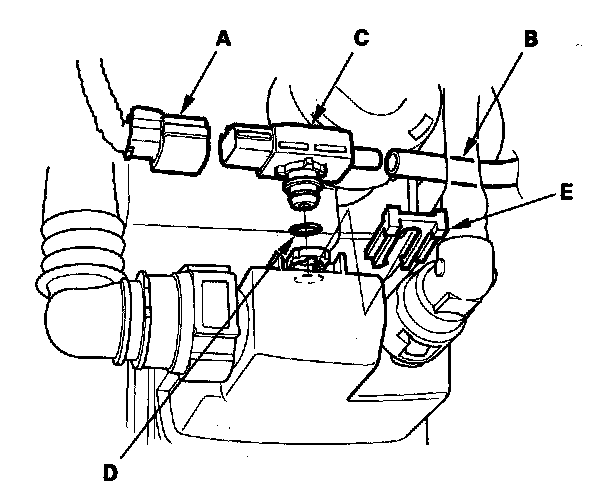

1. Remove the cover.
2. Disconnect the FTP sensor connector (A).






3. Disconnect the hose (B), then remove the FTP sensor (C).
4. Install the parts in the reverse order of removal with a new O-ring (D) and a new retainer (E).
