ECT Sensor 2 Replacement
ECT Sensor 2 Replacement1. Drain the engine coolant.
2. Remove the splash shield.

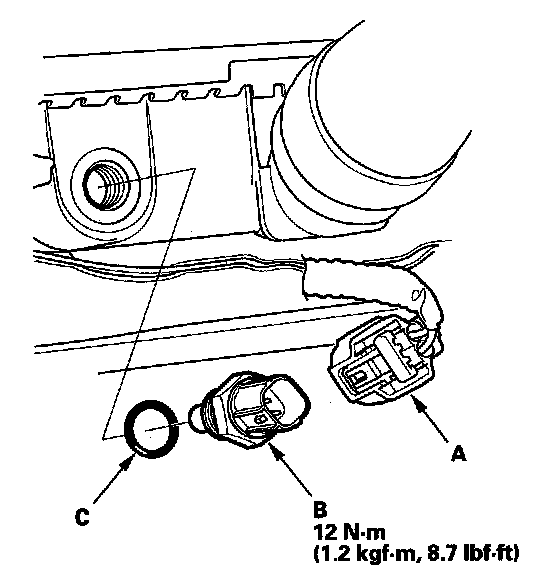

3. Disconnect the ECT sensor 2 2P connector (A), then remove ECT sensor 2 (B).
4. Install parts in the reverse order of removal with a new O-ring (C).
5. Install the splash shield.
6. Refill the radiator with engine coolant.
