Electronic Throttle Control System

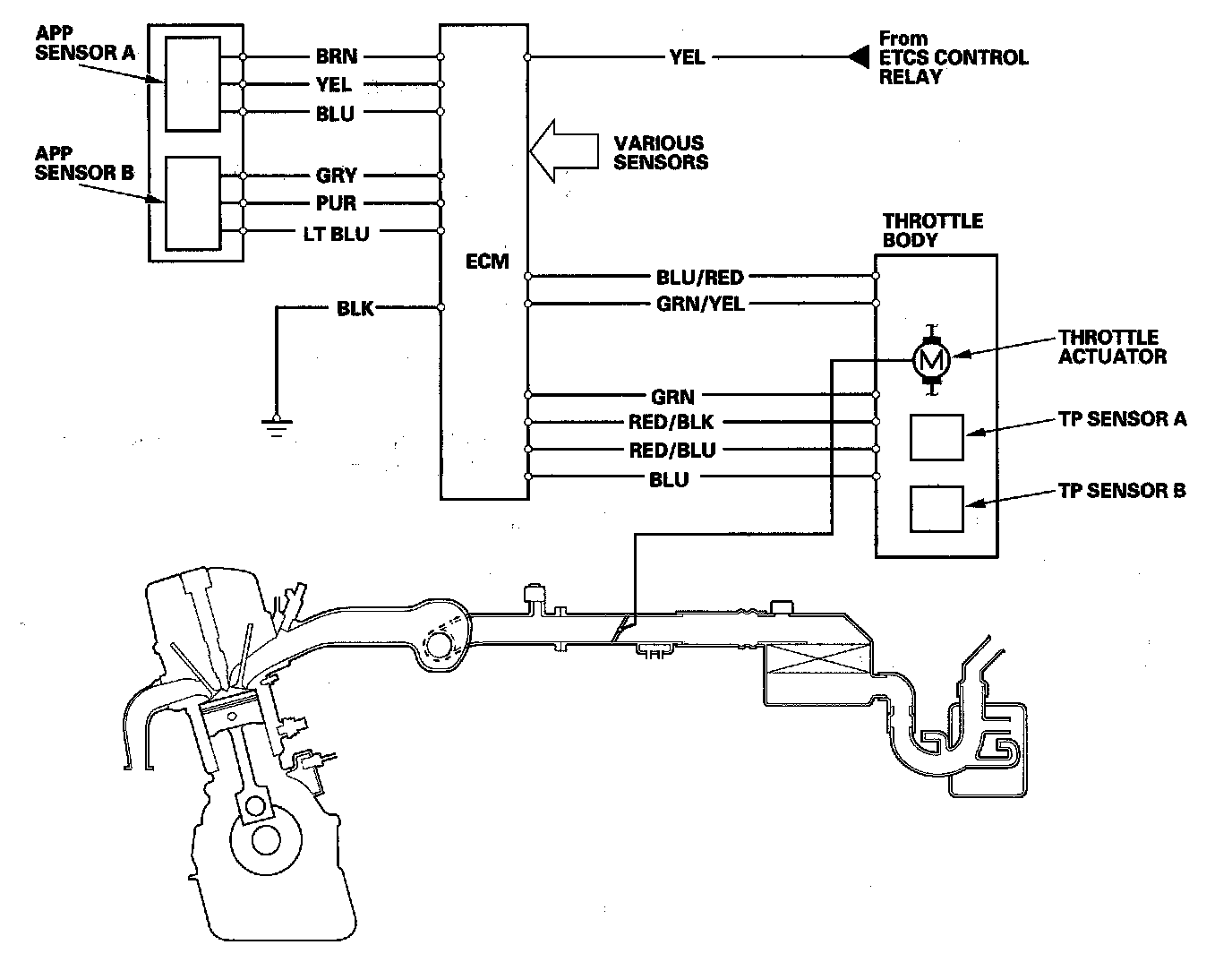

Electronic Throttle Control System DiagramThe electronic throttle control system consists of the throttle actuator, throttle position (TP) sensor A/B, accelerator pedal position (APP) sensor A/B, the electronic throttle control system (ETCS) control relay, and the ECM.
