Home >> Honda >> 2008 >> Civic Si L4-2.0L >> Repair and Diagnosis >> Locations >> Connector Locations >> Connector Location By Connector Number >> C606-C861 >> C852

C852

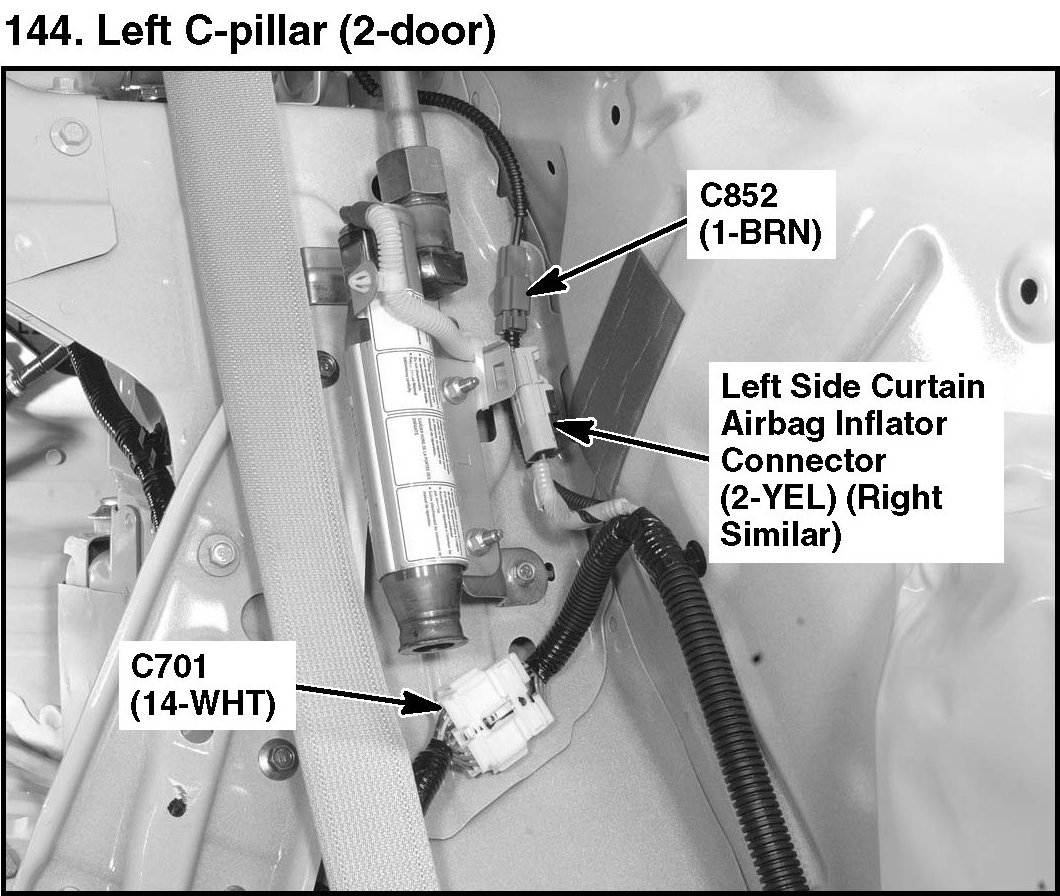

144. Left C-pillar (2-door):
