Trunk Lid Latch Switch Test

Trunk Lid Latch Switch Test

1. Open the trunk lid.

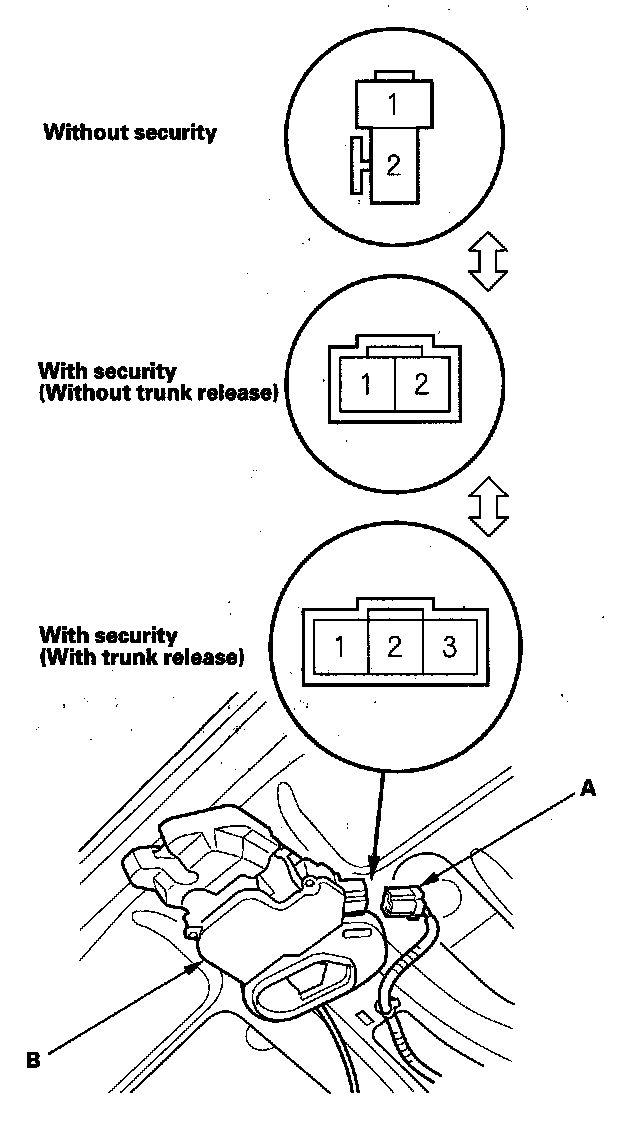

2. Disconnect the connector (A) from the trunk lid latch assembly (B).






3. Check for continuity between the No. 1 [No. 3] and No. 2 terminals.
[ ] : With trunk release

- There should be continuity with the trunk lid open.
- There should be no continuity with the trunk lid closed.

4. If the continuity is not as specified, replace the trunk lid latch assembly.
