Gauge Control Module Replacement
Gauge Control Module ReplacementTachometer
NOTE: Before replacing the gauge control model, do the "Rewriting the ODO Data and Transferring the Maintenance Minder Data to a New Gauge Control Module".
1. Remove the subdisplay visor assembly.

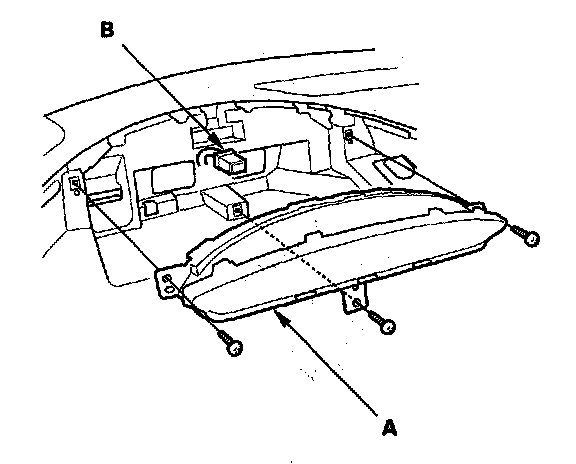

2. Remove the three screws from the gauge control module (tach) (A).
3. Disconnect the 36P connector (B) from the gauge control module (tach).
4. Install the gauge control module (tach) in the reverse order of removal.
Speedometer
1. Remove the instrument panel.

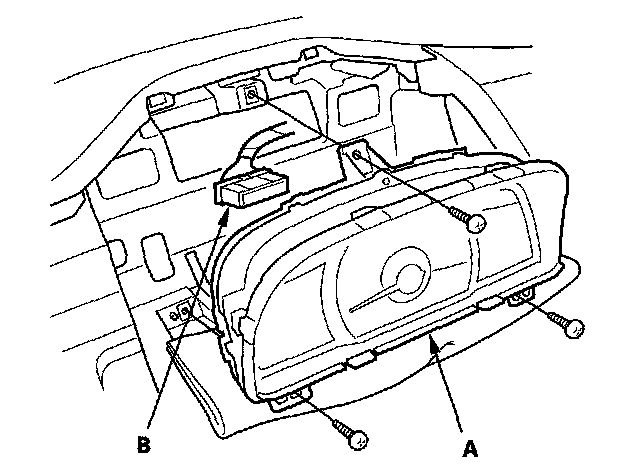

2. Remove the three screws from the gauge control module (speedo) (A).
3. Disconnect the 12P connector (B) from the gauge control module (speedo).
4. Install the gauge control module (speedo) in the reverse order of removal.
