Gauge Control Module (Speedo) Trim Removal/Installation

Gauge Control Module (Speedo) Trim Removal/Installation

Special Tools Required
KTC trim tool set SOJATP2014 *
* Available through the American Honda Tool and Equipment Program.

NOTE:
- Take care not to scratch the dashboard and related parts.
- Use the appropriate tool from the KTC trim tool set to avoid damage when prying components.

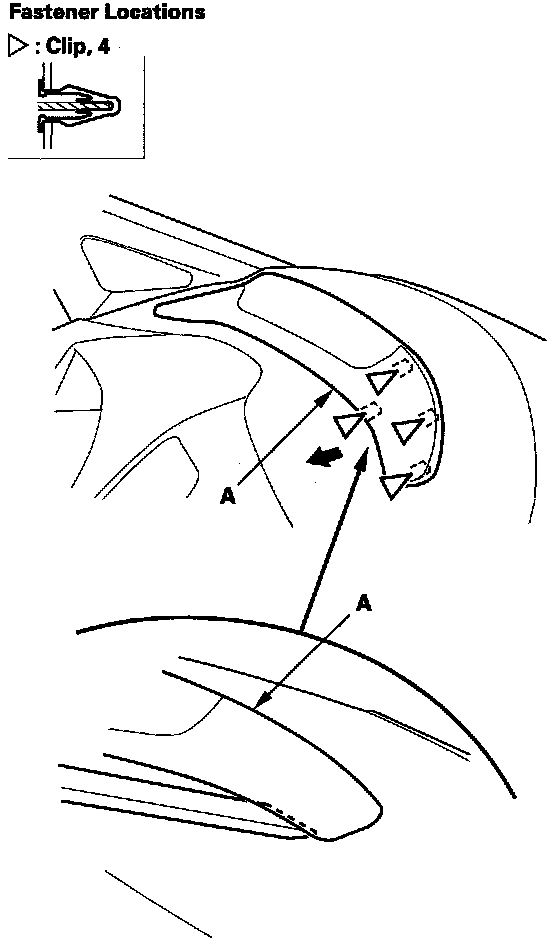

1. Pry up on the inside edge of the gauge control module (speedo) trim (A) with a trim tool to detach the clips.

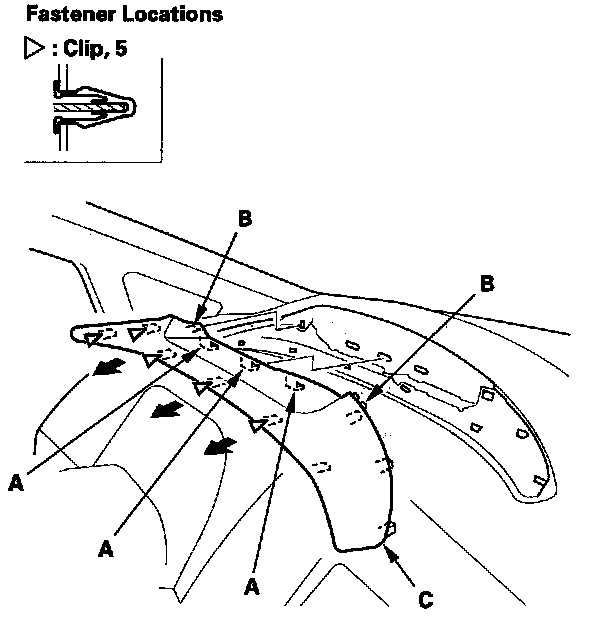

2. Detach the clips using a trim tool, and release the hooks (A) and pins (B) along the edge of the gauge control module (speedo) trim (C), then remove the trim.






3. Install the trim in the reverse order of removal, and note these items:
- Check if the clips are damaged or stress-whitened, and if necessary, replace them with new ones.
- Push the clips and hooks into place securely.
