Heating/Air Conditioning

General Troubleshooting Information

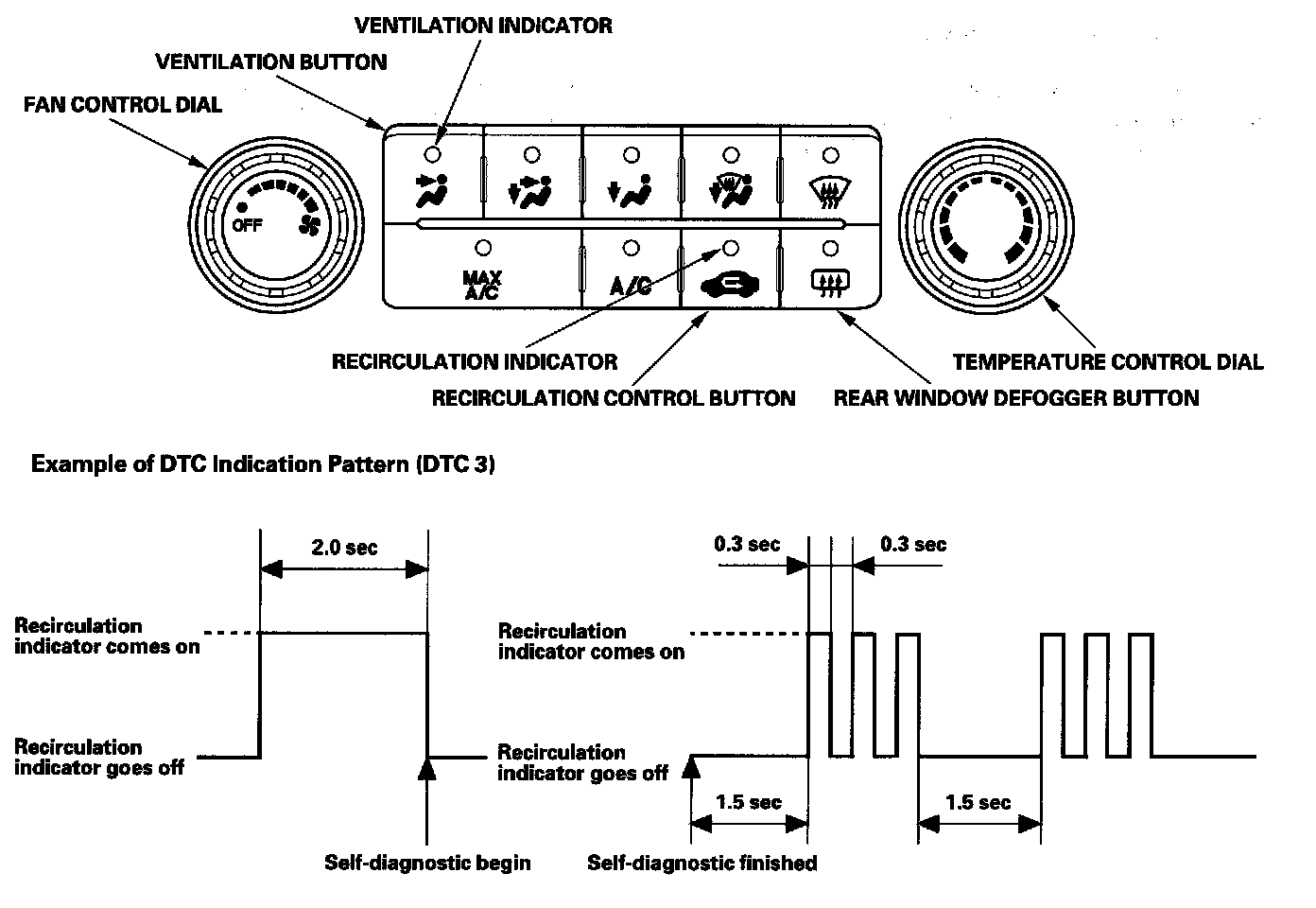

How to Use the Self-diagnostic Function

The HVAC control unit has a self-diagnostic function for heating, ventilation, and air conditioning system. To run the self-diagnostic function, do the following:

1. Turn the ignition switch to LOCK (0).
2. Press and hold the recirculation control and rear window defogger buttons, turn the ignition switch to ON (II).
3. Recirculation indicator turns on for 2 seconds, then self-diagnostic function begins.

NOTE:
- The blower motor will run at any speed regardless of the dial positioning.

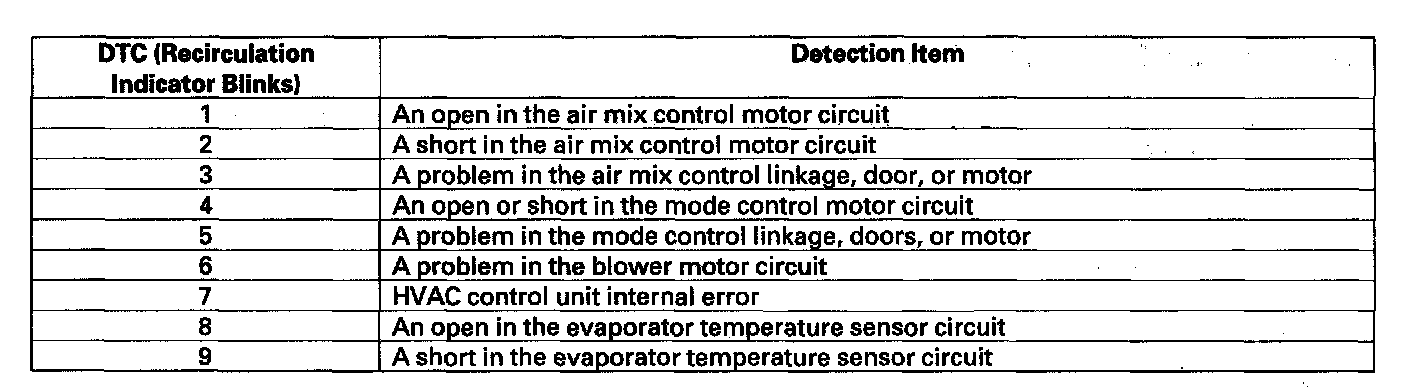

- In the case of multiple problems, the recirculation indicator will blink the lowest number DTC only.
- If no DTCs are found, the indicator will not blink.









Clear the DTCs

When the problem is repaired, DTCs will automatically clear.

Max Cool Position Function

When the mode control button is in the MAX A/C position, the HVAC control unit will automatically select the recirculation mode and turn the A/C on. If the recirculation switch is pressed when in MAX A/C, MAX A/C turns off. If A/C is pressed when in MAX A/C, the A/C turns off.
