Pinout Values and Diagnostic Parameters

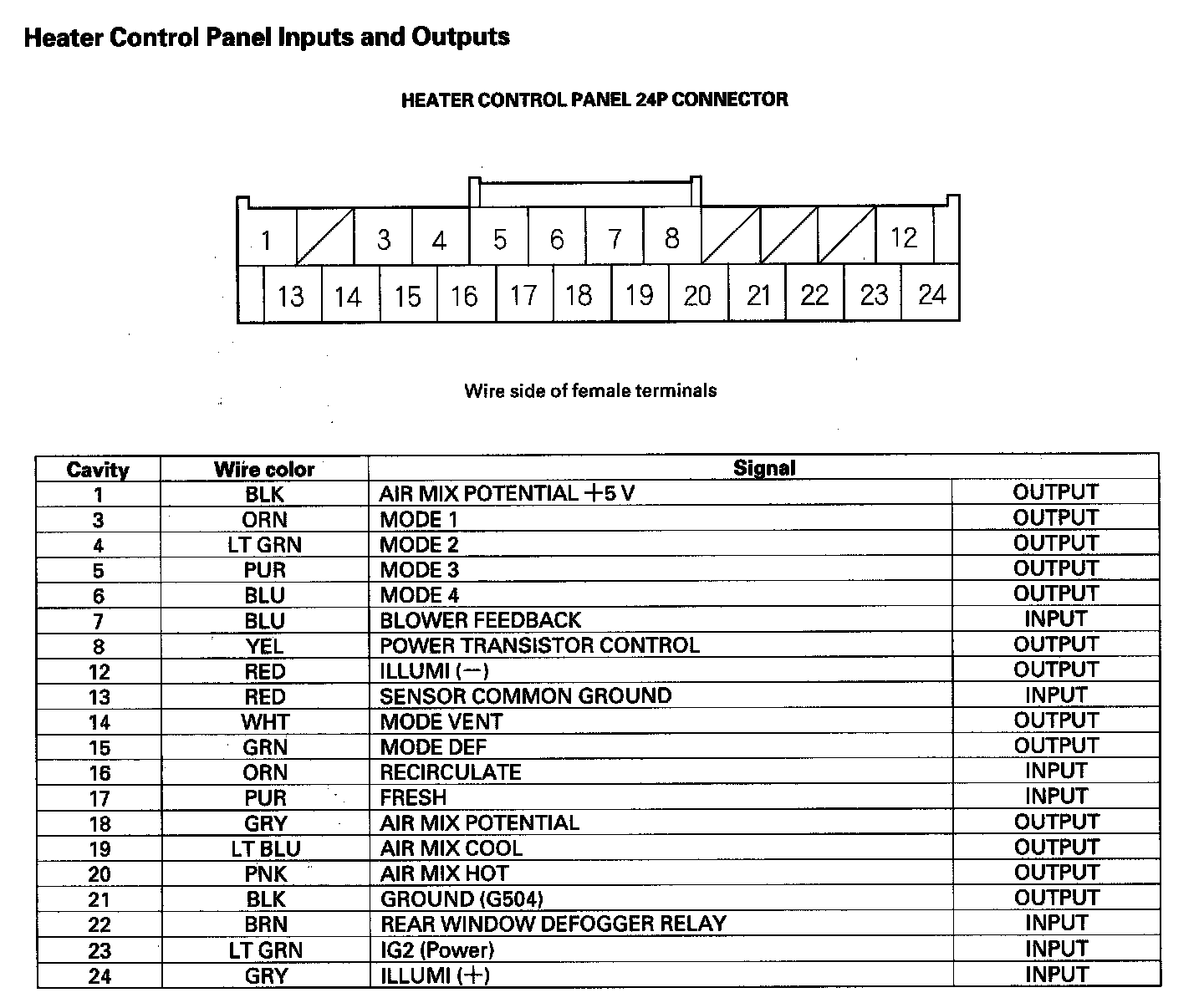

Heater Control Panel Inputs And Outputs:

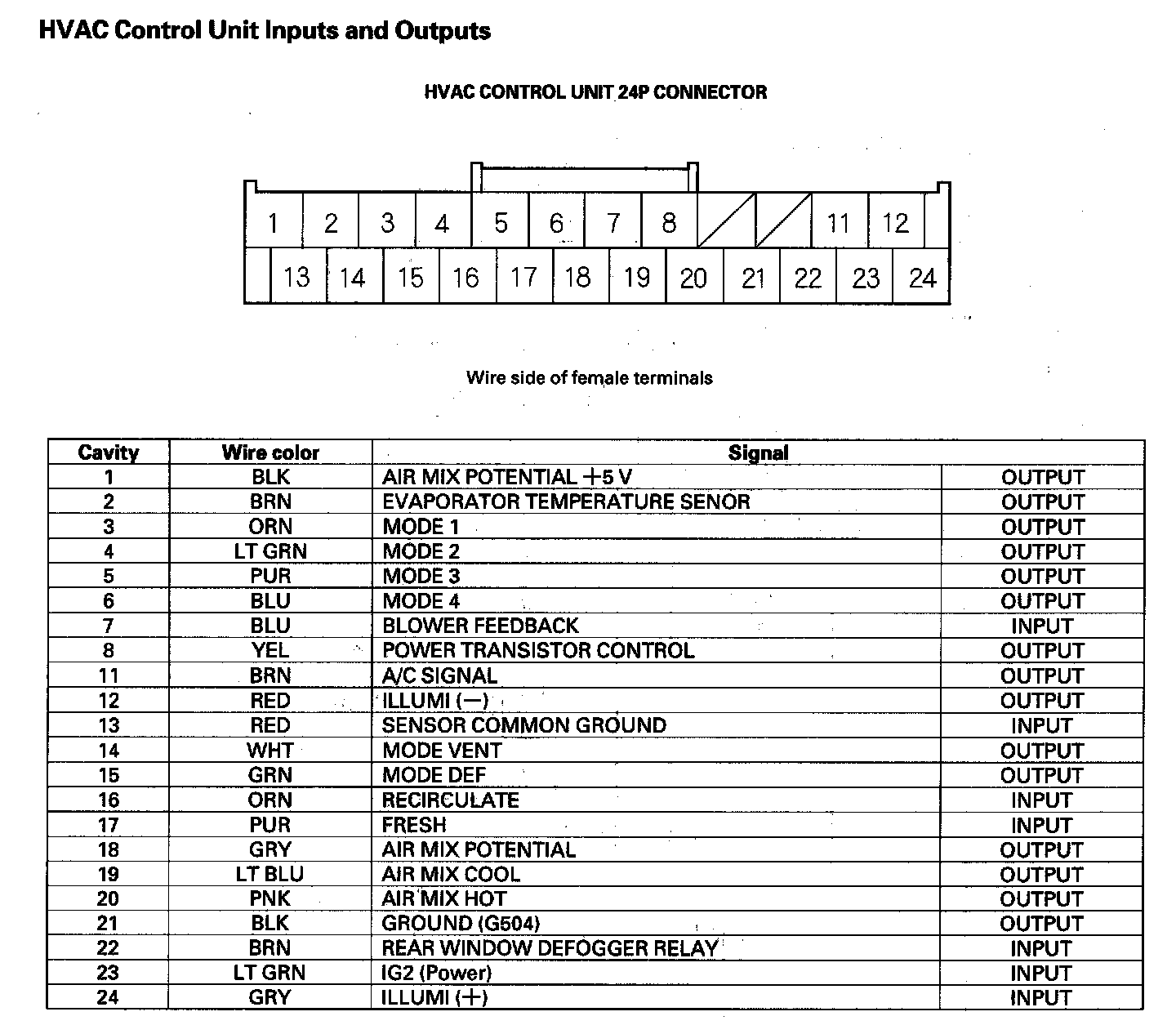

HVAC Control Unit Inputs And Outputs:
