A/C Compressor Clutch Circuit Troubleshooting
A/C Compressor Clutch Circuit TroubleshootingNOTE:
- It is normal for the A/C compressor to turn off under certain conditions, such as low idle, high engine coolant temperature, or hard acceleration.
- Do not use this troubleshooting procedure if the fans are also inoperative with the A/C on. Refer to the symptom troubleshooting index. Heating/Air Conditioning
- Before doing any symptom troubleshooting, check for powertrain DTCs.
1. Check the No. 20 (7.5 A) fuse in the under-hood fuse/relay box, and the No. 36 (10 A) fuse in the under-dash fuse/relay box.
Are the fuses OK?
YES - Go to step 2.
NO - Replace the fuses and recheck. If the fuses blow again, check for a short in the No. 20 (7.5 A) and No. 36 (10 A) fuses circuit.
2. Connect the HDS to the DLC.
3. Start the engine.
4. Turn on the A/C on the HVAC control unit.

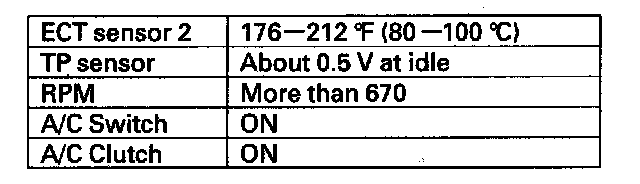

5. Using the HDS, confirm the following values in the PGM-FI Data List at idle.
Are all the values within specifications?
YES - Go to step 6.
NO - Troubleshoot the value that is not within the specifications.
6. Turn the ignition switch to LOCK (0).
7. Remove the A/C compressor clutch relay from the under-hood fuse/relay box, and test it.
Is the relay OK?
YES - Go to step 8.
NO - Replace the A/C compressor clutch relay.

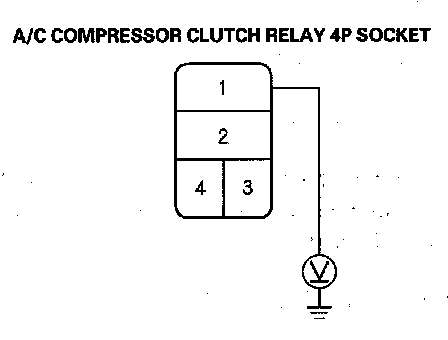

8. Measure the voltage between the A/C compressor clutch relay 4P socket No. 1 terminal and body ground.
Is there battery voltage?
YES - Go to step 9.
NO - Replace the under-hood fuse/relay box.

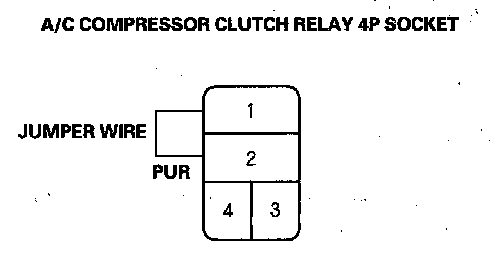

9. Connect the A/C compressor clutch relay 4P socket No. 1 and No. 2 terminals with a jumper wire.
Does the A/C compressor clutch click?
YES - Go to step 10.
NO - Go to step 19.
10. Disconnect the jumper wire.
11. Turn the ignition switch to ON (II).

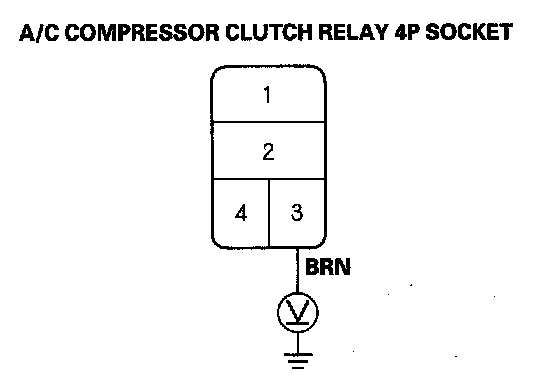

12. Measure the voltage between the A/C compressor clutch relay 4P socket No. 3 terminal and body ground.
Is there battery voltage?
YES - Go to step 13.
NO - Repair open in the wire between the No. 36 (10 A) fuse in the under-dash fuse/relay box and the A/C compressor clutch relay.
13. Turn the ignition switch to LOCK (0).
14. Reinstall the A/C compressor clutch relay.
15. Jump the SCS line with the HDS.
NOTE: This step must be done to protect the engine control module (ECM)/powertrain control module (PCM) from damage.
16. Disconnect ECM/PCM connector A (44P).

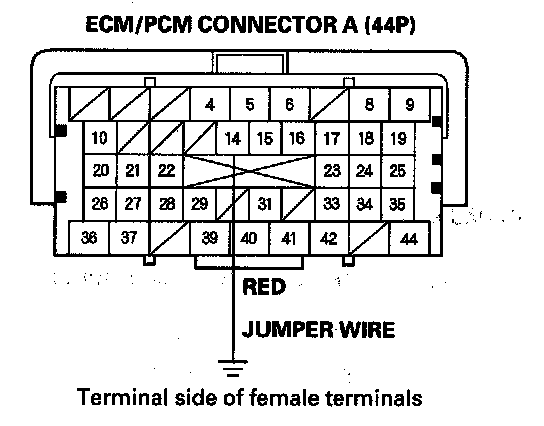

17. Connect the ECM/PCM connector A (44P) No. 14 terminal to body ground with a jumper wire.
18. Turn the ignition switch to ON (II).
Does the A/C compressor click?
YES - Check for loose wires or poor connections at ECM/PCM connector A (44P). If the connections are good, check the ECM/PCM grounds. If the grounds are good, substitute a known-good ECM/PCM, and recheck. If the symptom/indication goes away, replace the original ECM/PCM.
NO - Repair open in the wire between the A/C compressor clutch relay and the ECM/PCM.
19. Disconnect the jumper wire.
20. Disconnect the A/C compressor clutch 3P connector.

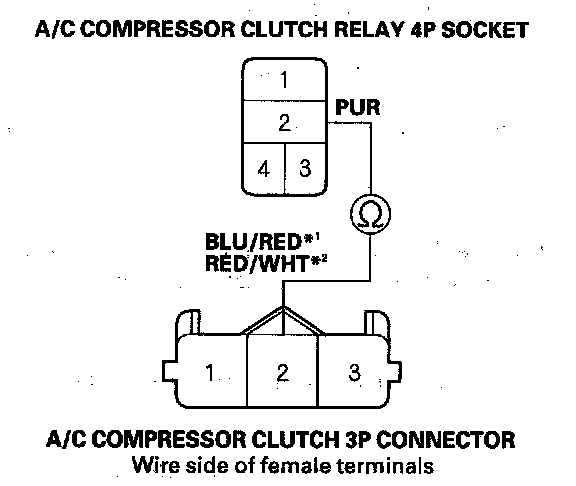

21. Check for continuity between the A/C compressor clutch relay 4P socket No. 2 terminal and the A/C compressor clutch 3P connector No. 2 terminal.
Is there continuity?
YES - Check the A/C compressor clutch clearance, and the compressor clutch field coil. Repair as needed.
NO - Repair open in the wire between the A/C compressor clutch relay and the A/C compressor clutch.
