Water Pump: Testing and Inspection
Water Pump Inspection
1.
Remove the
drive belt
.
2.

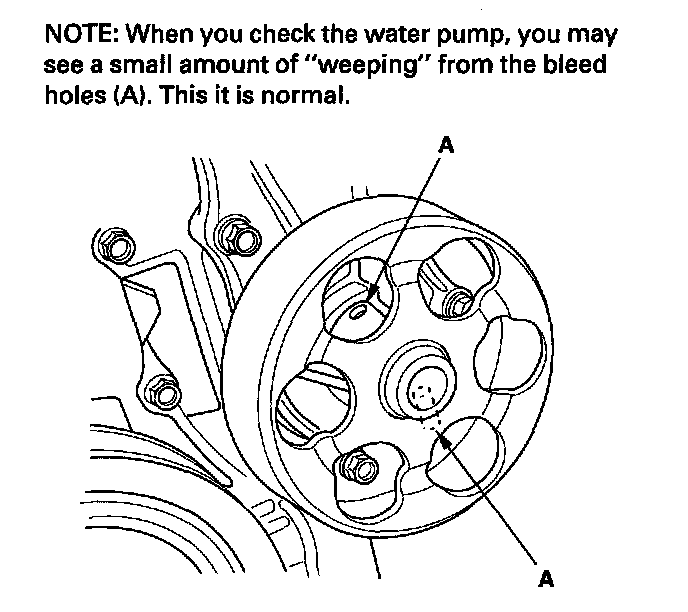

Turn the water pump pulley counterclockwise. Check that it turns freely. If it doesn't turn smoothly, replace the water pump.
3.
Install the
drive belt
.
