Connecting Rod Bolt Inspection

Connecting Rod Bolt Inspection

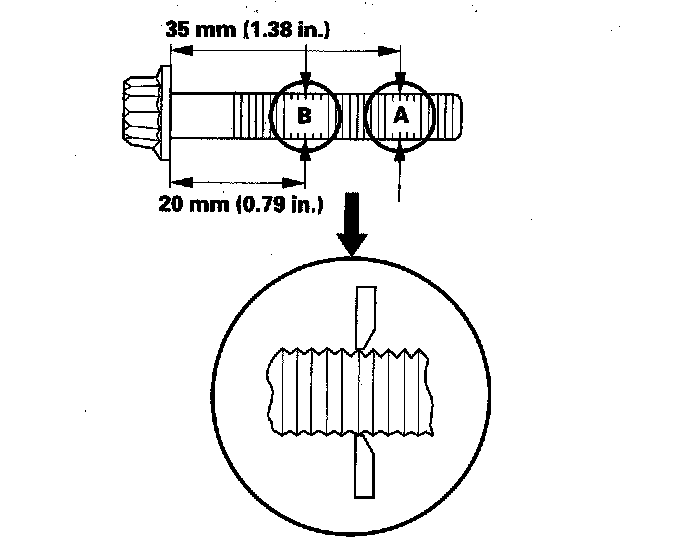

1. Measure the diameter of each connecting rod bolt at point A and point B.





2. Calculate the difference in diameter between point A and point B.

Point A-Point B = Difference in Diameter

Difference in Diameter:
Specification: 0 - 0.1 mm (0 - 0.004 in.)

3. If the difference in diameter is out of specification, replace the connecting rod bolt.
