Rear Window Defogger Ground Wire (2-Door Si Model)
Rear Window Defogger Ground Wire (2-Door Si Model)

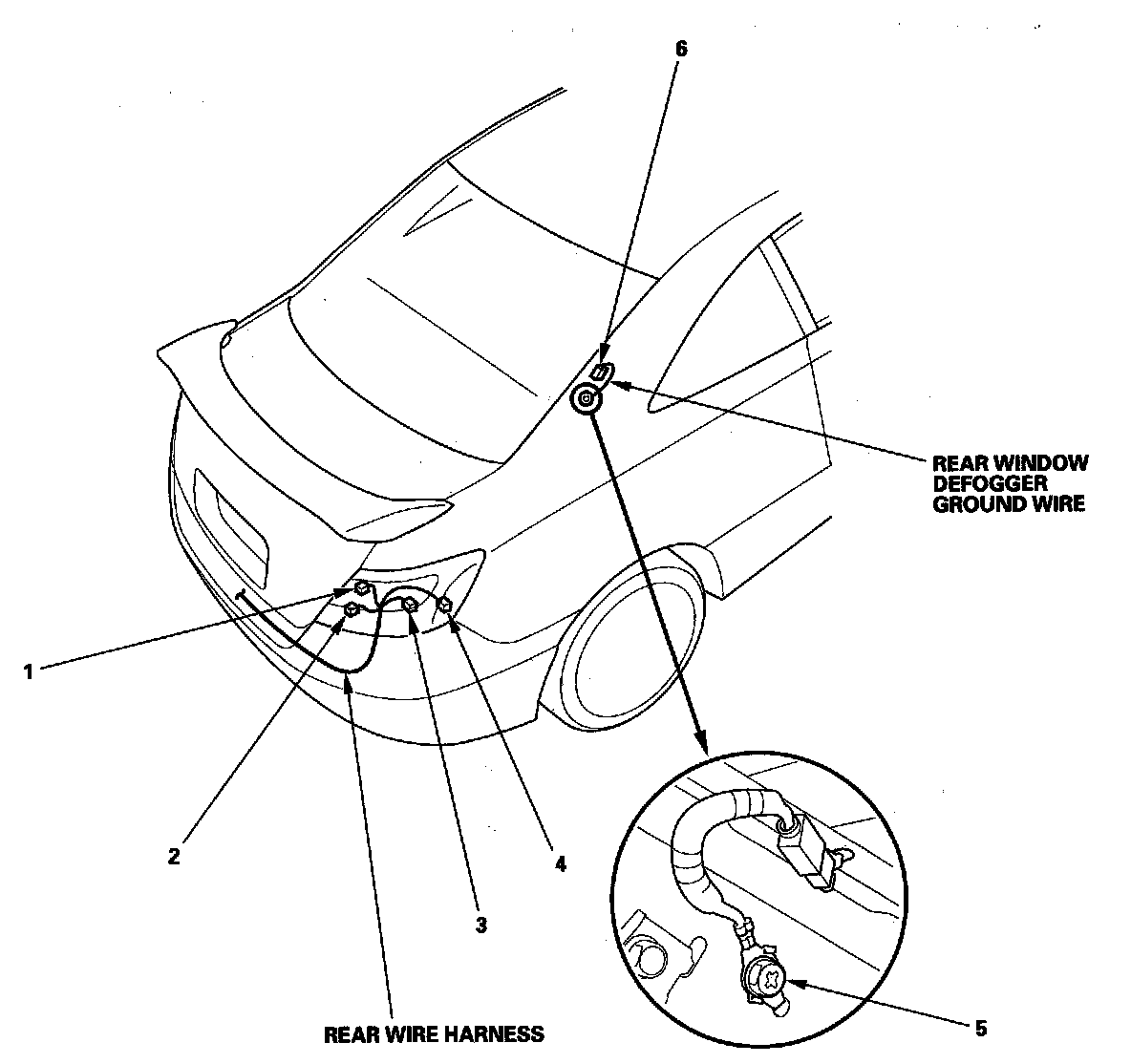

Harness Location View:

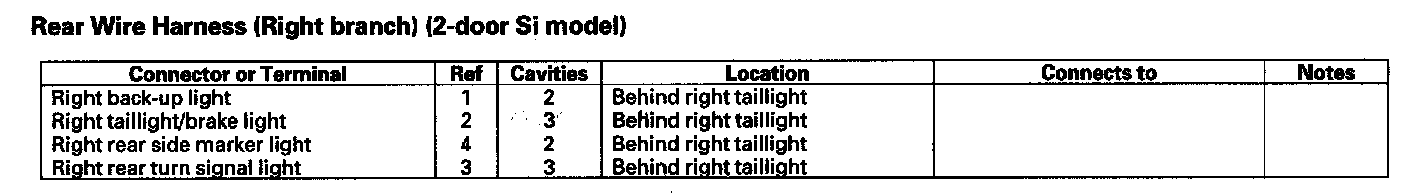

Rear Wire Harness (Right Branch) (2-door Si Model):
