Floor Wire Harness (Left Branch) (2-Door)

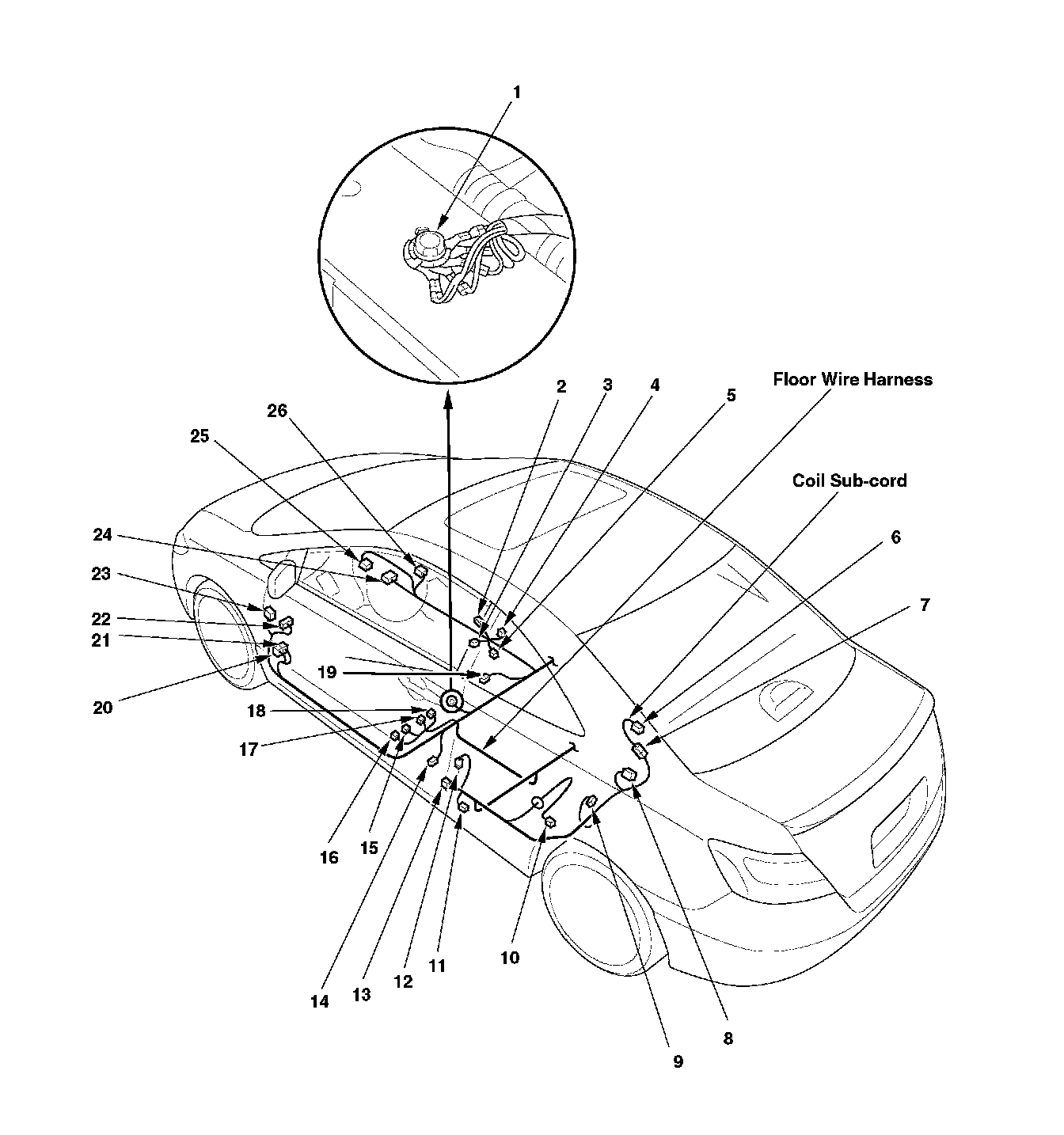

Harness Location View:

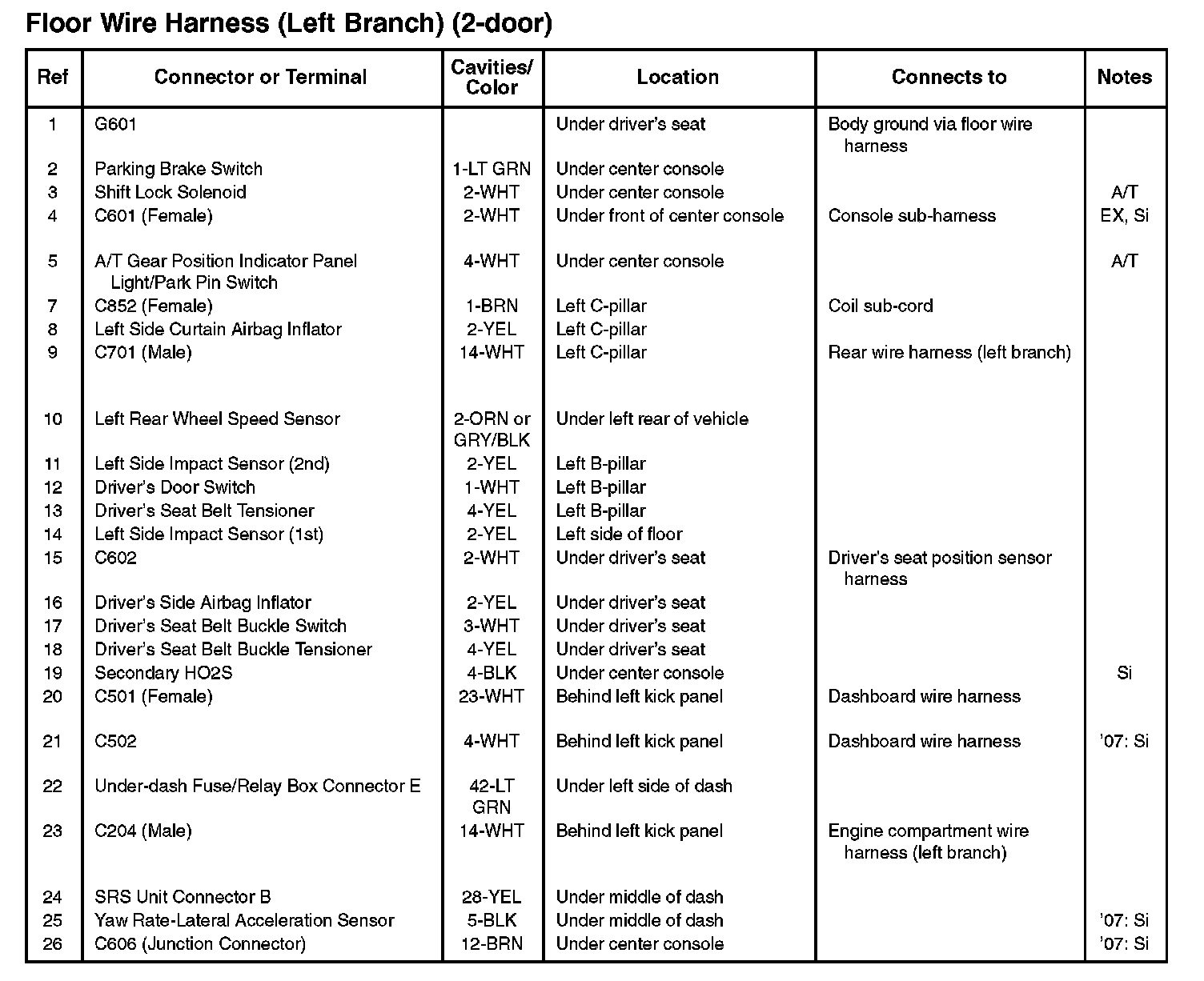

Floor Wire Harness (Left Branch) (2-door):



Harness Location View:



Floor Wire Harness (Left Branch) (2-door):
